F4AE0682C*C151

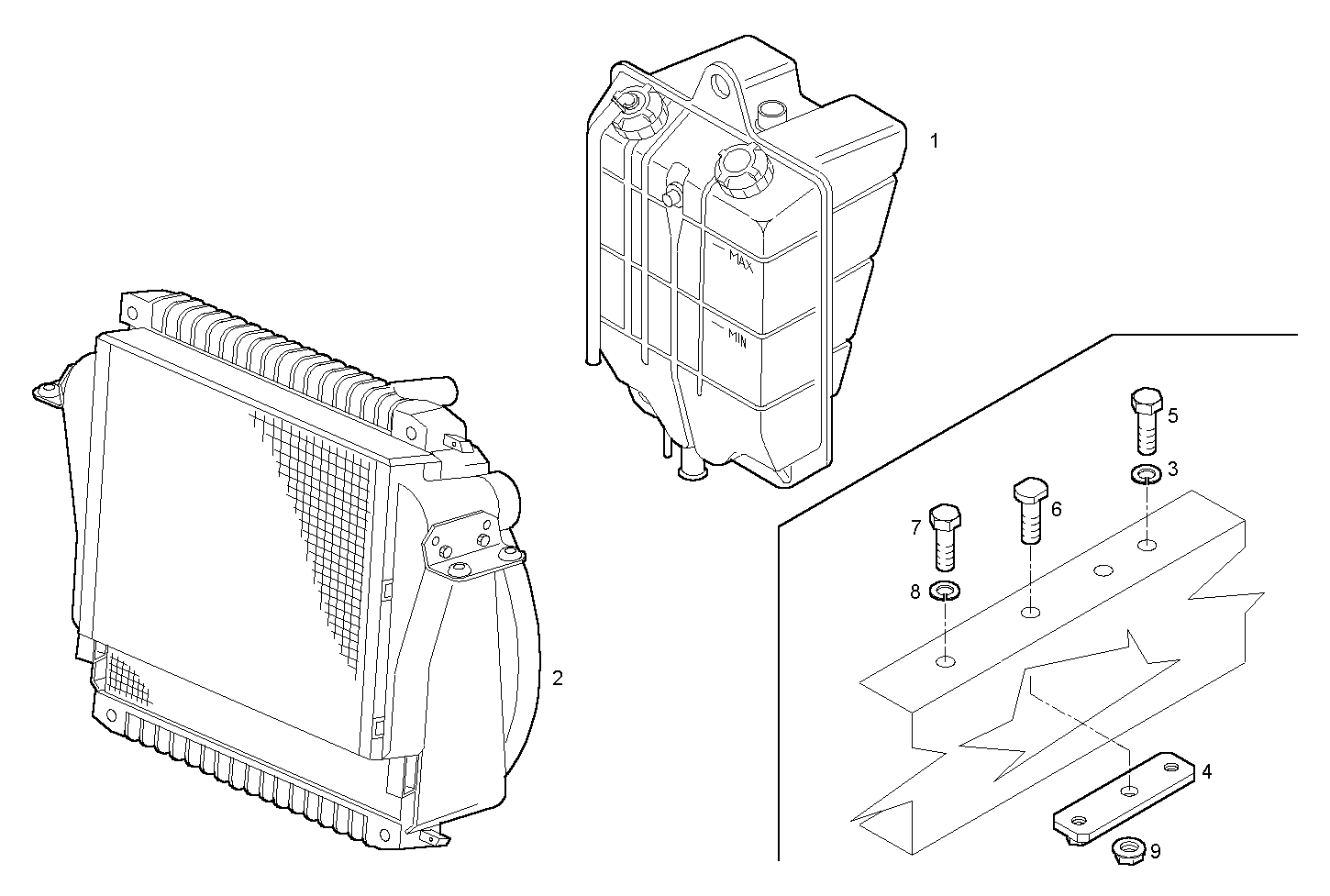

8600.101/01 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 98426670 | EXPANSION TANK ASSY |
| 2 | 500361625 | WATER RADIATOR |
| 3 | 500365203 | WASHER |
| 4 | 500364953 | CONNECTING PLATE |
| 5 | 16587624 | HEXAGON BOLT M10X50 MM |
| 6 | 5003672469 | HEXAGON BOLT |
| 7 | 16625434 | HEXAGON BOLT M8X20 MM |
| 8 | 17089574 | WASHER Ø8X16 MM |
| 9 | 16984331 | NUT M10 |
