F4AE0682D*C159

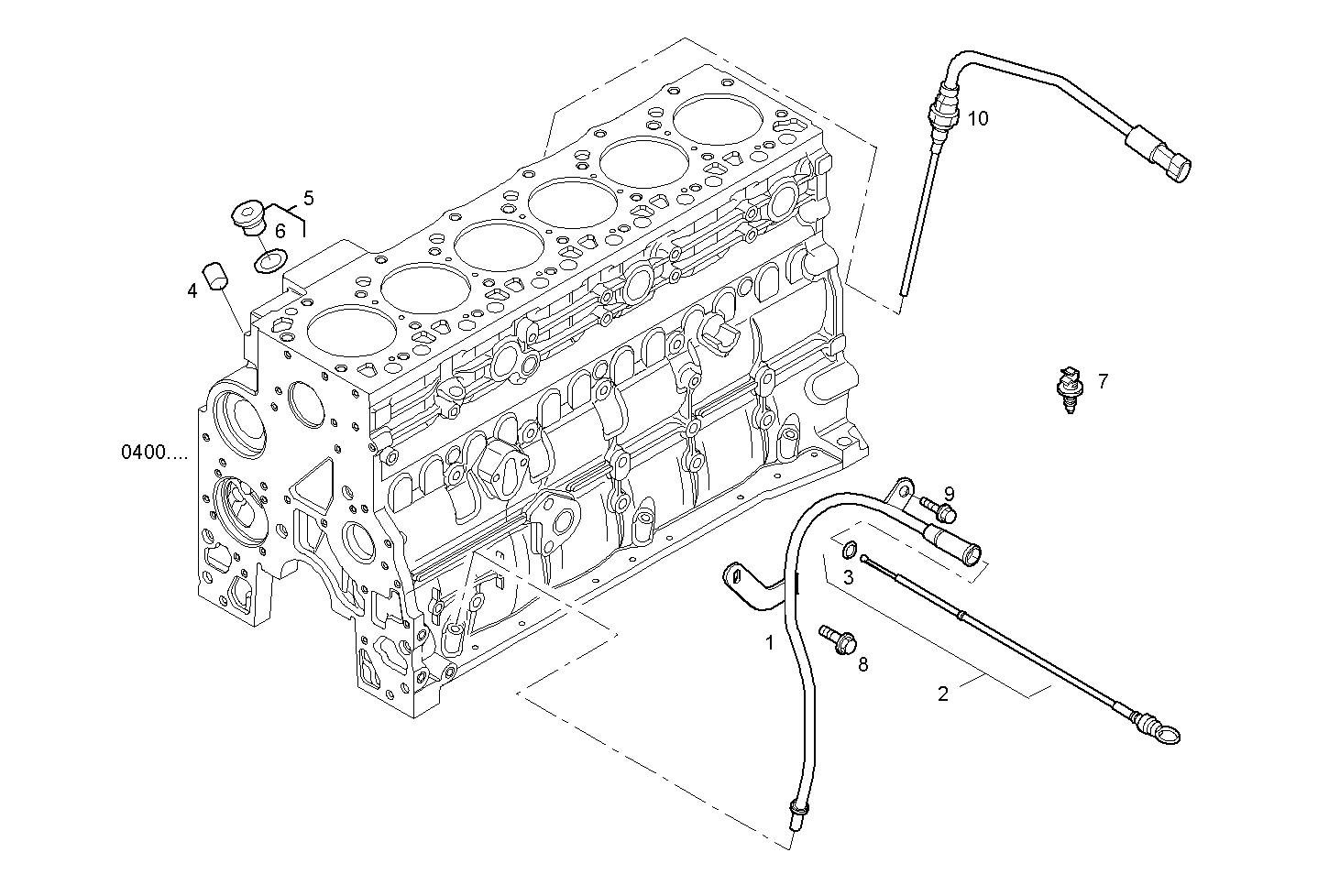

2710.204 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 504105862 | OIL LEVEL TUBE |
| 2 | 504106134 | OIL DIPSTICK |
| 3 | 4898502 | O-RING |
| 4 | 4899036 | PLUG |
| 5 | 4897330 | PLUG ASSY M12X1,5 |
| 6 | 4895610 | O-RING |
| 7 | 504063553 | SPRING CLAMP |
| 8 | 18139424 | HEXAGON BOLT M10X20 MM |
| 9 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 10 | 4897788 | SENSOR |
