F4AE0684B*D102

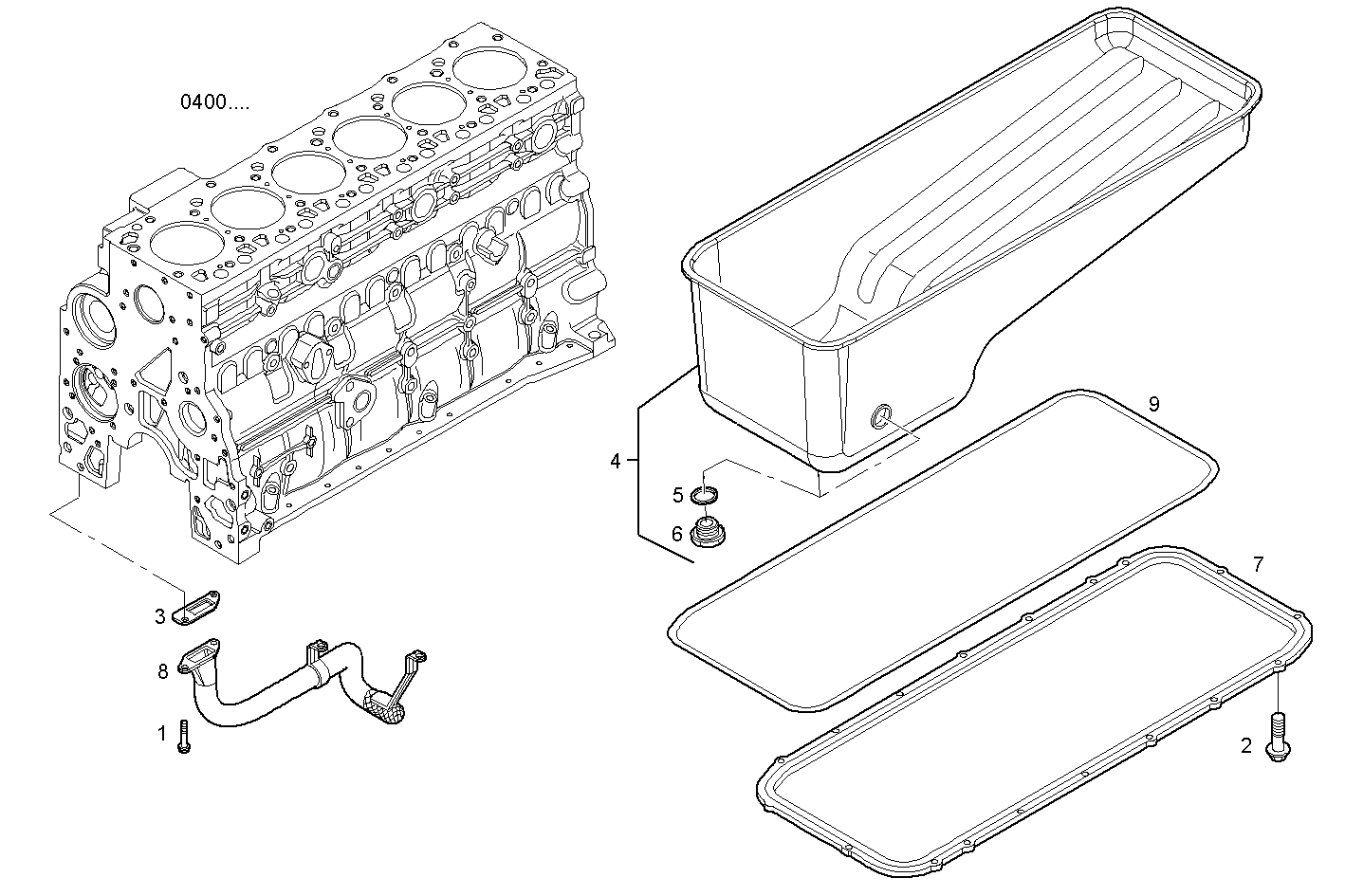

0420.172 OIL SUMP
Item | Part number | Description |
---|---|---|
1 | 16586325 | HEXAGON BOLT M8X20 MM |
2 | 4899091 | HEXAGON BOLT |
3 | 4898301 | FLAT ENGINE GASKET |
4 | 4898036 | OIL SUMP ASSY |
5 | 2830546 | WASHER |
6 | 4895577 | PLUG |
7 | 4897858 | SPACING BAR |
8 | 2830650 | SUCTION STRAINER |
9 | 4897861 | OIL SUMP GASKET |
