F4AE0684B*D102

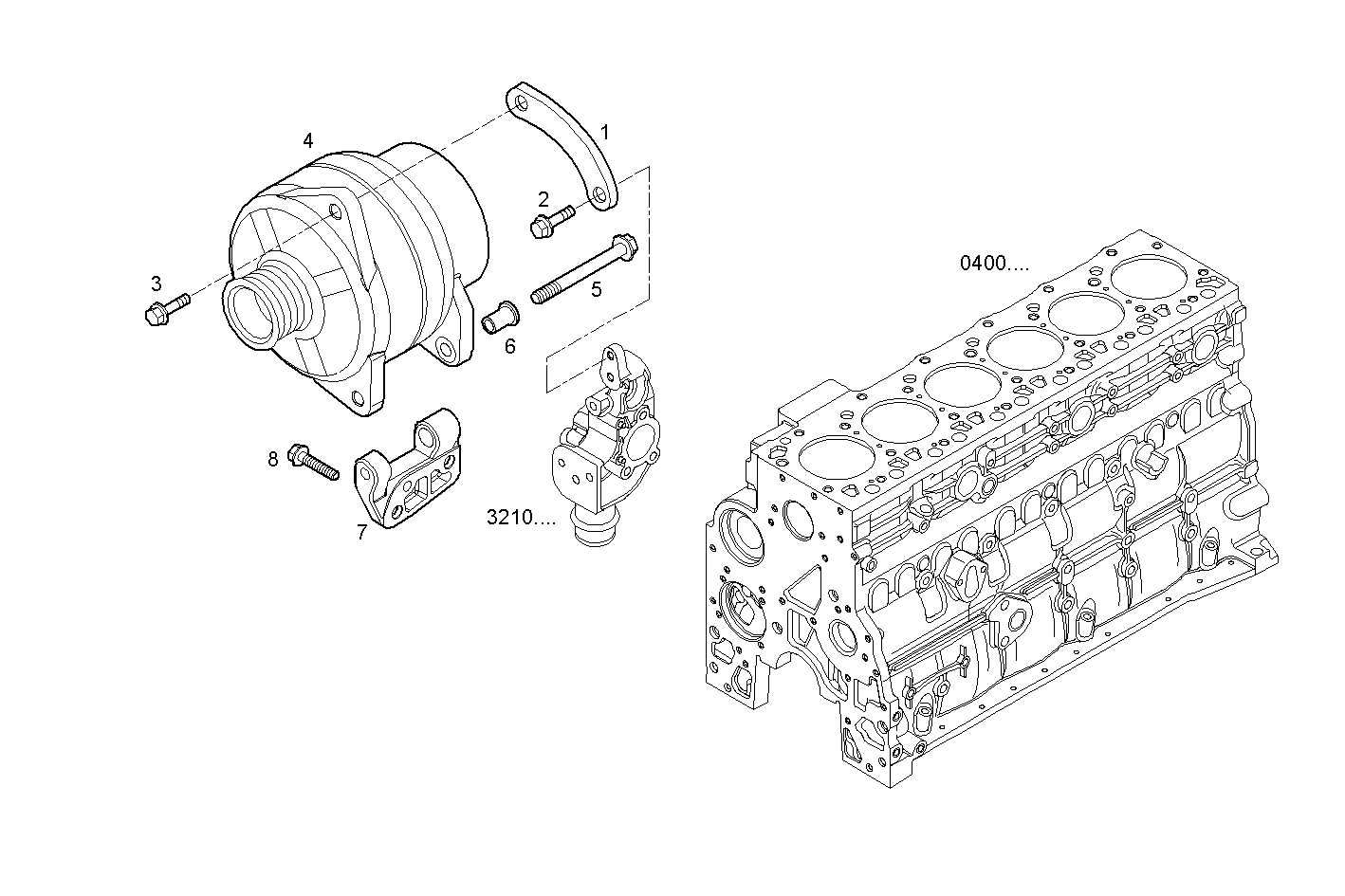

4000.141 GENERATOR
Item | Part number | Description |
---|---|---|
1 | 504073701 | RETAINER |
2 | 18139424 | HEXAGON BOLT M10X20 MM |
3 | 16586425 | HEXAGON BOLT M8X25 MM |
4 | 504075799 | ALTERNATOR |
5 | 16593124 | HEXAGON BOLT M10X100 MM |
6 | 504060839 | SPACING BAR |
7 | 504074091 | GENERATOR SUPPORT ASSY |
8 | 16586725 | HEXAGON BOLT M8X1.25X40 MM |
