F4AE0684E*D101

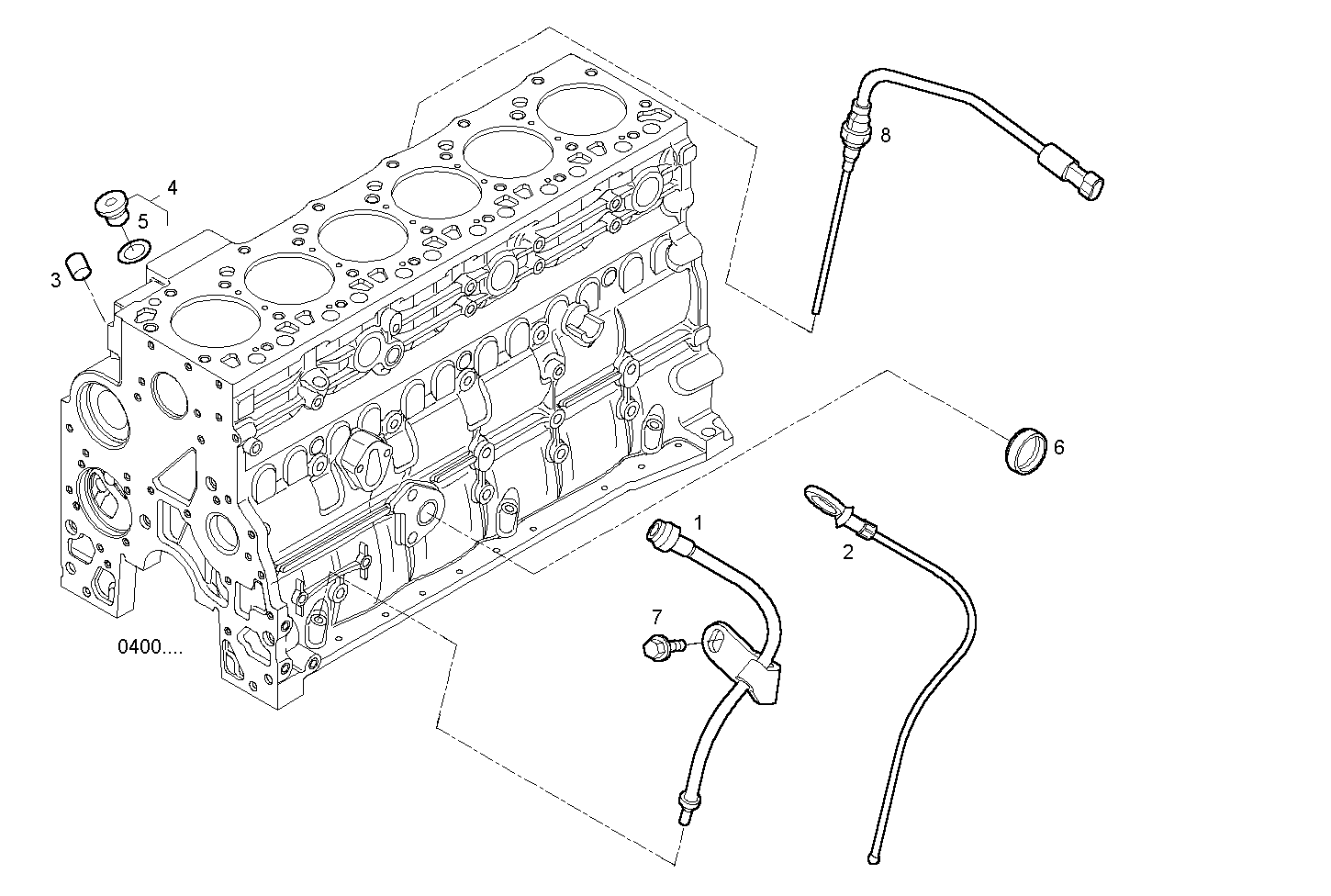

2710.116 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 504042298 | OIL LEVEL TUBE |
| 2 | 504042299 | OIL DIPSTICK |
| 3 | 4899036 | PLUG |
| 4 | 4897330 | PLUG ASSY M12X1,5 |
| 5 | 4895610 | O-RING |
| 6 | 4895037 | PLUG |
| 7 | 16677734 | HEXAGON BOLT M12X25 MM |
| 8 | 504042300 | SENSOR |
