F4AE0684H*D101

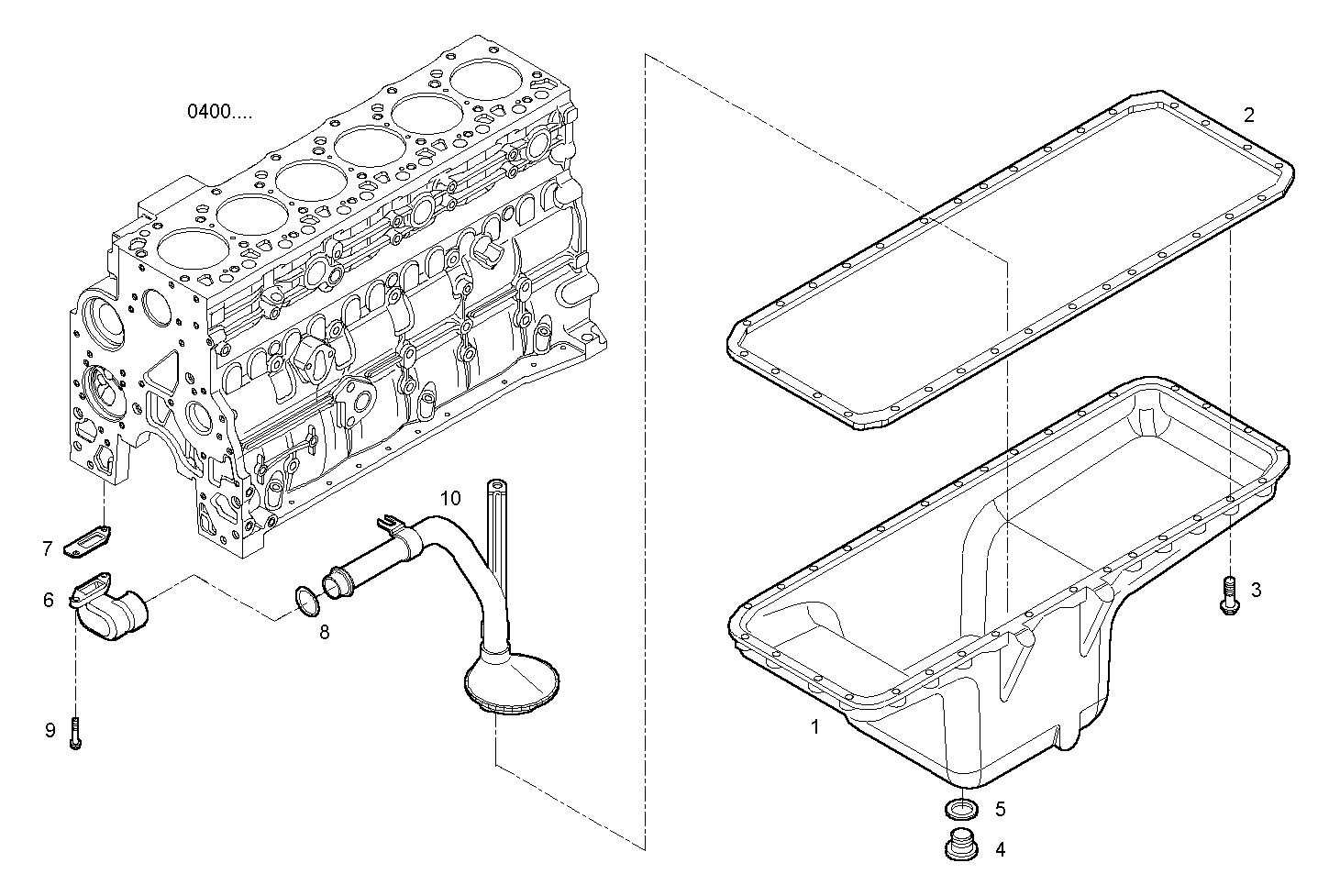

0420.162 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504042274 | OIL SUMP |
| 2 | 504027340 | OIL SUMP GASKET |
| 3 | 16673934 | HEXAGON BOLT M8X35 MM |
| 4 | 4894139 | THREADED PLUG M22X1,5 |
| 5 | 4895584 | O-RING |
| 6 | 500389883 | INTAKE ELBOW |
| 7 | 4898301 | FLAT ENGINE GASKET |
| 8 | 17282381 | O-RING Ø25,07 MM SP=2,62 MM |
| 9 | 16673734 | HEXAGON BOLT M8X25 MM |
| 10 | 504042287 | SUCTION STRAINER |
