F4AE0684H*D101

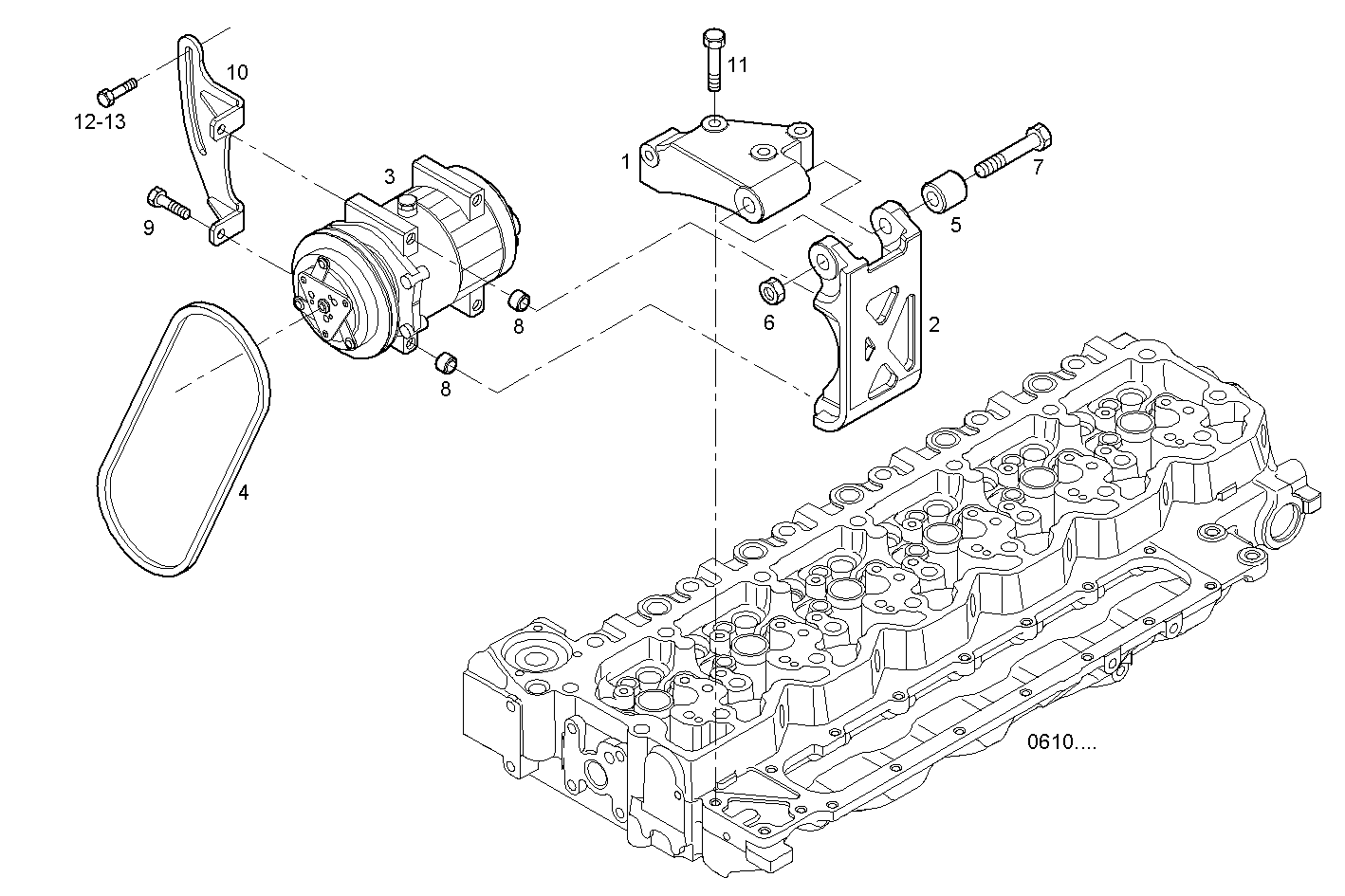

3900.008 COMPRESSOR AIR CONDITIONING

Iveco/FPT COMPRESSOR AIR CONDITIONING

Item Part number Description
1 500387902 SUPPORT
2 500387643 SUPPORT
3 500388059 AIR COND.COMPRESS.
4 99466947 V-BELT
5 98433179 SPACING BAR
6 17044921 HEXAGON NUT M12
7 16599724 HEXAGON BOLT M12X130 MM
8 4895227 DOWEL PIN
9 504056183 HEXAGON BOLT M8x1.25x105 MM
10 500387903 TENSIONER
11 4899144 HEXAGON BOLT M10X1,5X50 MM
12 4899147 HEXAGON BOLT
13 16673635 HEXAGON BOLT M8X1.25X20
