F4AE0684J*D

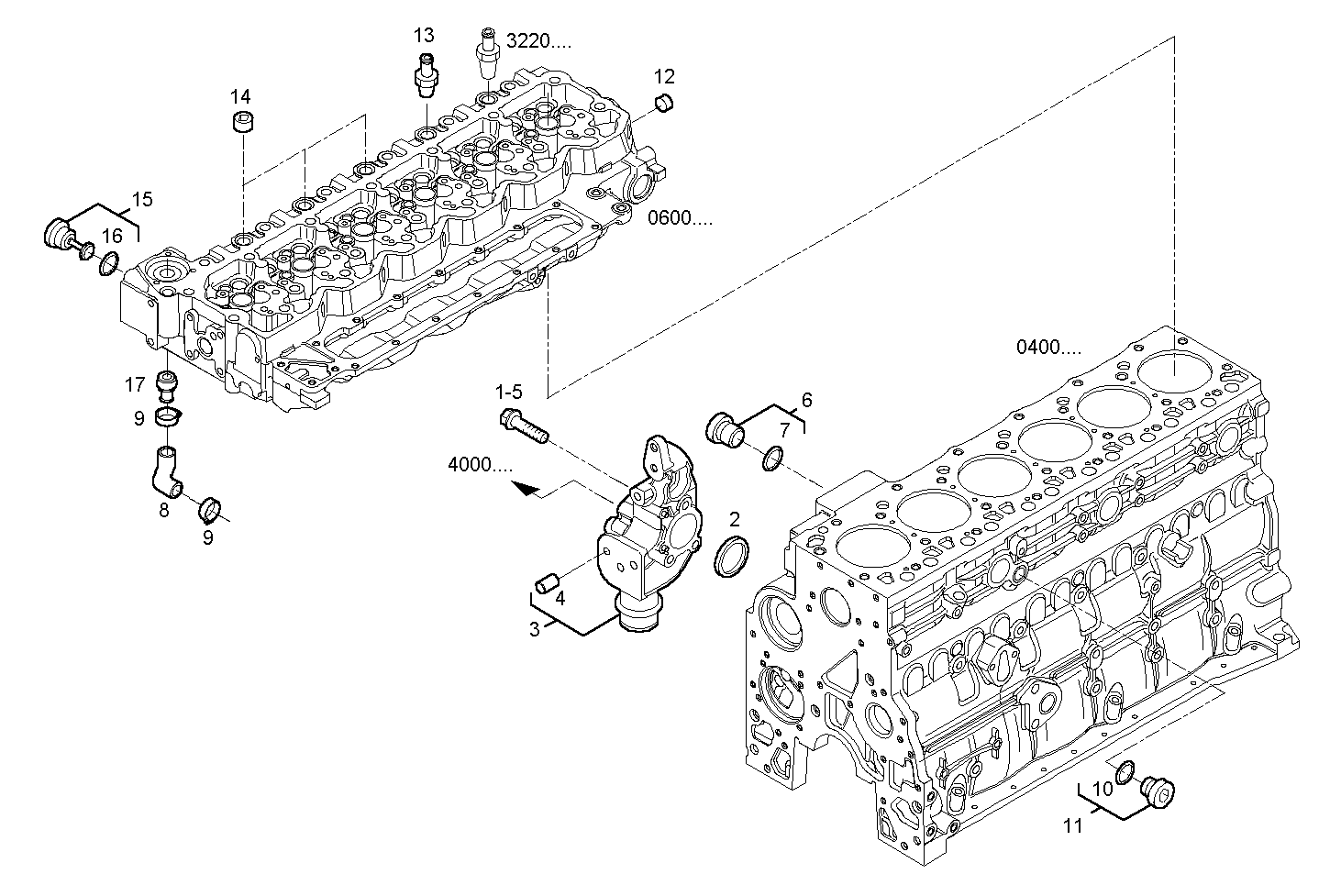

3210.240 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4895292 | HEXAGON BOLT M10X1,5X70 MM |
| 2 | 4895121 | WASHER |
| 3 | 4892347 | GENERATOR SUPPORT ASSY |
| 4 | 4895576 | DOWEL PIN |
| 5 | 16599124 | HEXAGON BOLT M10X130 MM |
| 6 | 4895392 | THREADED PLUG ASSY M18X1,5 |
| 7 | 4895393 | O-RING |
| 8 | 504042374 | RUBBER SLEEVE |
| 9 | 4895145 | CLIP |
| 10 | 4895625 | O-RING |
| 11 | 4895623 | THREADED PLUG M16X1,5 MM ASSY |
| 12 | 4895079 | THREADED PLUG |
| 13 | 4896924 | SCREW CONNECTOR |
| 14 | 4895078 | THREADED PLUG |
| 15 | 4897352 | THREADED PLUG ASSY |
| 16 | 4895082 | O-RING |
| 17 | 504042373 | THREADED UNION |
