F4AE0686C*E100

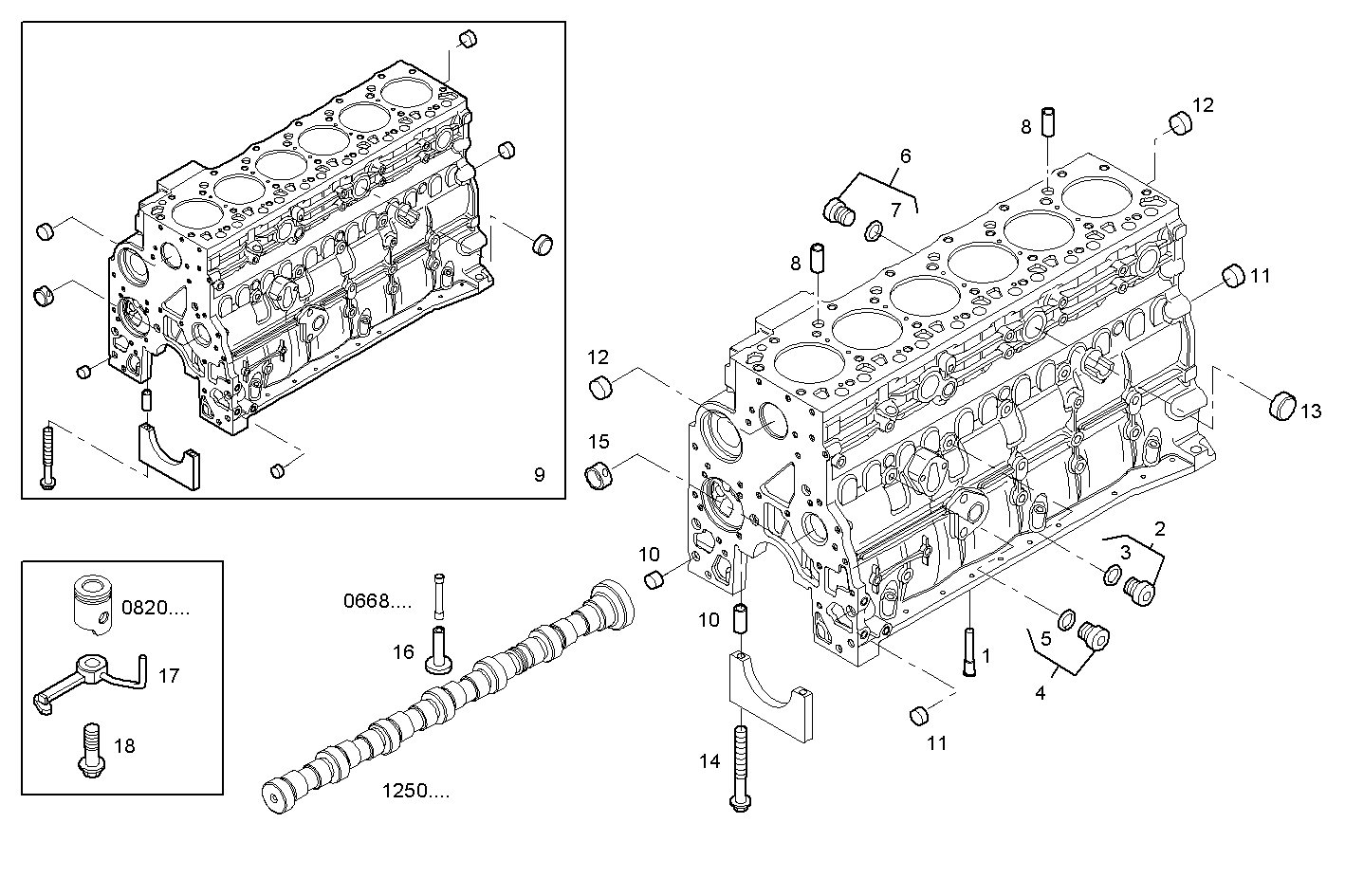

0401.006 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 4896153 PLASTIC PLUG
2 4895605 PLUG ASSY M14X1,5
3 4899115 O-RING
4 4899009 THREADED PLUG ASSY M10X1
5 4899072 O-RING
6 4895392 THREADED PLUG ASSY M18X1,5
7 4895393 O-RING
8 4895049 DOWEL PIN
9 4897335 CRANKCASE ASSY
10 4899026 DOWEL PIN
11 4895039 PLUG Ø17 MM
12 4895038 PLUG Ø58 MM
13 4895228 PLUG Ø35 MM
14 4891353 HEXAGON BOLT M12X120 MM
15 4895040 CAMSHAFT BEARING
16 4899803 TAPPET
17 504054307 OIL NOZZLE ASSY
18 4894218 SCREW CONNECTOR M8X1.25
