F4AE0686C*E100

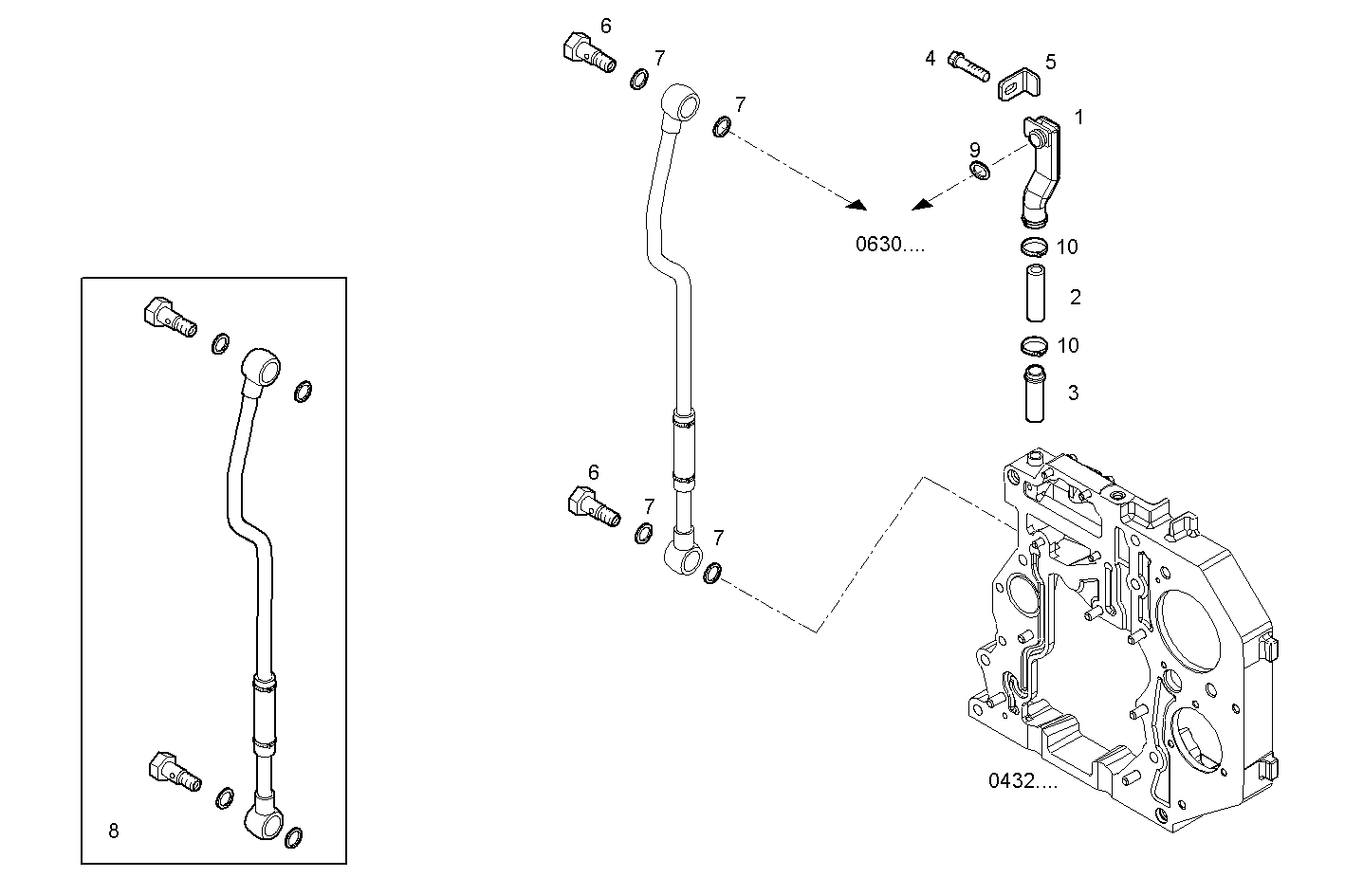

0450.185 ENGINE BREATHERS
Item | Part number | Description |
---|---|---|
1 | 4897534 | BREATHER PIPE M10X1,5X80 MM |
2 | 4897546 | RUBBER SLEEVE |
3 | 4897547 | CONNECTOR SLEEVE |
4 | 4897537 | HEXAGON BOLT |
5 | 4897536 | RETAINER |
6 | 16511214 | SCREW CONNECTOR M12X1,5X30 MM |
7 | 4899926 | SEAL GASKET Ø12X18 MM SP=1,5 MM |
8 | 4899219 | BREATHER PIPE ASSY |
9 | 17282081 | O-RING Ø20,2 MM SP=2,62 MM |
10 | 4893234 | CLIP |
