F4AE0686C*E100
1405.005 HYDRAUL. ACCUMULATOR

Iveco/FPT  HYDRAUL. ACCUMULATOR

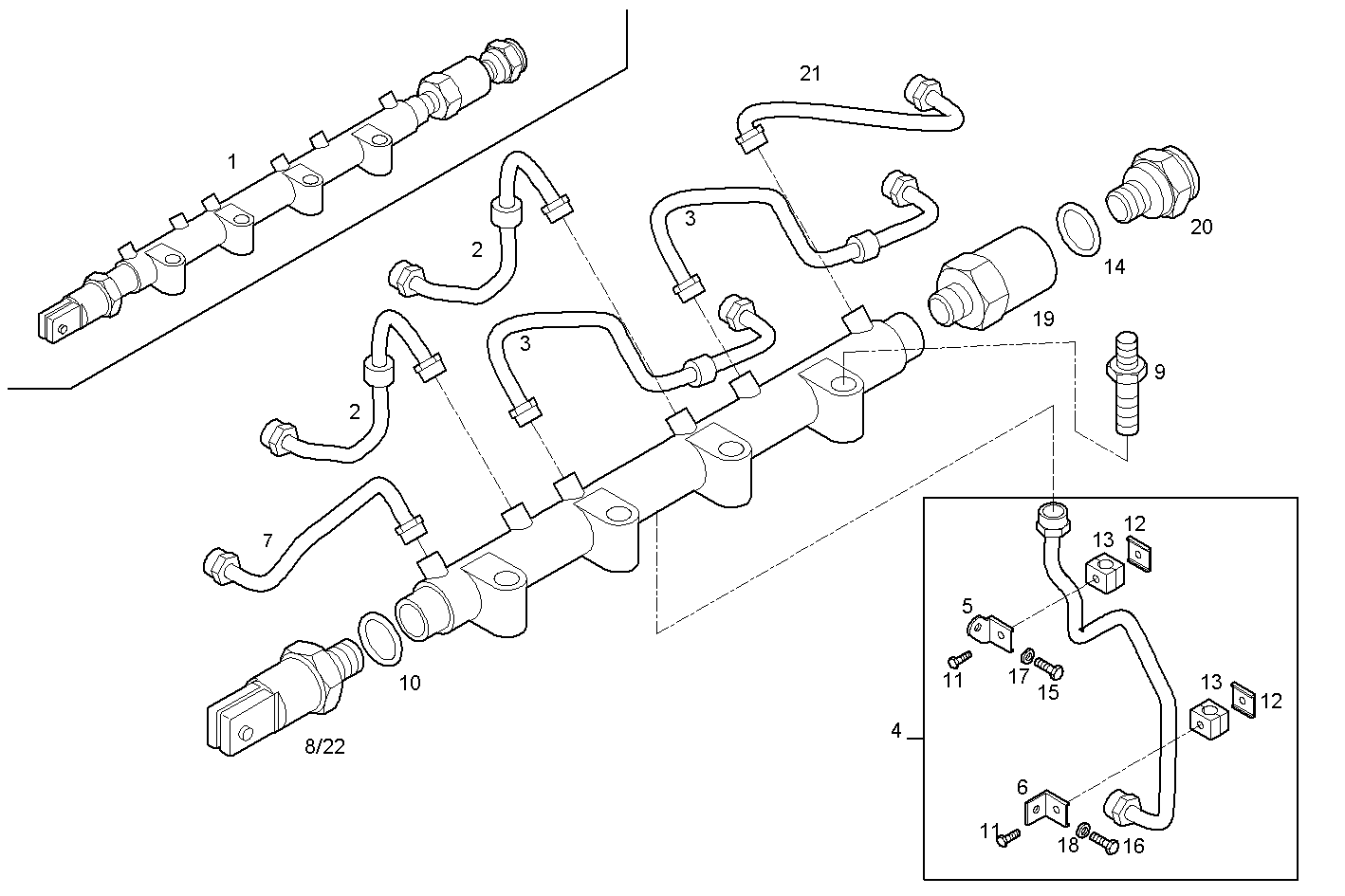

Item Part number Description
1 4899320 HYDRAULIC CYLINDER ASSY
2 2830620 INJECTION LINE
3 2830621 INJECTION LINE
4 8032109 INJECTION LINE ASSY
5 8032120 RETAINER
6 8032121 RETAINER
7 4899308 FUEL LINE
8 4897501 SENSOR ASSY [UP TO: 189668]
9 504053874 HEXAGON BOLT
10 500372236 WASHER
11 4895310 HEXAGON BOLT
12 4894679 BRACKET
13 4894674 RUBBER PAD
14 16508360 WASHER 18x22x1,5
15 16609824 HEXAGON BOLT M12X1,75X25 MM
16 16619124 SCREW M10X22 MM
17 17090074 SPRING WASHER Ø10X20X1,9 MM
18 17090974 SPRING WASHER Ø12X24 MM
19 4899804 VALVE
20 4899828 THREADED UNION
21 4899314 FUEL LINE
22 2831362 SENSOR [FROM # 189669]
