F4AE0686C*E100

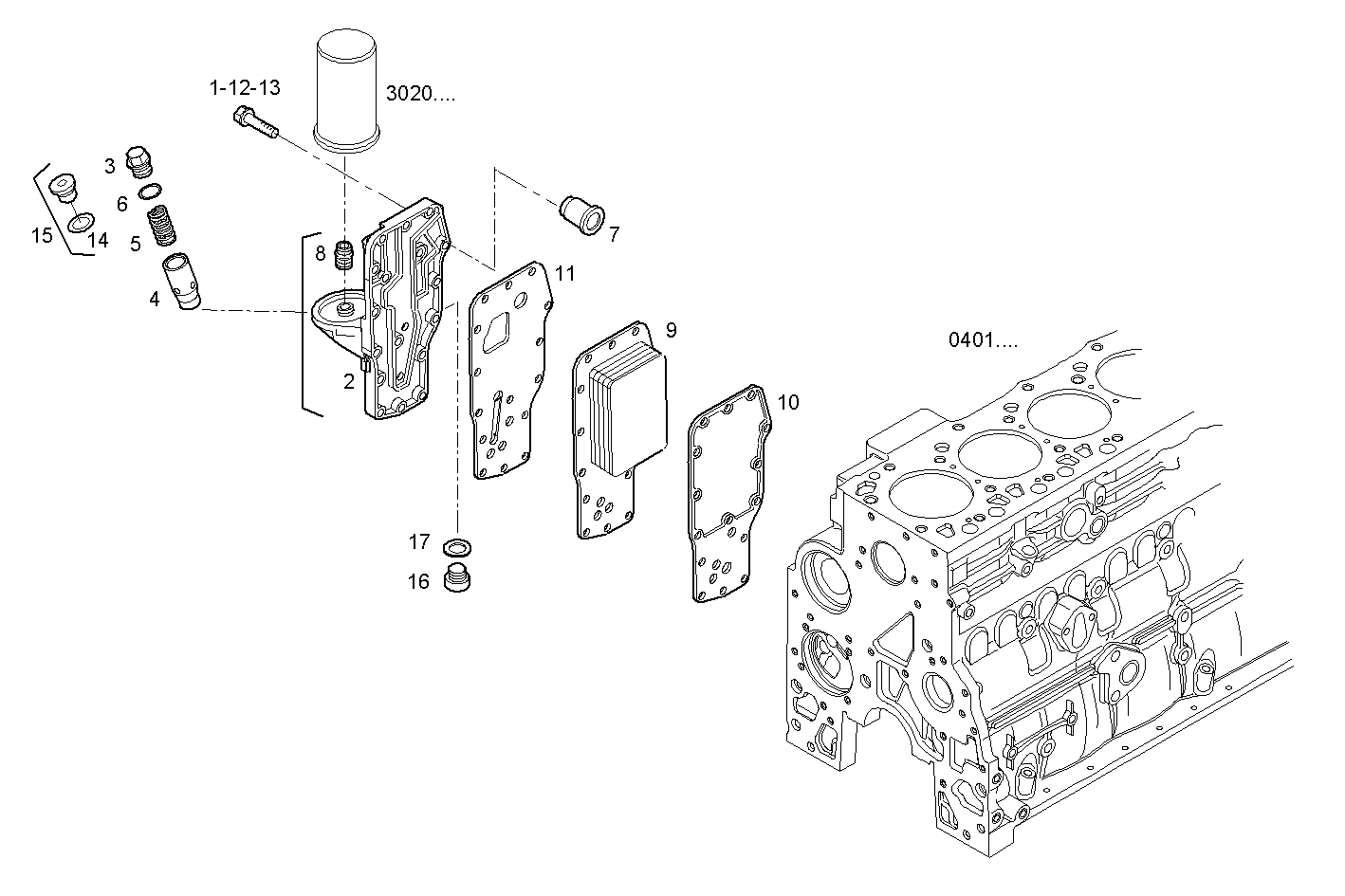

3150.001 OIL - WATER HEAT EXCHANGER [FROM # 213041] [FROM # 213041]
| Item | Part number | Description |
|---|---|---|
| 1 | 16586621 | HEXAGON BOLT M8X35MM |
| 2 | 8032916 | HEAT EXANGER BODY ASSY |
| 3 | 4895043 | THREADED PLUG |
| 4 | 4896404 | VALVE HOUSING |
| 5 | 4895045 | VALVE SPRING |
| 6 | 4899035 | O-RING |
| 7 | 4896410 | VALVE |
| 8 | 4893391 | THREADED UNION |
| 9 | 4896819 | OIL COOLER |
| 10 | 4896408 | FLAT ENGINE GASKET |
| 11 | 4896409 | FLAT ENGINE GASKET |
| 12 | 16598521 | SCREW M8X120MM |
| 13 | 16586921 | HEXAGON BOLT M8X50MM |
| 14 | 17916280 | O-RING [FROM # 155900] |
| 15 | 504096409 | THREADED PLUG ASSY [FROM # 155900] |
| 16 | 16992211 | THREADED PLUG M12X1,5 |
| 17 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
