F4AE0687A*B100

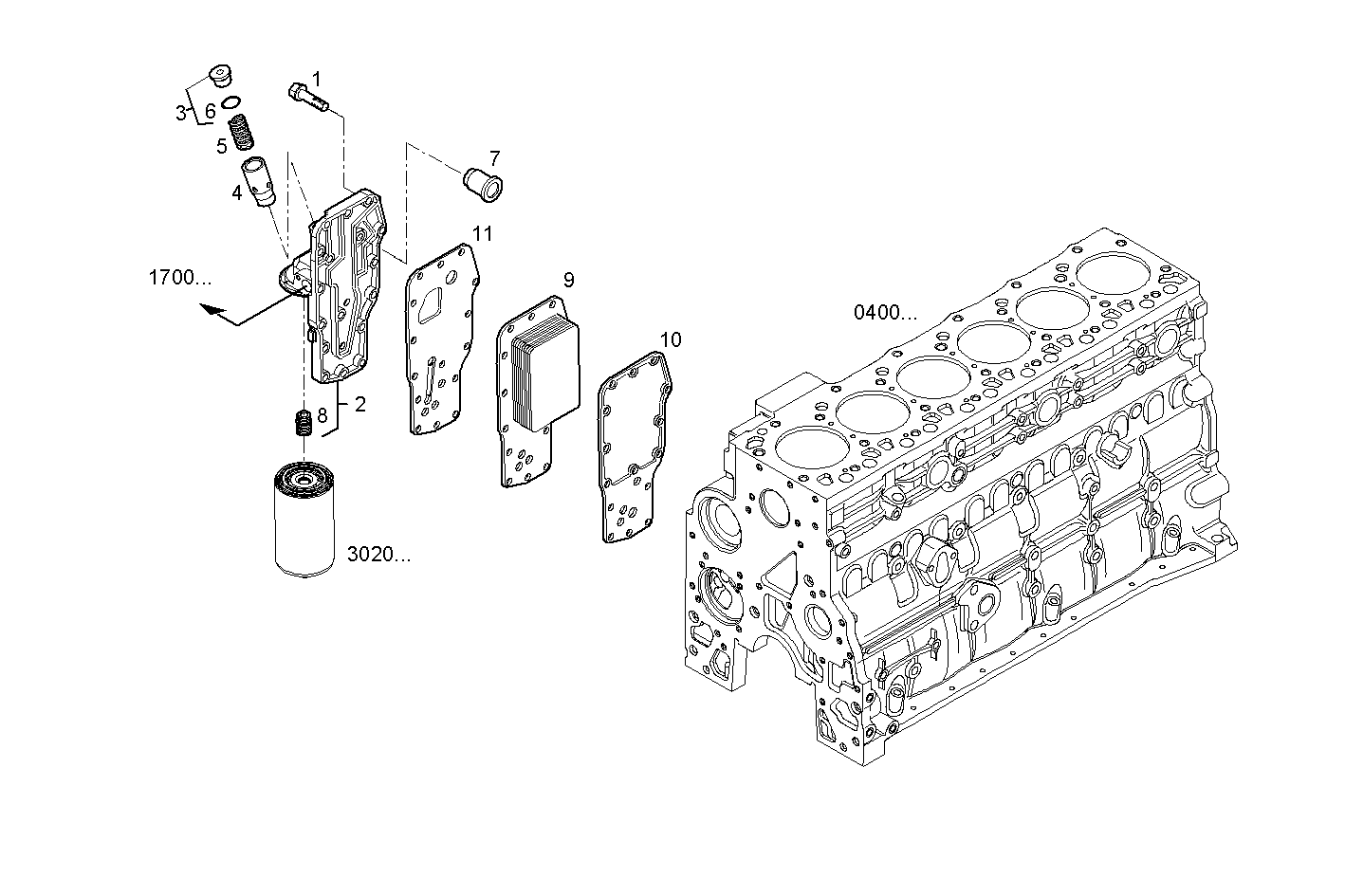

3150.014 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 4899019 HEXAGON BOLT M8X35 MM
2 4899566 HEAT EXCHANGER ASSY
3 504096409 THREADED PLUG ASSY [FROM # 155900]
4 4896404 VALVE HOUSING
5 4895045 VALVE SPRING
6 17916280 O-RING [FROM # 155900]
7 4896410 VALVE
8 4893391 THREADED UNION
9 4896819 OIL COOLER
10 2830559 FLAT ENGINE GASKET
11 4896409 FLAT ENGINE GASKET
