F4AE3481D*P103

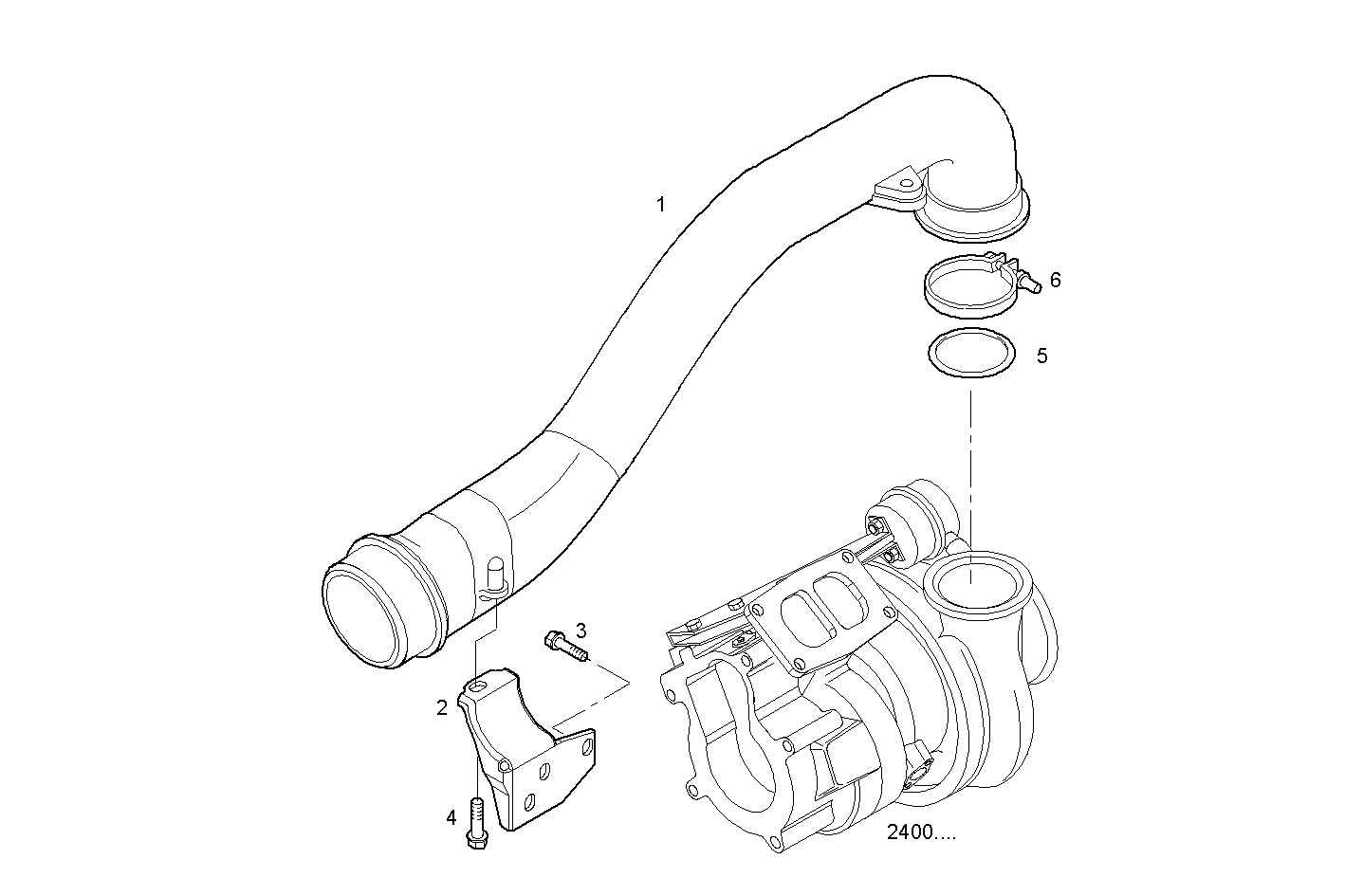

2430.042 EXIT AIR PIPE
Item | Part number | Description |
---|---|---|
1 | 504076950 | AIR PIPE/DUCT |
2 | 504163293 | FASTENING BRACKET |
3 | 4899068 | HEXAGON BOLT M8X17 MM |
4 | 16673635 | HEXAGON BOLT M8X1.25X20 |
5 | 4896625 | GASKET |
6 | 504043155 | CLIP |
