F4AE3681A*R100

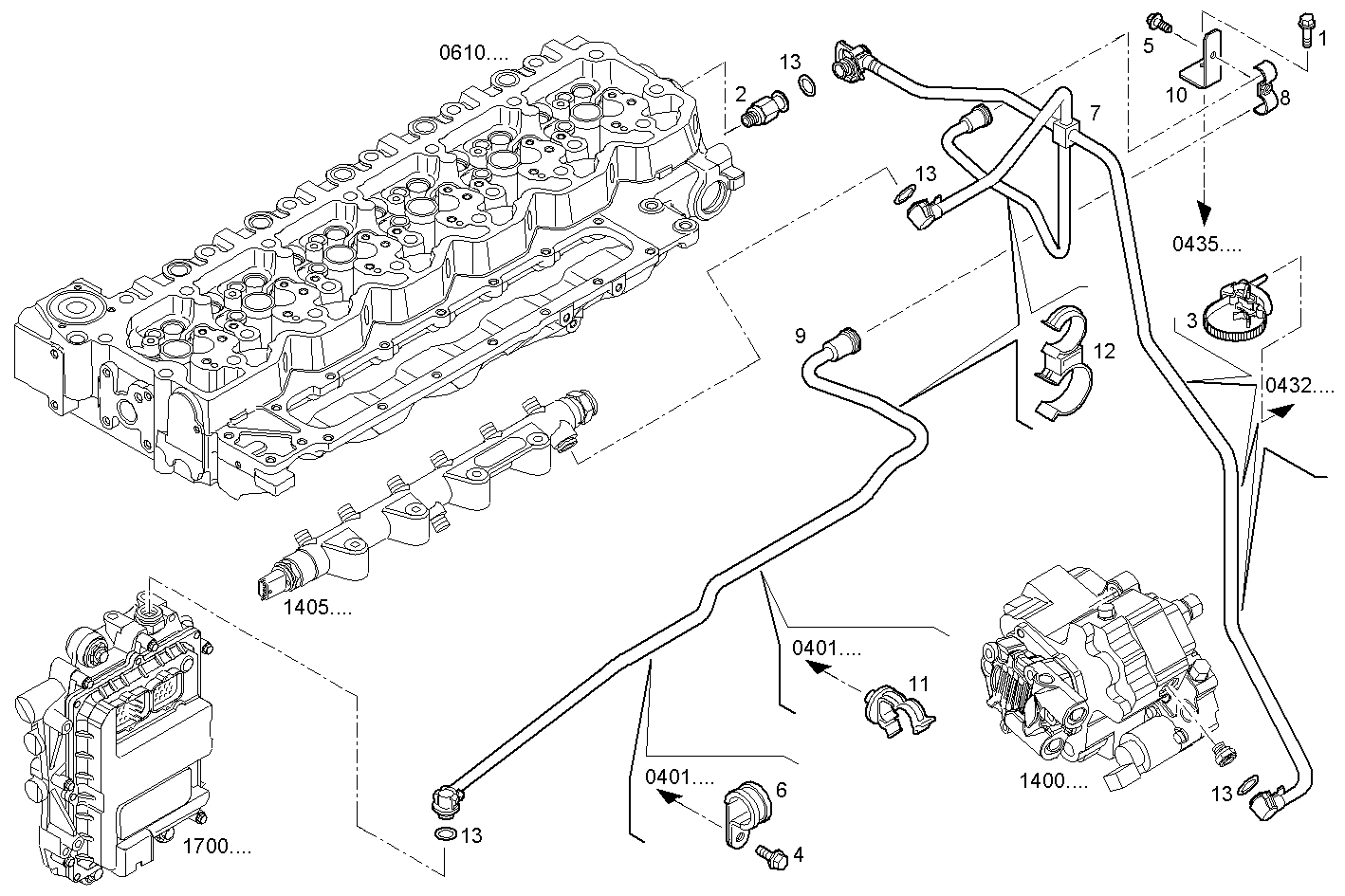

2030.012 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4895164 | HEXAGON BOLT |
| 2 | 4896329 | CONTROL VALVE |
| 3 | 4896996 | RETAINING SPRING |
| 4 | 4899103 | HEXAGON BOLT [UP TO#194518] |
| 5 | 4899129 | HEXAGON BOLT |
| 6 | 17316499 | CLIP |
| 7 | 504147809 | FUEL LINE |
| 8 | 504147849 | FASTENING BRACKET |
| 9 | 504147933 | FUEL LINE |
| 10 | 504147934 | FASTENING BRACKET |
| 11 | 504152161 | RETAINING SPRING |
| 12 | 504314625 | RETAINING SPRING |
| 13 | 4894095 | O-RING |
