F4AE3681B*P107

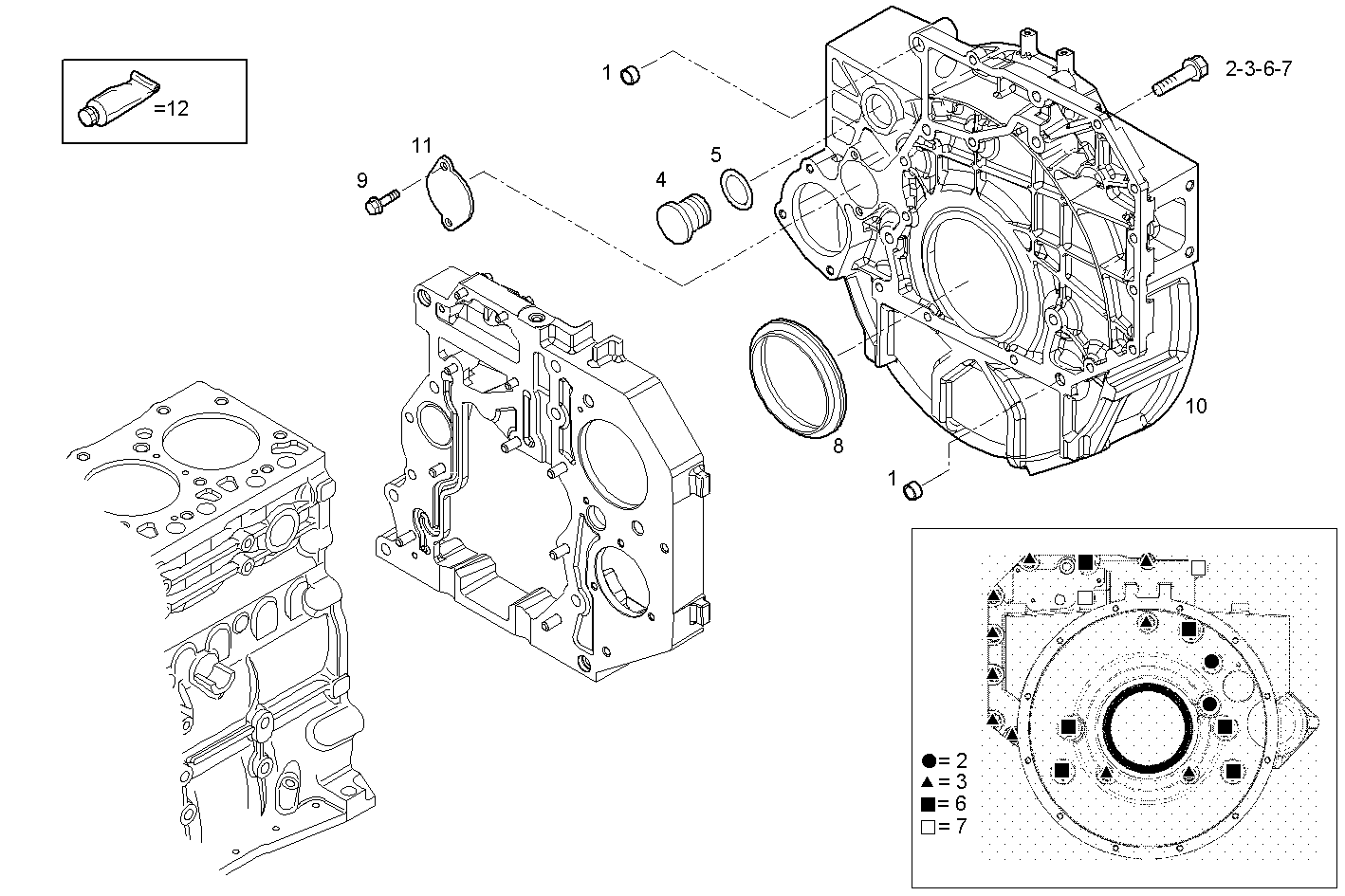

0435.003 FLYWHEEL HOUSING

Iveco/FPT FLYWHEEL HOUSING

Item Part number Description
1 4899026 DOWEL PIN
2 4899109 HEXAGON BOLT M10X1,5X80 MM
3 4892915 HEXAGON BOLT M10X1,5X40 MM
4 4895378 PLUG Ø29 MM
5 17288480 O-RING 3,53x21,81
6 4899076 HEXAGON BOLT M12X80 MM
7 16593524 HEXAGON BOLT M12X110 MM
8 4890833 SHAFT SEAL
9 4899068 HEXAGON BOLT M8X17 MM
10 504033867 FLYWHEEL HOUSING
11 4895155 COVER
12 2992504 ADHESIVE/STICKER LOCTITE
