F4AE3681B*P107

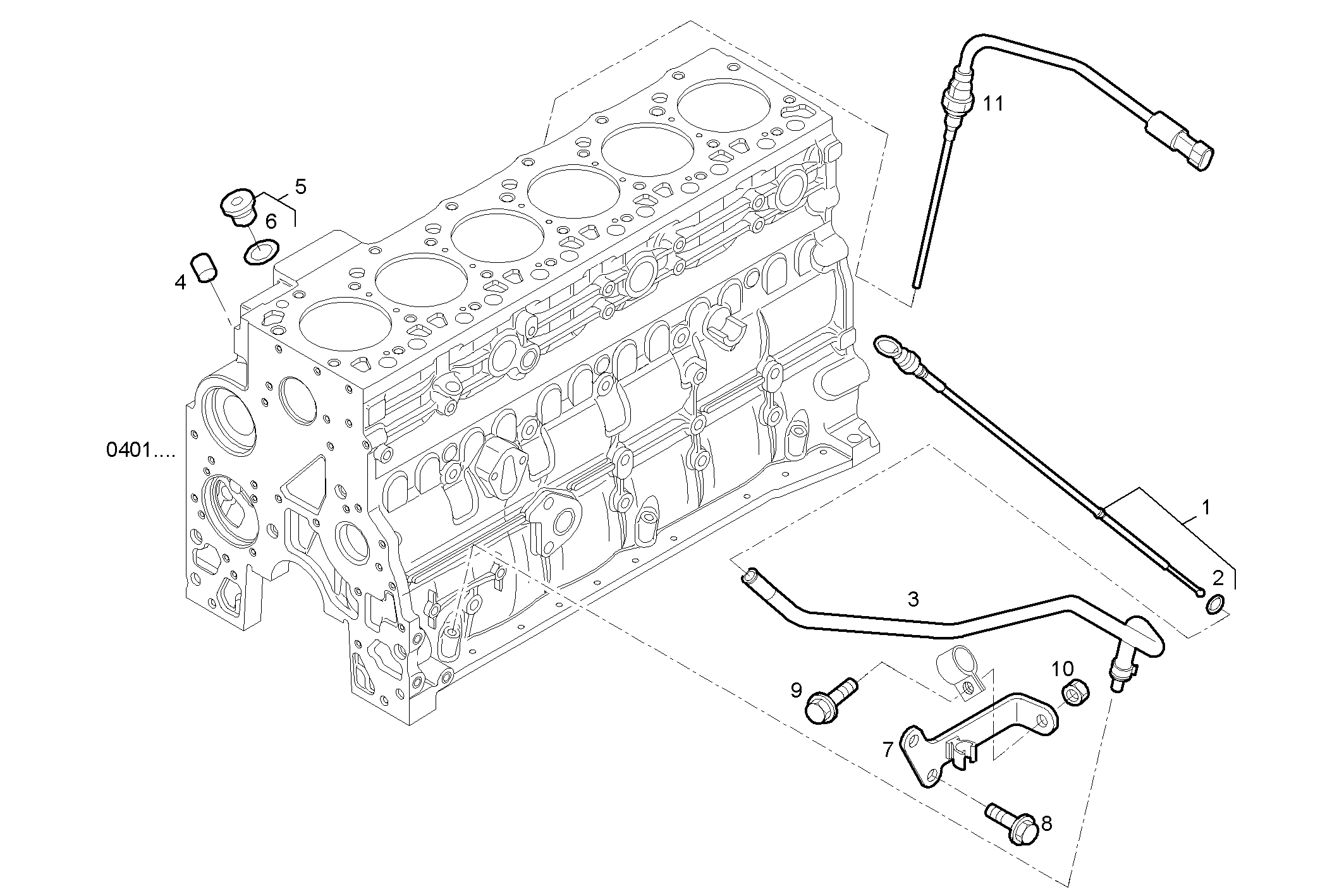

2700.054 OIL DIPSTICK & FILLER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504069153 | OIL DIPSTICK ASSY |
| 2 | 4898502 | O-RING |
| 3 | 504059244 | OIL LEVEL TUBE |
| 4 | 4895406 | PLUG |
| 5 | 4897330 | PLUG ASSY M12X1,5 |
| 6 | 4895610 | O-RING |
| 7 | 504052656 | RETAINER |
| 8 | 4899068 | HEXAGON BOLT M8X17 MM |
| 9 | 4895164 | HEXAGON BOLT |
| 10 | 4899057 | HEXAGON NUT M8X1,25X25 |
| 11 | 4897788 | SENSOR |
