F4AE3681B*P107

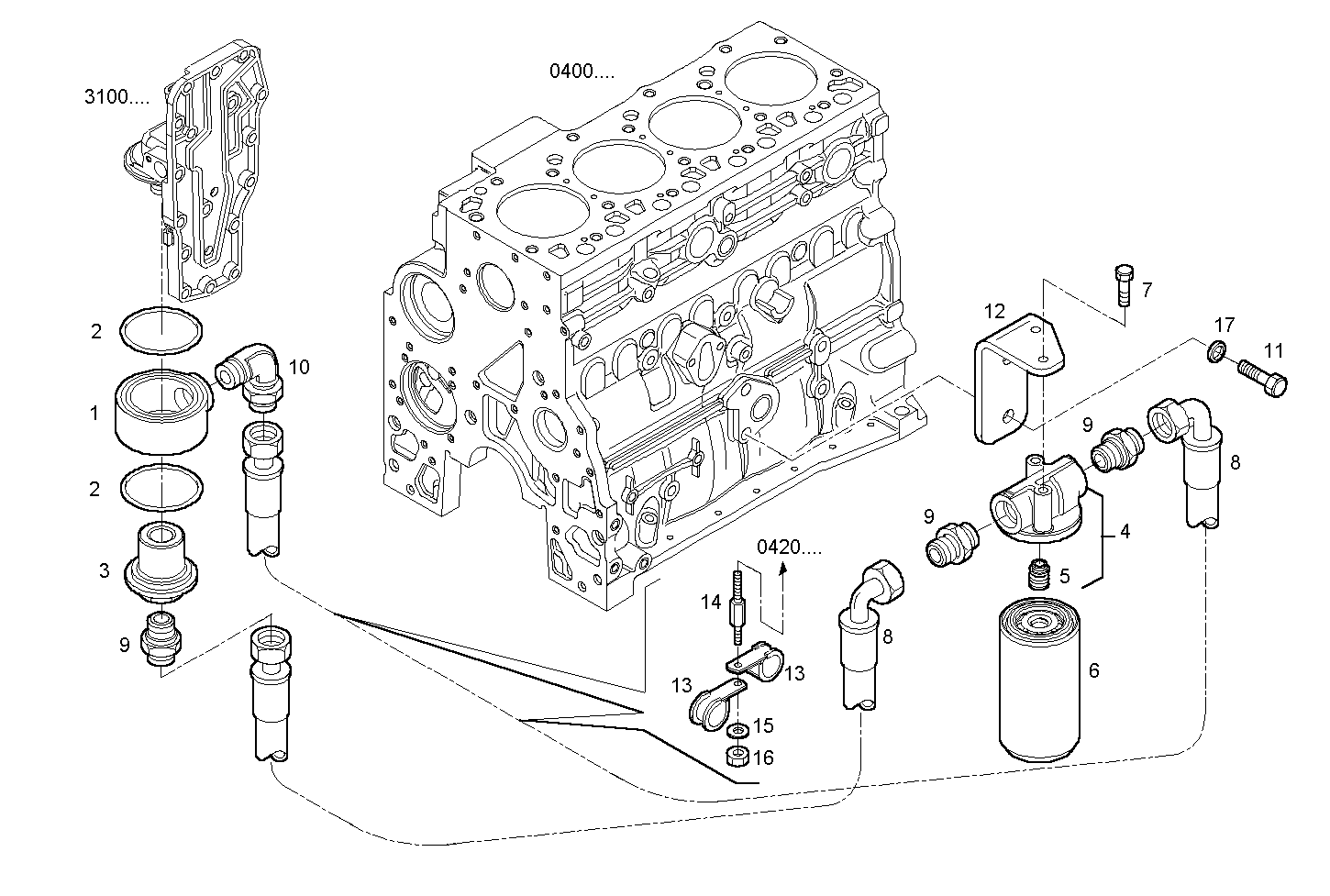

3020.082 OIL FILTERS
Item | Part number | Description |
---|---|---|
1 | 500389886 | SUPPORT |
2 | 17290181 | O-RING Ø59,92 MM SP=3,53 MM |
3 | 500396330 | THREADED UNION |
4 | 504039282 | OIL FILTER SUPPORT ASSY |
5 | 4893391 | THREADED UNION |
6 | 2992242 | OIL FILTER CARTRIDGE |
7 | 18138424 | HEXAGON BOLT M8X20 MM |
8 | 8031469 | HOSE |
9 | 8031468 | THREADED UNION |
10 | 8031805 | ELBOW COUPLING |
11 | 16609924 | HEXAGON BOLT M12X30 MM (8.8) |
12 | 8031708 | OIL FILTER SUPPORT ASSY |
13 | 504031832 | FASTENING BRACKET |
14 | 8031476 | HEXAGON BOLT |
15 | 17089574 | WASHER Ø8X16 MM |
16 | 17037921 | HEXAGON NUT M8X1,25 |
17 | 17091074 | WASHER Ø12X24X2,8 MM |
