F4AE3681B*R107

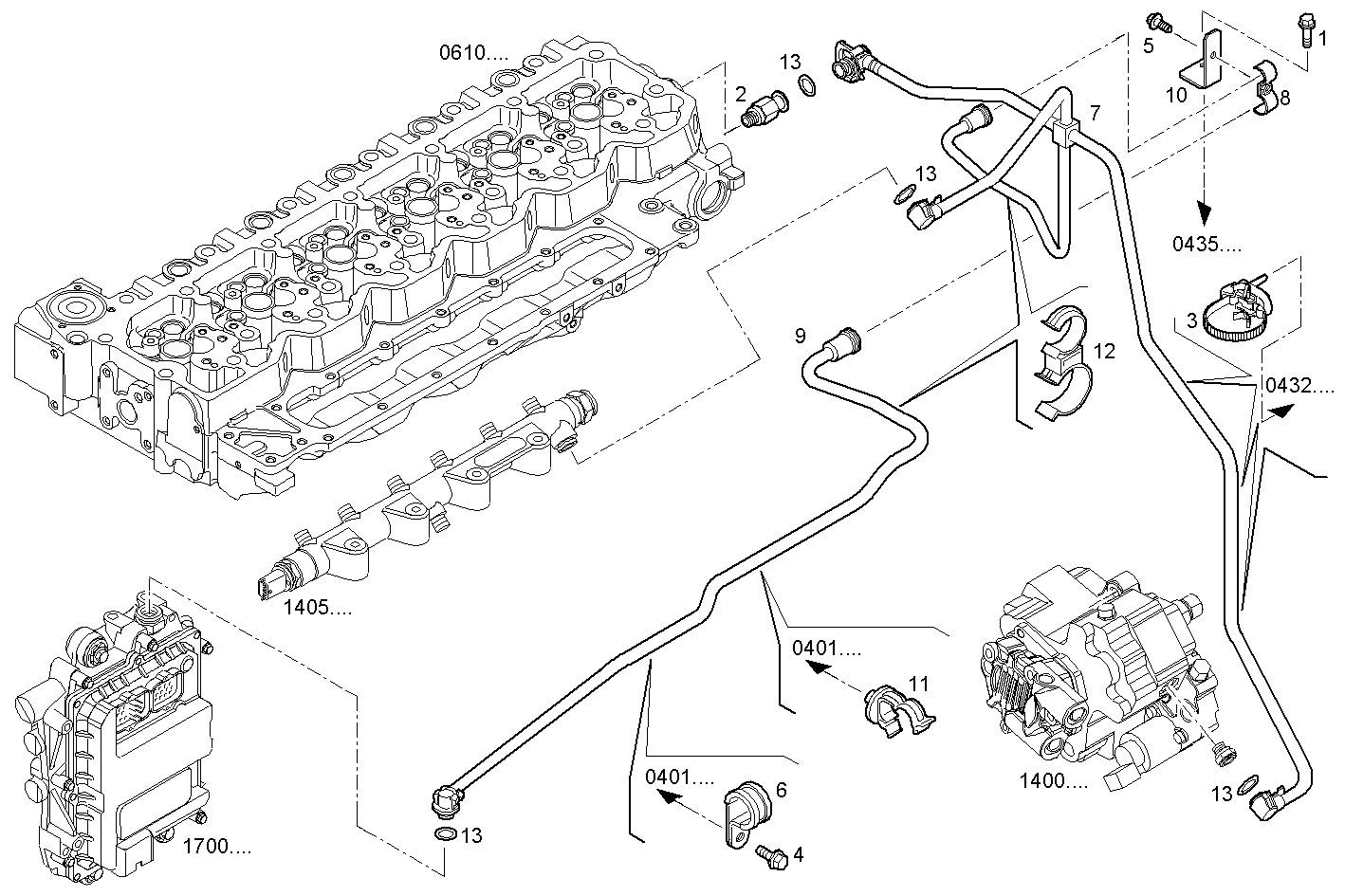

2030.025 FUEL LINES
Item | Part number | Description |
---|---|---|
1 | 4895164 | HEXAGON BOLT |
2 | 4896329 | CONTROL VALVE |
3 | 4896996 | RETAINING SPRING |
4 | 4899103 | HEXAGON BOLT [UP TO#194518] |
5 | 4899129 | HEXAGON BOLT |
6 | 17316499 | CLIP |
7 | 504147809 | FUEL LINE |
8 | 504333747 | FASTENING BRACKET |
9 | 504147933 | FUEL LINE |
10 | 504147847 | FASTENING BRACKET |
11 | 504152161 | RETAINING SPRING |
12 | 504314625 | RETAINING SPRING |
13 | 4894095 | O-RING |
