F4AE3682E*P104

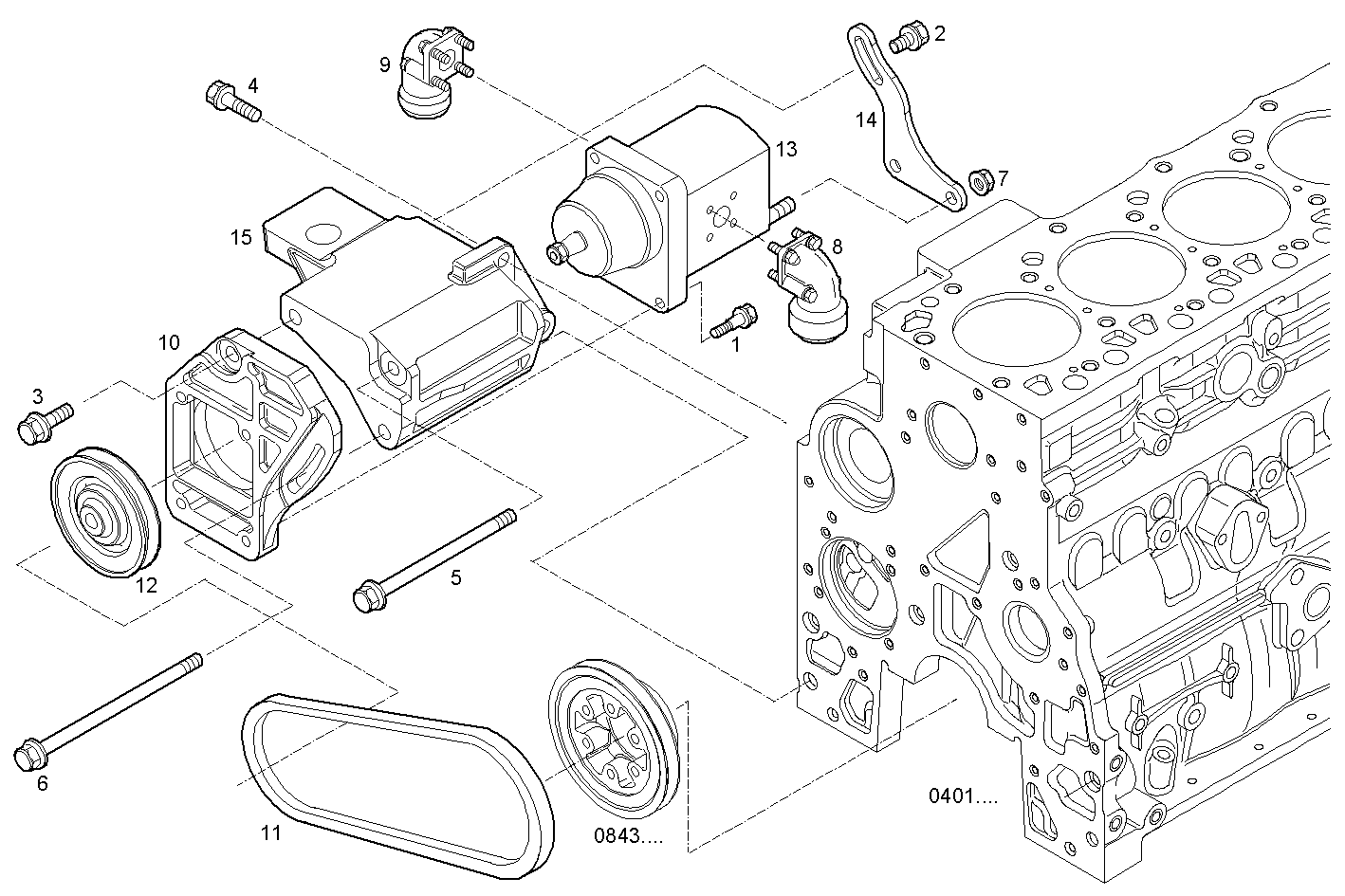

4270.009 HYDRAULIC PUMP
Item | Part number | Description |
---|---|---|
1 | 4899091 | HEXAGON BOLT |
2 | 18139424 | HEXAGON BOLT M10X20 MM |
3 | 16677735 | HEXAGON BOLT M12X25 MM |
4 | 16588125 | HEXAGON BOLT M12X35 MM |
5 | 16600024 | HEXAGON BOLT M12X160 MM |
6 | 16600124 | HEXAGON BOLT M12X1,75X180 MM |
7 | 17044825 | HEXAGON NUT M10 |
8 | 98437006 | ELBOW COUPLING |
9 | 98437008 | ELBOW COUPLING |
10 | 500387653 | SUPPORT PLATE |
11 | 500387663 | V-BELT |
12 | 500387665 | PULLEY |
13 | 500387680 | HYDRAULIC PUMP |
14 | 500393315 | RETAINER |
15 | 504019287 | SUPPORT |
