F4AE3682F*P102

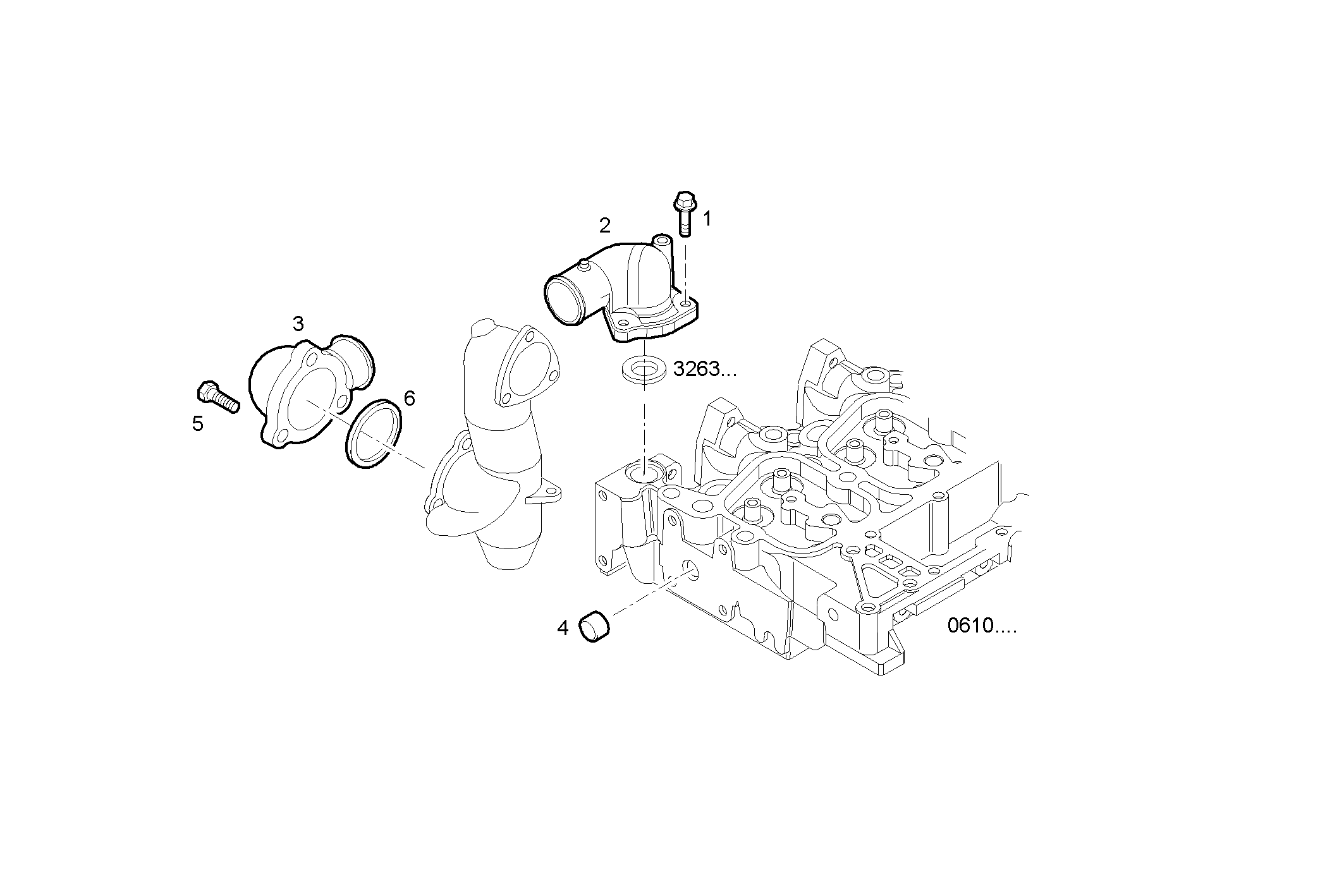

3262.015 TEMPERATURE REGULATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 16586825 | HEXAGON BOLT M8X1.25X45 MM |
| 2 | 504059901 | THERMOSTAT BODY |
| 3 | 4895131 | THERMOSTAT BODY |
| 4 | 16988301 | LOCK PLUG Ø20 MM |
| 5 | 4899110 | HEXAGON BOLT |
| 6 | 504085882 | RUBBER GASKET |
