F4AE3682F*R103

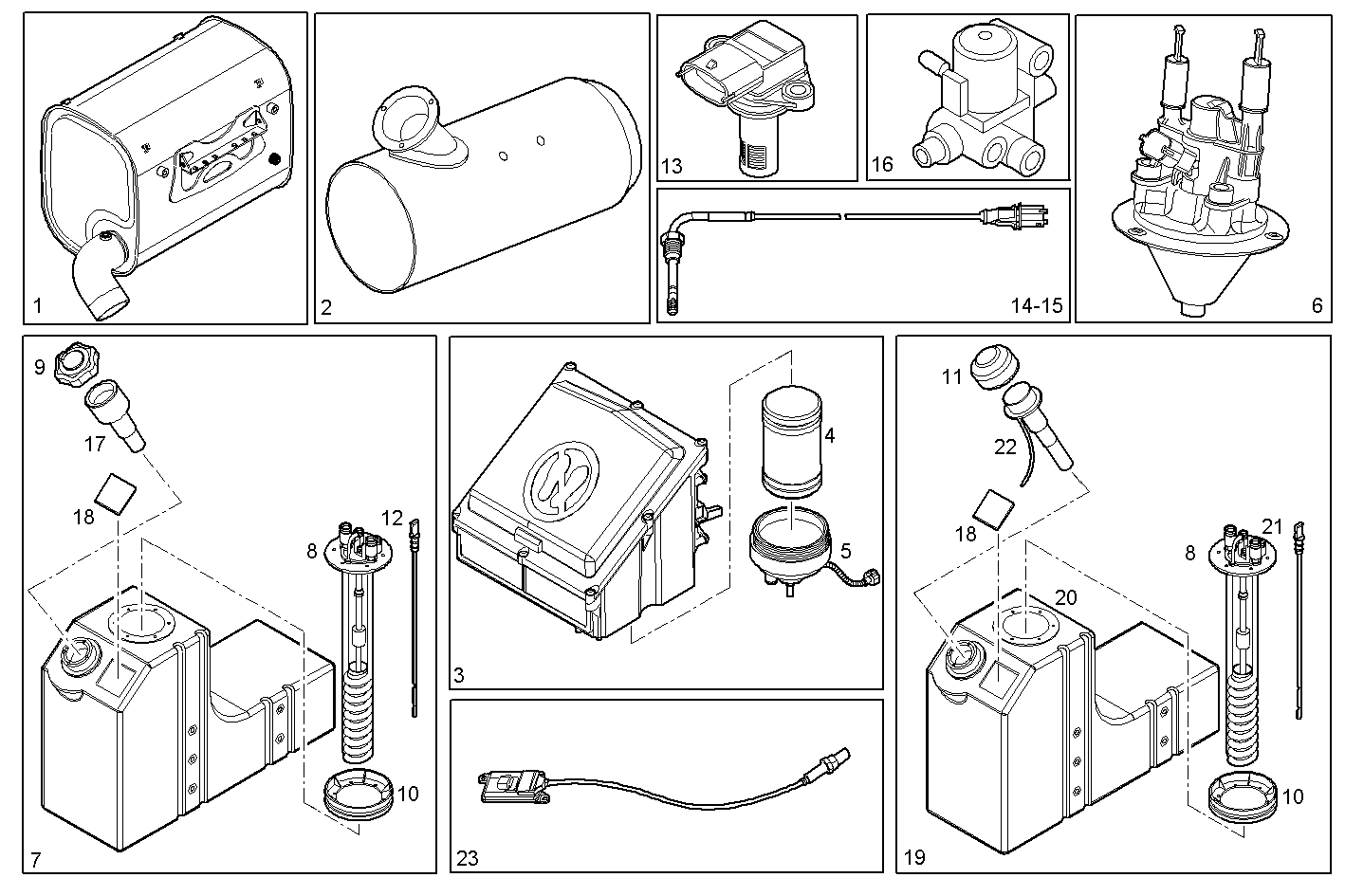

8693.001 AFTER TREATMENT-PARTS
| Item | Part number | Description |
|---|---|---|
| 1 | 504135187 | SILENCER |
| 2 | 8047376 | EXHAUST PIPE |
| 3 | 504193263 | PUMP ASSY |
| 4 | 42555073 | FILTER |
| 5 | 42556541 | FILTER COVER |
| 6 | 504193284 | GREASE METER.UNIT |
| 7 | 504168557 | TANK ASSY |
| 8 | 504168555 | INDICATOR |
| 9 | 41298191 | PLUG for tank |
| 10 | 504205278 | FLANGE |
| 11 | 500025779 | LOCKABLE FUEL CAP |
| 12 | 504219984 | ROD |
| 13 | 504101690 | SENSOR relative umidity |
| 14 | 504102603 | SENSOR gas temperature |
| 15 | 504109529 | SENSOR gas temperature |
| 16 | 41241093 | CONTROL VALVE |
| 17 | 41272014 | CONTROLL DEVICE |
| 18 | 41288277 | LABEL |
| 19 | 504168559 | TANK ASSY |
| 20 | 504168558 | TANK |
| 22 | 504232725 | CONTROLL DEVICE |
| 23 | 41271167 | SENSOR NOX detecting post cat. Silencer |
