F4BE0454A*D601

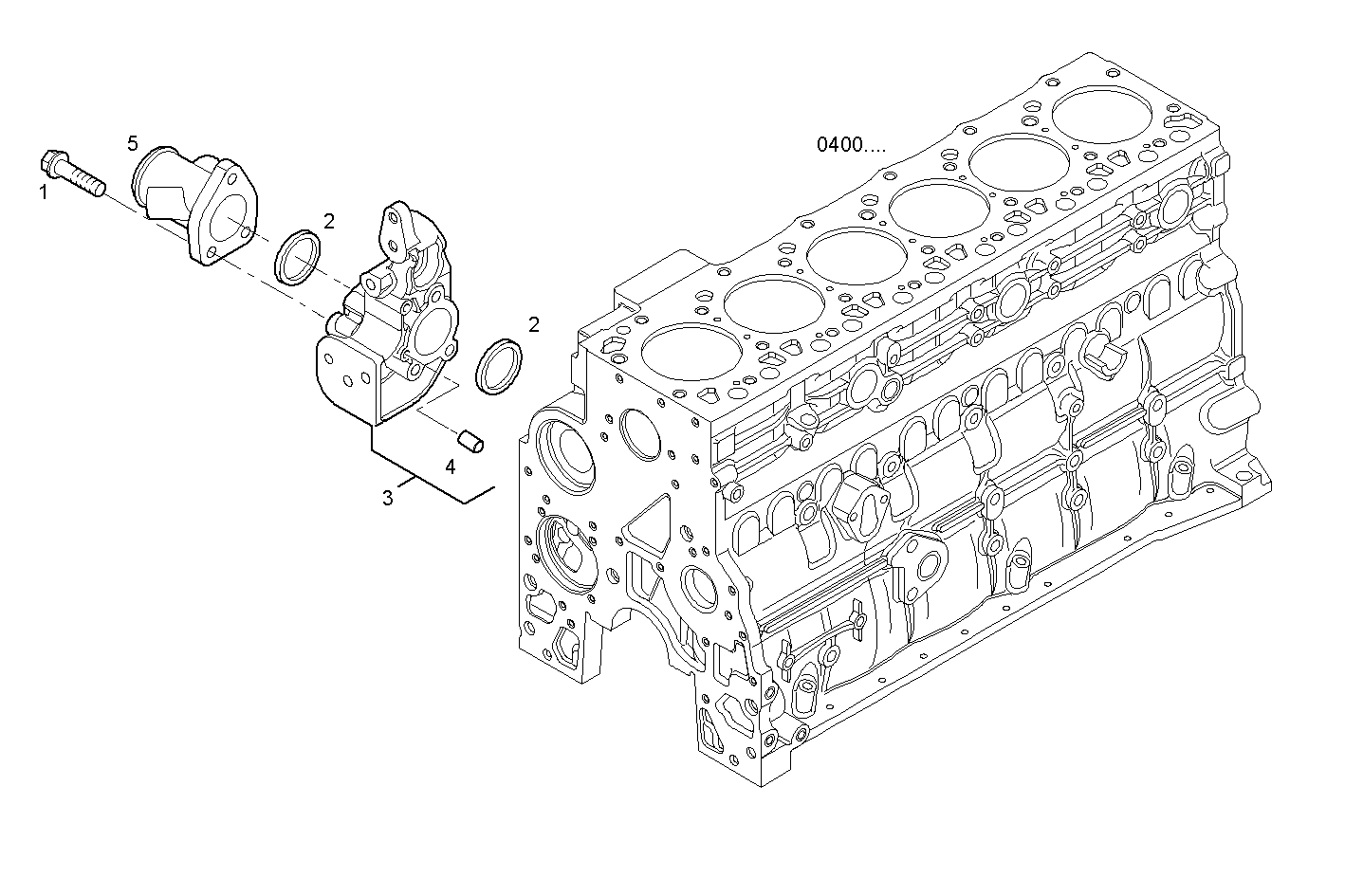

3230.069 WATER PIPE
Item | Part number | Description |
---|---|---|
1 | 16592925 | HEXAGON BOLT M10X80 MM |
2 | 504062710 | WASHER |
3 | 500387647 | GENERATOR SUPPORT ASSY |
4 | 4895576 | DOWEL PIN |
5 | 504040659 | WATER PIPE |
