F4BE0454G*D600

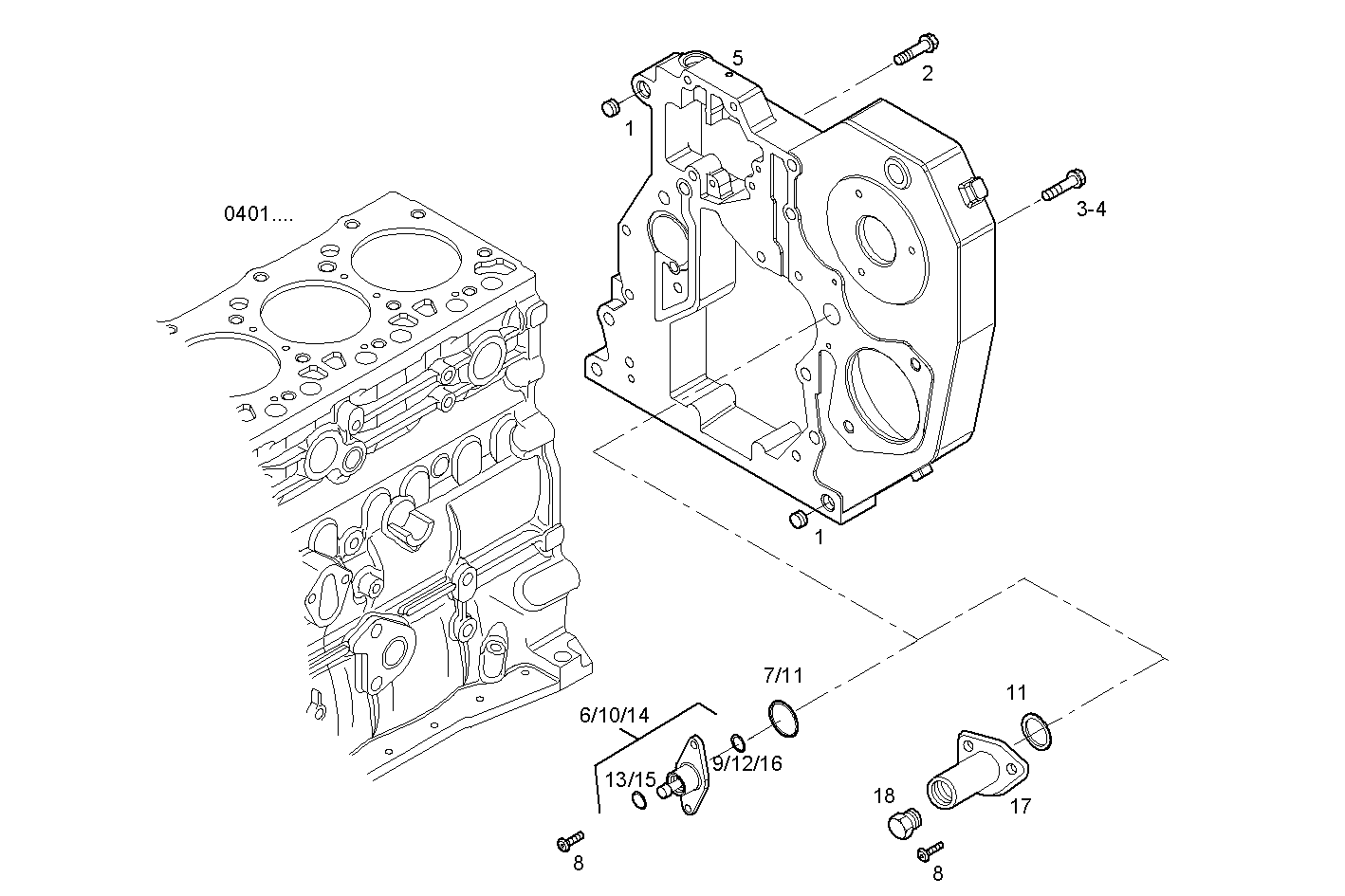

0432.000 REAR C.CASE COVER

Iveco/FPT REAR C.CASE COVER

Item Part number Description
1 4899026 DOWEL PIN
2 4899091 HEXAGON BOLT
3 4899093 HEXAGON BOLT
4 4899073 HEXAGON BOLT
5 504035017 TIMINGGEAR HOUSIN
6 4895356 CONNECTING PLATE ASSY [UP TO # 161404]
7 4895357 SEAL GASKET [UP TO # 161404]
8 4895355 SHEAR SCREW M5X17 MM
9 4895418 O-RING [UP TO # 161404]
10 504074001 LOCKING PLATE ASSY [FROM # 161405]
11 17278780 O-RING [FROM # 161405]
12 17278090 O-RING [FROM # 161405]
13 504079852 SPRING LOCKWASHER [FROM # 161405]
17 504170787 LOCKING PLATE [FROM # 295152]
18 16882515 PLUG [FROM # 295152]
