F4BE0454G*D600

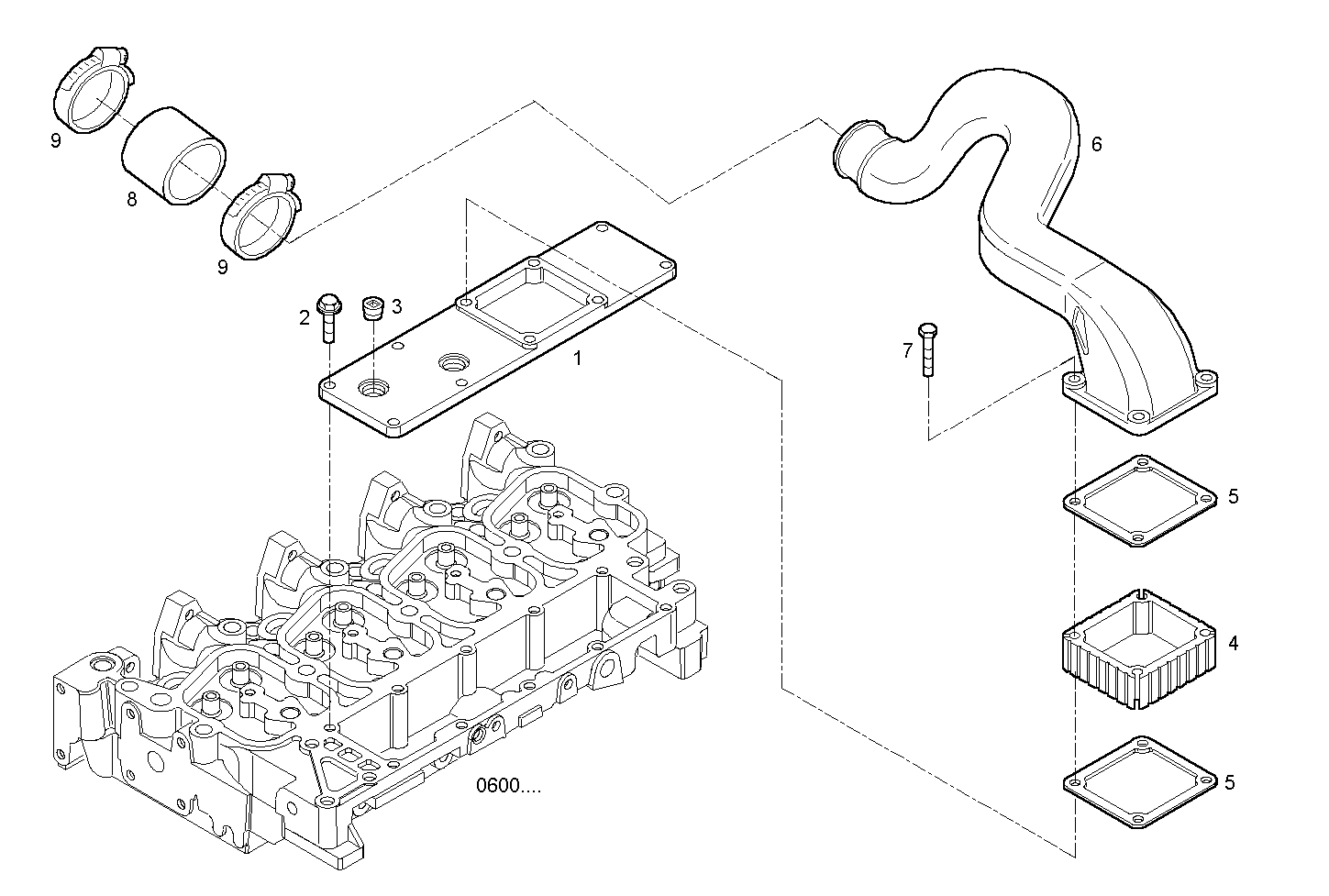

0710.149 INTAKE MANIFOLD
Item | Part number | Description |
---|---|---|
1 | 4895312 | COVER |
2 | 4899039 | HEXAGON BOLT M8X1,25X25 MM |
3 | 4895078 | THREADED PLUG |
4 | 4895648 | SPACING BAR |
5 | 4899921 | FLAT ENGINE GASKET |
6 | 504039344 | INTAKE ELBOW |
7 | 16592624 | HEXAGON BOLT M8X80 MM |
8 | 98421377 | RUBBER SLEEVE Ø51 MM |
9 | 17764892 | PIPE CLIP Ø40-60 MM |
