F4BE0484F*D601

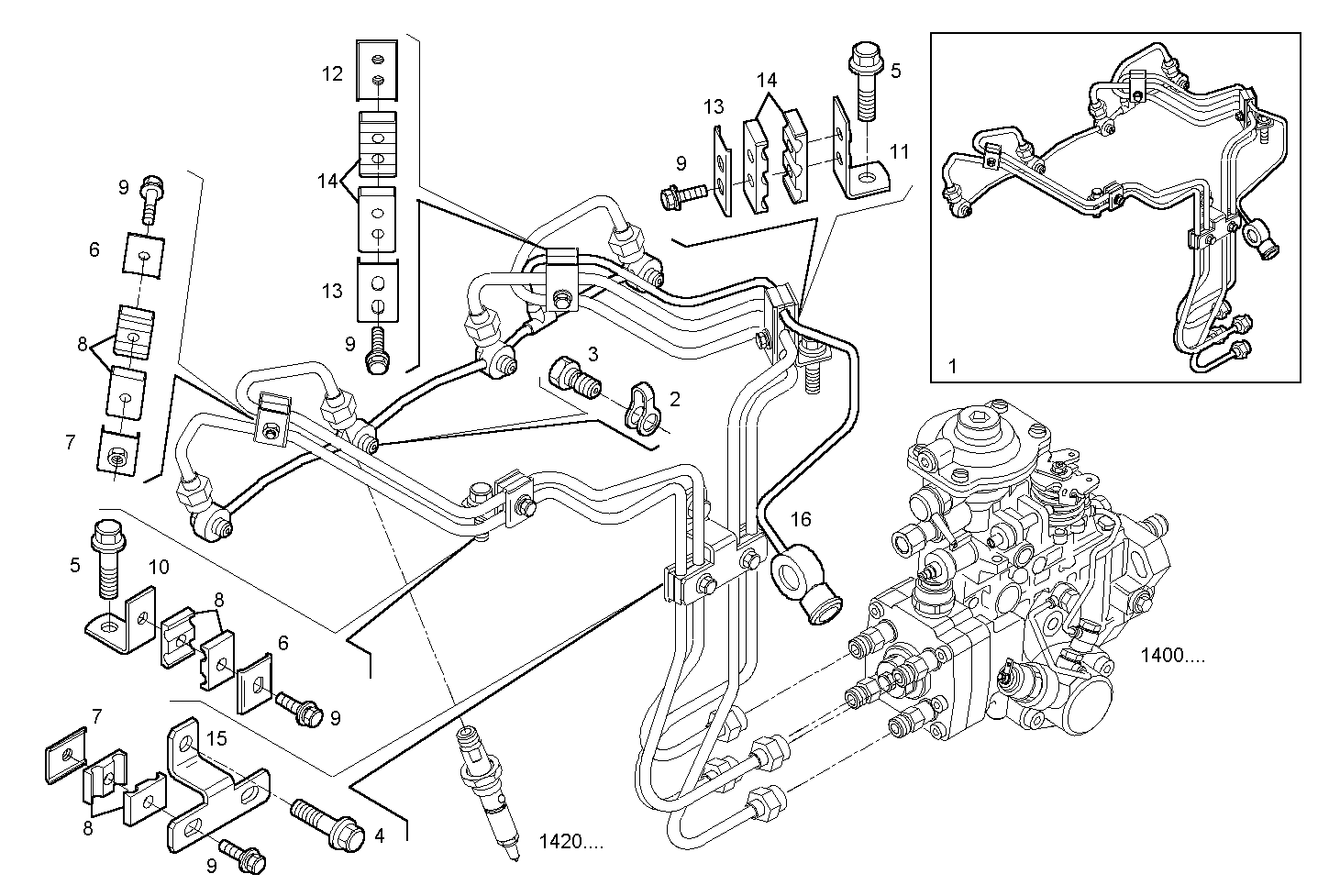

2020.130 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 4896921 | INJECTION LINE SET |
| 2 | 4895305 | SEAL GASKET |
| 3 | 4895244 | SCREW CONNECTOR M 6X1 |
| 4 | 4896884 | HEXAGON BOLT |
| 5 | 4899039 | HEXAGON BOLT M8X1,25X25 MM |
| 6 | 4895242 | FASTENING BRACKET |
| 7 | 4895251 | FASTENING BRACKET |
| 8 | 4895252 | DOWEL |
| 9 | 4895310 | HEXAGON BOLT |
| 10 | 4895346 | FASTENING BRACKET |
| 11 | 4896907 | FASTENING BRACKET |
| 12 | 4898638 | FASTENING BRACKET |
| 13 | 4895590 | FASTENING BRACKET |
| 14 | 4896919 | DOWEL |
| 15 | 4896761 | RETAINER |
| 16 | 4896913 | FUEL LINE |
