F4BE0641A*G103

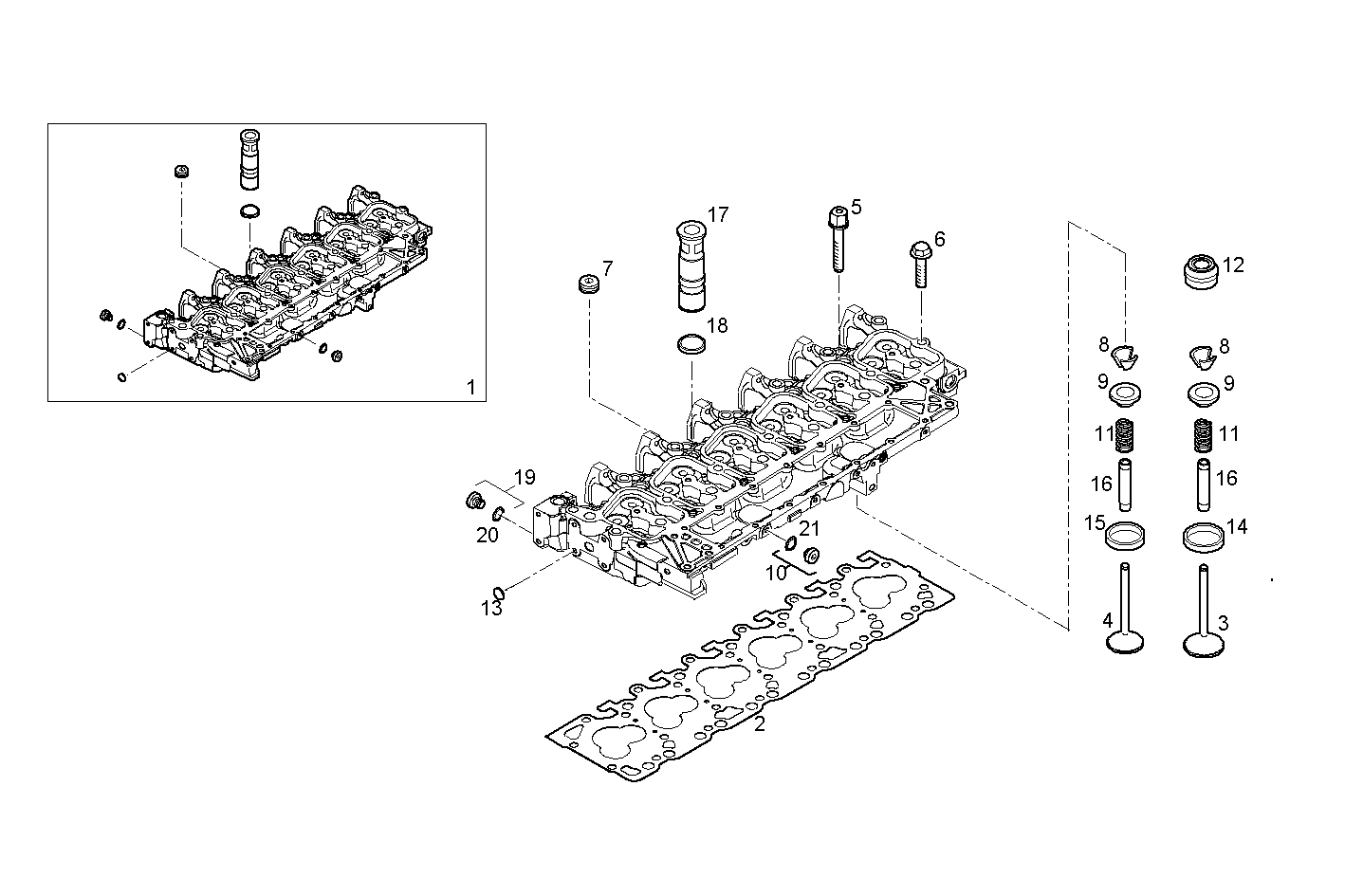

0610.001 CYLINDER HEAD
| Item | Part number | Description |
|---|---|---|
| 1 | 504029666 | CYLINDER HEAD ASSY |
| 2 | 2830922 | CYL.HEAD GASKET SP=1,25 MM |
| 3 | 504029677 | INLET VALVE |
| 4 | 504029678 | EXHAUST VALVE |
| 5 | 504082970 | CYL.HEAD STUD M12X1.75X70 MM |
| 6 | 4892859 | HEXAGON BOLT M15X1,75 |
| 7 | 4895078 | THREADED PLUG |
| 8 | 4895183 | VALVE CONE |
| 9 | 4895184 | SPRING CAP |
| 10 | 4899009 | THREADED PLUG ASSY M10X1 |
| 11 | 4895215 | ENGINE VALV.SPRING |
| 12 | 40101573 | CAP |
| 13 | 4895179 | LOCK PLUG |
| 14 | 504029687 | VALVE SEAT STD. INLET |
| 15 | 504029686 | VALVE SEAT STD. EXHAUST |
| 16 | 504029688 | VALVE GUIDE |
| 17 | 504029702 | SPARK CASING |
| 18 | 504083036 | WASHER |
| 19 | 504065067 | THREADED PLUG M10X1 |
| 20 | 17915780 | O-RING |
| 21 | 4899072 | O-RING |
