F4BE0641A*G105

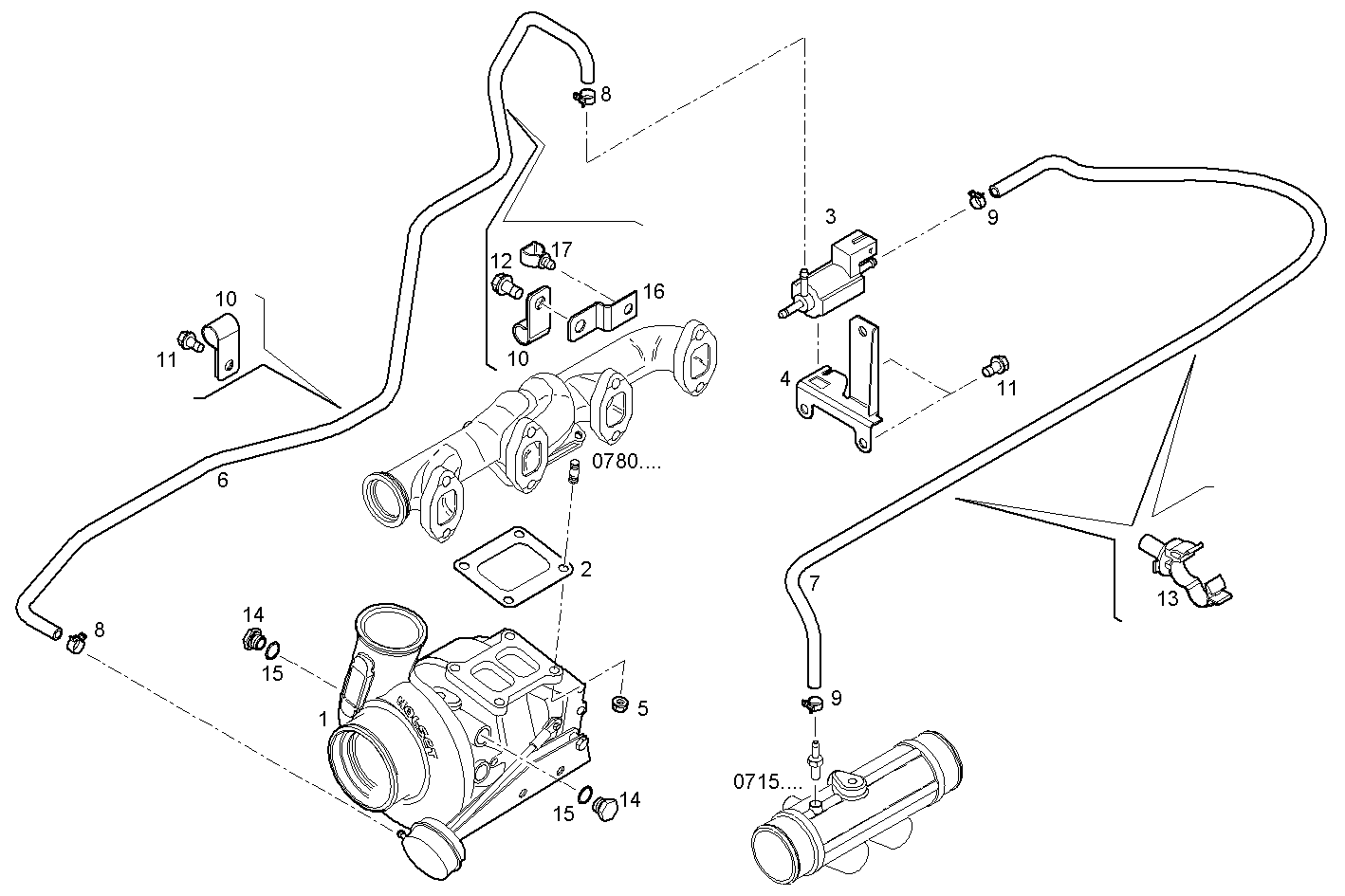

2400.252 TURBOCHARGER
Item | Part number | Description |
---|---|---|
1 | 504080200 | TURBOCHARGER |
2 | 98451118 | GASKET |
3 | 504064372 | ELECTROVALVE |
4 | 504064373 | RETAINER |
5 | 4899086 | HEXAGON NUT M10X1,5 |
6 | 504064374 | RUBBER HOSE |
7 | 504064375 | RUBBER HOSE |
8 | 504098769 | CLIP |
9 | 504085594 | CLIP |
10 | 4895579 | CLIP |
11 | 4899068 | HEXAGON BOLT M8X17 MM |
12 | 4895291 | HEXAGON BOLT M10X1,5X20 MM |
13 | 4897762 | SPRING CLAMP |
14 | 16992415 | THREADED PLUG M16X1,5 |
15 | 16508260 | WASHER Ø16X20 MM |
16 | 99481827 | FASTENING BRACKET |
17 | 504065285 | SPRING CLAMP |
