F4BE0641A*G105

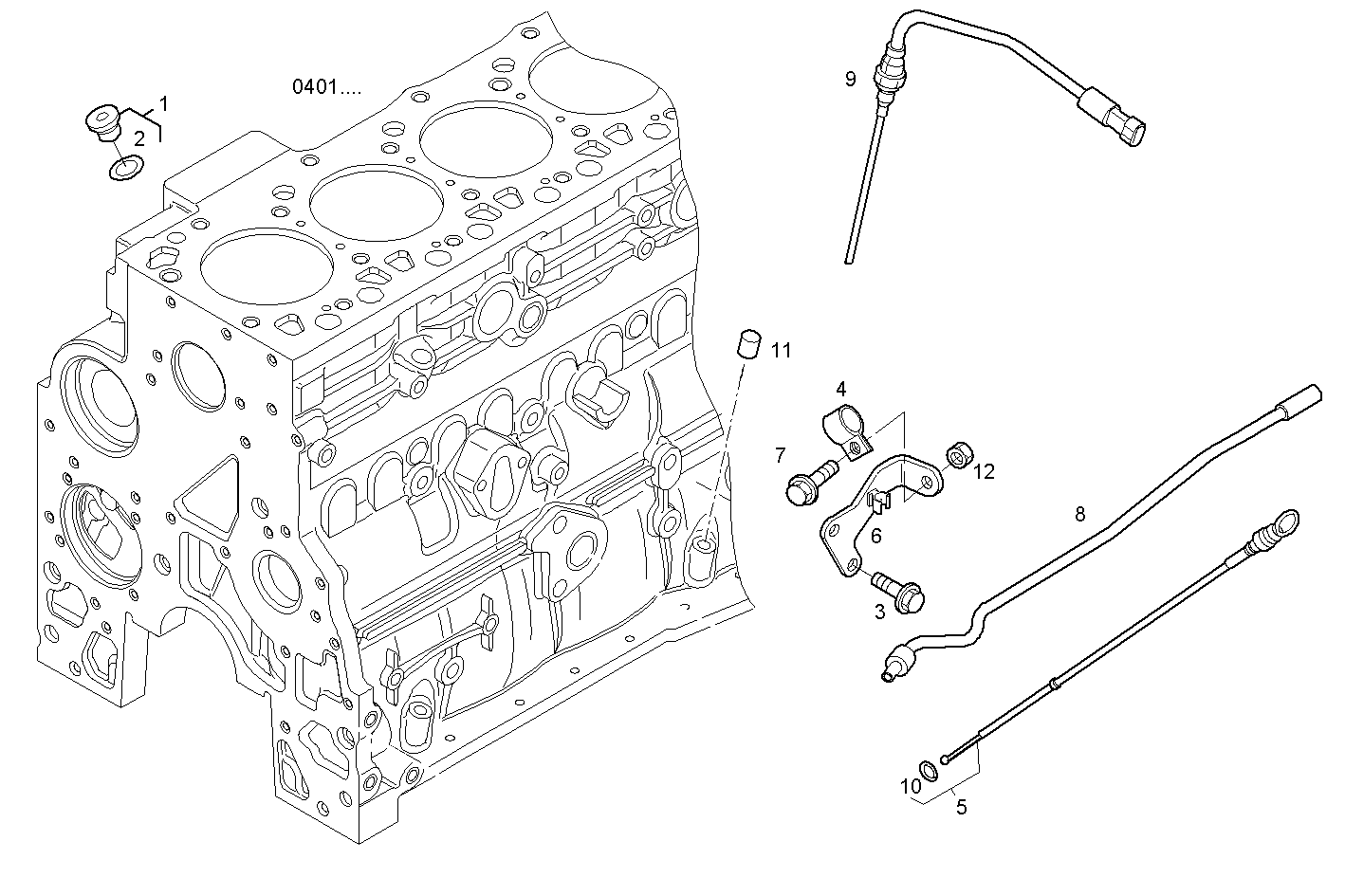

2700.061 OIL DIPSTICK & FILLER PIPE

Iveco/FPT OIL DIPSTICK & FILLER PIPE

Item Part number Description
1 4897330 PLUG ASSY M12X1,5
2 4895610 O-RING
3 4899068 HEXAGON BOLT M8X17 MM
4 17315090 FASTENING BRACKET Ø14 MM
5 504069153 OIL DIPSTICK ASSY
6 504052680 RETAINER
7 4895164 HEXAGON BOLT
8 504059244 OIL LEVEL TUBE
9 4897788 SENSOR
10 17277981 O-RING 1,78x9,25
11 4895406 PLUG
12 4899057 HEXAGON NUT M8X1,25X25
