F4BE0641A*G105

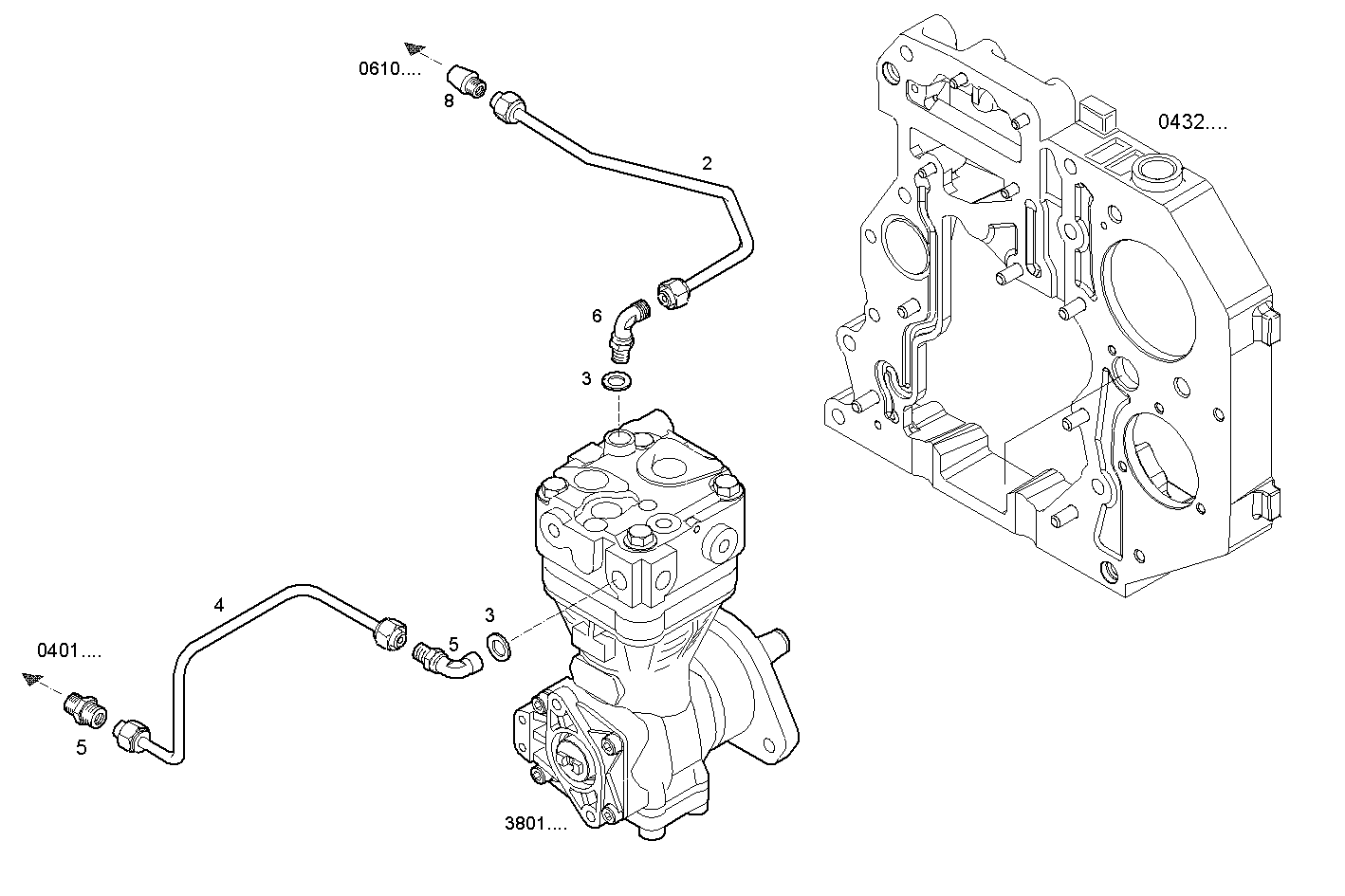

3253.009 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 504043982 | PIPE SOCKET |
| 2 | 504043980 | WATER PIPE |
| 3 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 4 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 5 | 4897881 | ELBOW COUPLING |
| 6 | 4896491 | ELBOW COUPLING M16X1,5 - M18X1,5 |
| 7 | 4896476 | WATER PIPE |
