F4BE0647A*B100

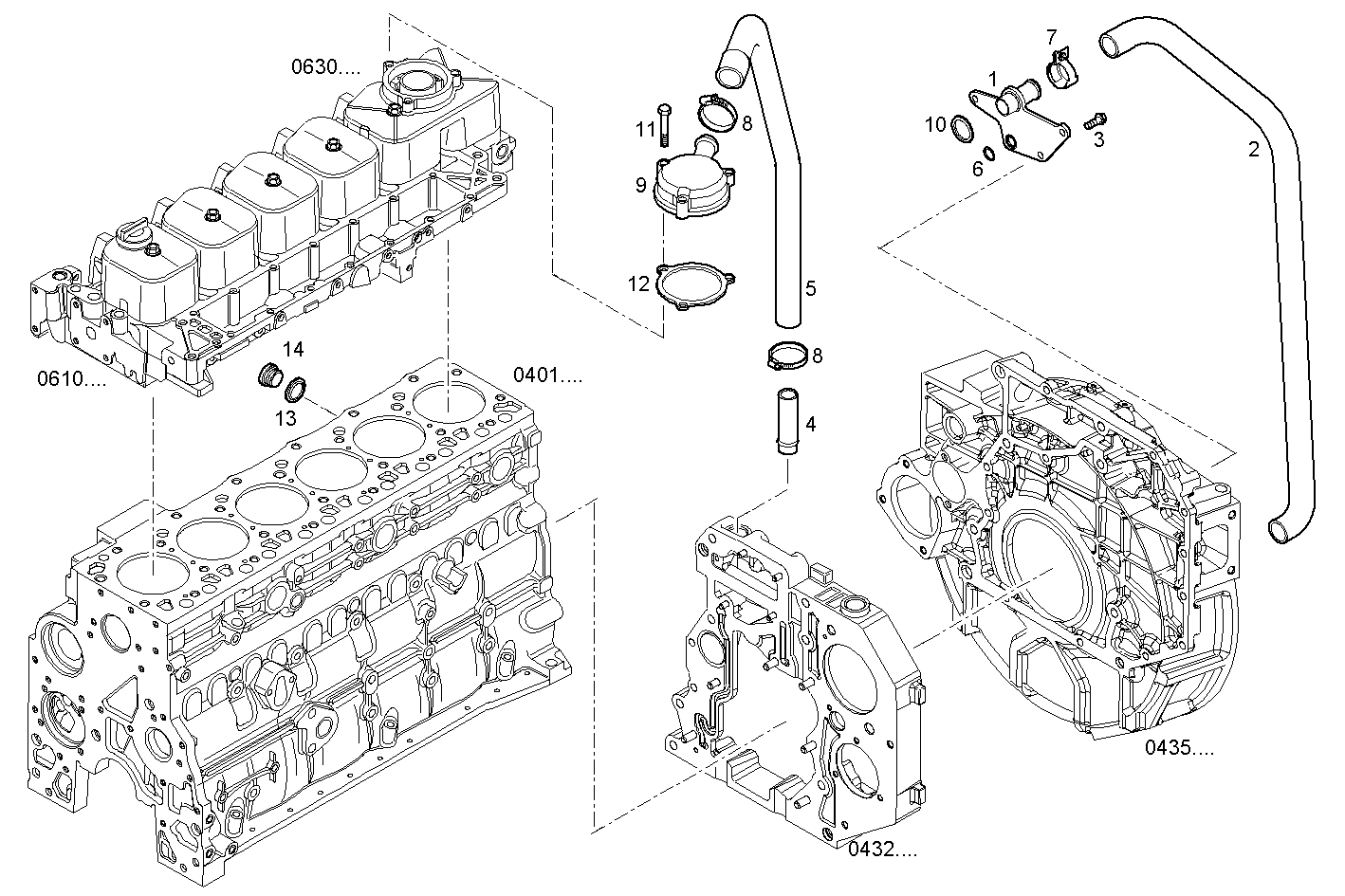

0450.231 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 504117993 | BREATHER |
| 2 | 504150716 | RUBBER SLEEVE |
| 3 | 4899110 | HEXAGON BOLT |
| 4 | 4897547 | CONNECTOR SLEEVE |
| 5 | 504083526 | CONNECTOR SLEEVE |
| 6 | 4898372 | O-RING Ø13,11 MM SP=2,62 MM |
| 7 | 4893234 | CLIP |
| 8 | 17764694 | CLIP Ø25/40 MM |
| 9 | 99445059 | COVER ASSY BUNDY |
| 10 | 17288281 | O-RING Ø18,64X3,53 MM |
| 11 | 16604124 | HEXAGON BOLT M6X40 MM |
| 12 | 504083527 | SEAL GASKET |
| 13 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 14 | 16992211 | THREADED PLUG M12X1,5 |
