F4BE0647A*B100

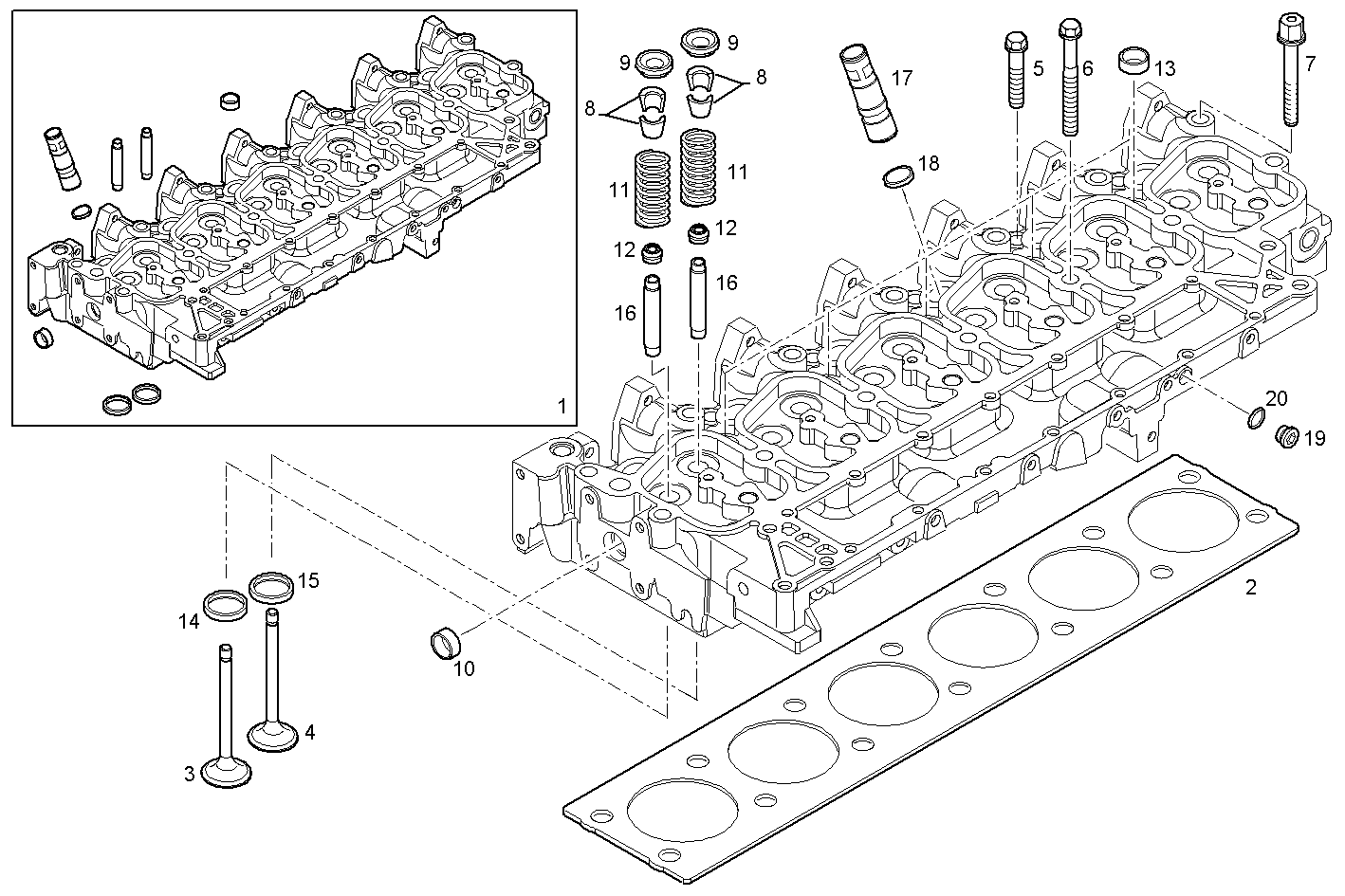

0610.011 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 504192832 CYLINDER HEAD ASSY
2 2830922 CYL.HEAD GASKET SP=1,25 MM
3 504029677 INLET VALVE
4 504029678 EXHAUST VALVE
5 4892861 HEXAGON BOLT M15X1,75
6 4892859 HEXAGON BOLT M15X1,75
7 504204149 CYL.HEAD STUD
8 4895183 VALVE CONE
9 4895184 SPRING CAP
10 4895085 PLUG
11 4895215 ENGINE VALV.SPRING
12 40101573 CAP
13 4895179 LOCK PLUG
14 504029687 VALVE SEAT STD. INLET
15 504029686 VALVE SEAT STD. EXHAUST
16 504029688 VALVE GUIDE
17 504204146 SPARK CASING
18 504083036 WASHER
19 504065067 THREADED PLUG M10X1
20 17915780 O-RING
