F4BE0647A*B100

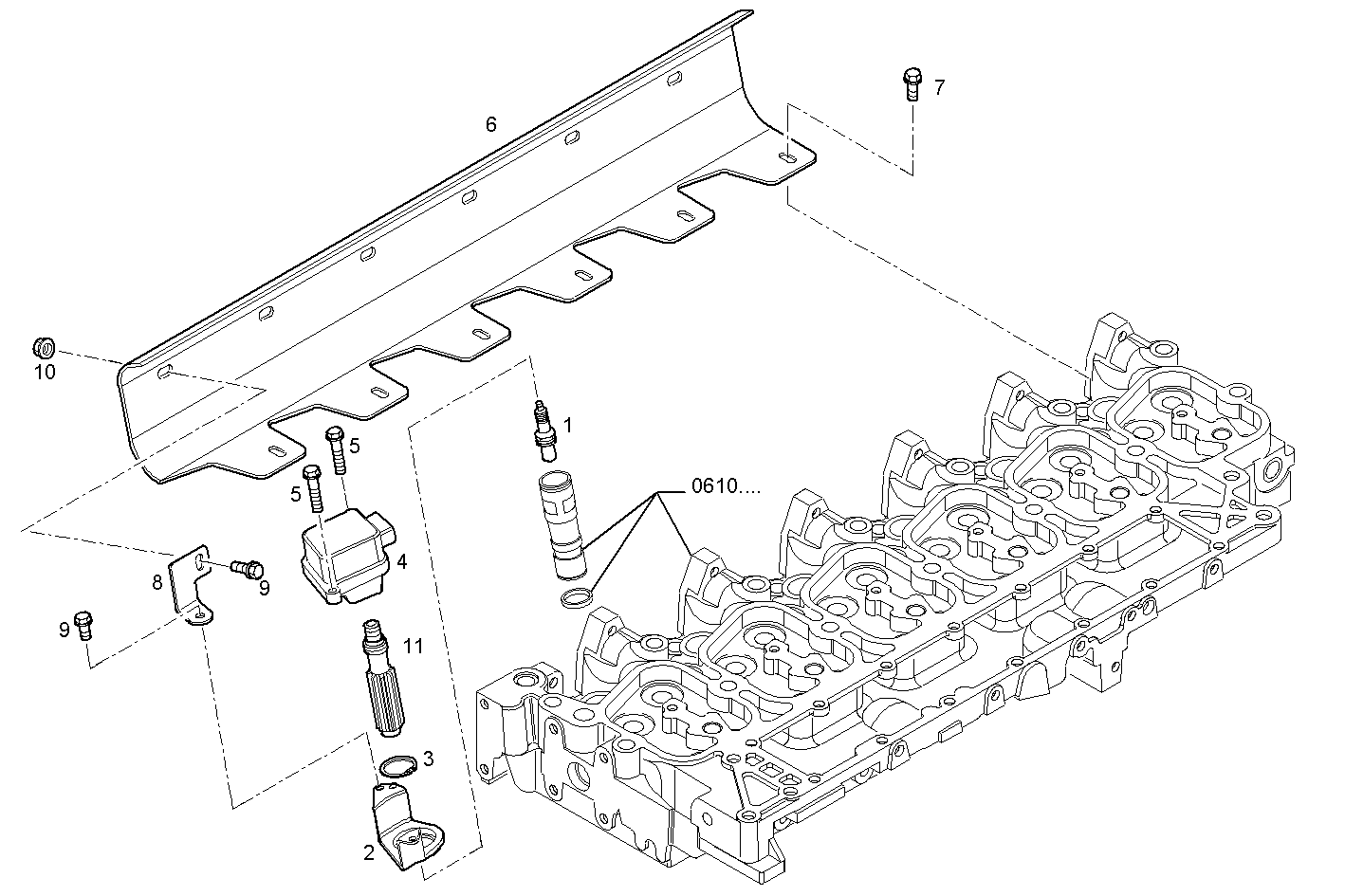

2800.014 IGNITION CONTROL - SPARK PLUGS
Item | Part number | Description |
---|---|---|
1 | 504082651 | SPARK PLUG |
2 | 504029726 | FLANGED BUSH |
3 | 17853574 | CIRCLIP |
4 | 504085566 | IGNITION COIL |
5 | 16585325 | HEXAGON BOLT |
6 | 504204153 | PROTECTION |
7 | 16585625 | HEXAGON BOLT M6X12 |
8 | 504214144 | FASTENING BRACKET |
9 | 16585024 | HEXAGON BOLT M5X10 |
10 | 17044525 | HEXAGON NUT M5 |
11 | 504083065 | SPARK CASING |
