F4BE0684D*D401

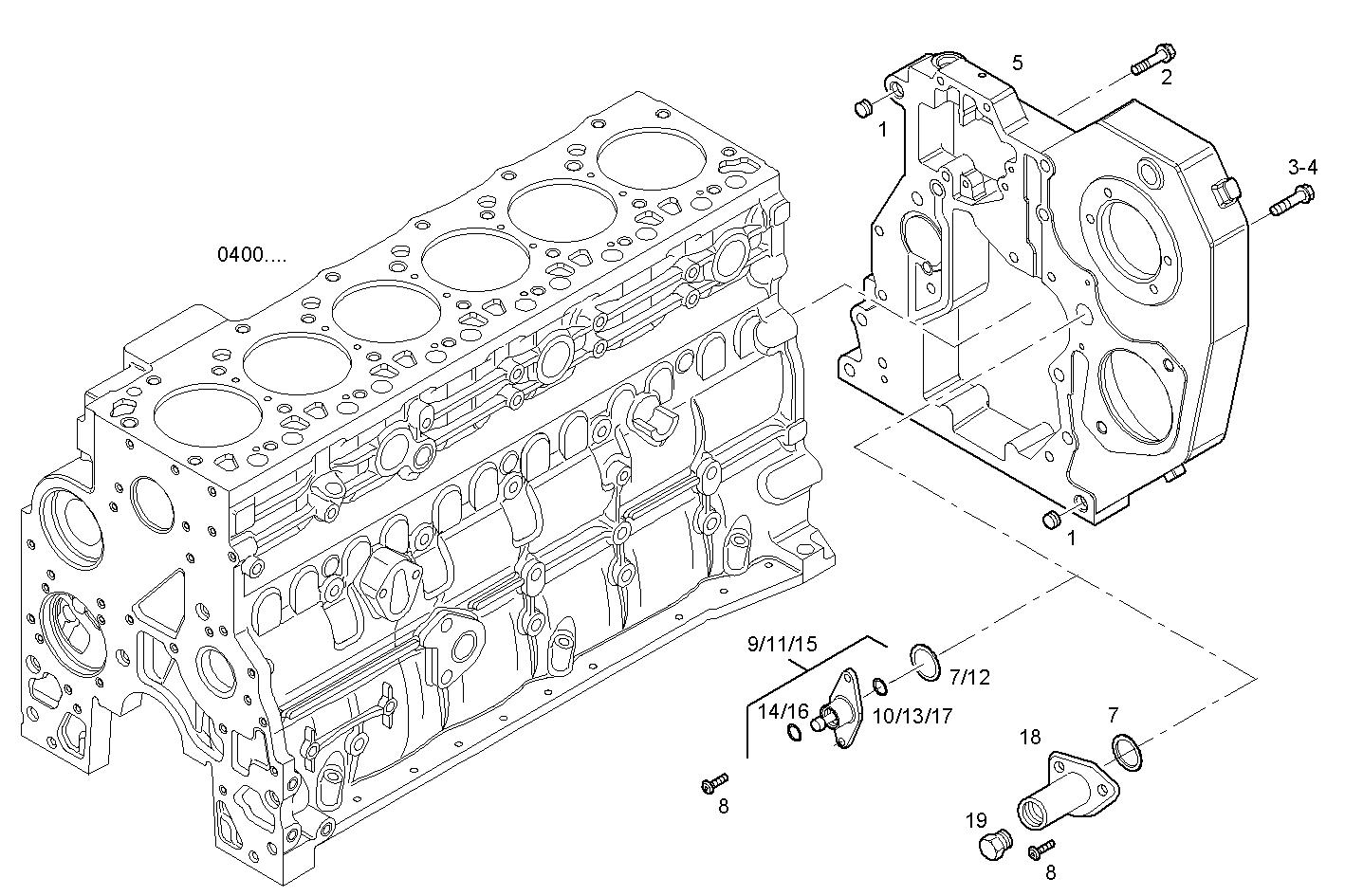

0430.221 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 4899026 DOWEL PIN
2 4899091 HEXAGON BOLT
3 4899093 HEXAGON BOLT
4 4899073 HEXAGON BOLT
5 504042180 TIMINGGEAR HOUSIN ASSY
7 4895357 SEAL GASKET [UP TO # 161404]
8 4895355 SHEAR SCREW M5X17 MM
9 4895356 CONNECTING PLATE ASSY [UP TO # 161404]
10 4895418 O-RING [UP TO # 161404]
11 504074001 LOCKING PLATE ASSY [FROM # 161405]
12 17278780 O-RING [FROM # 161405]
13 17278090 O-RING [FROM # 161405]
14 504079852 SPRING LOCKWASHER [FROM # 161405]
18 504170787 LOCKING PLATE [FROM # 295152]
19 16882515 PLUG [FROM # 295152]
