F4BE0684D*D401

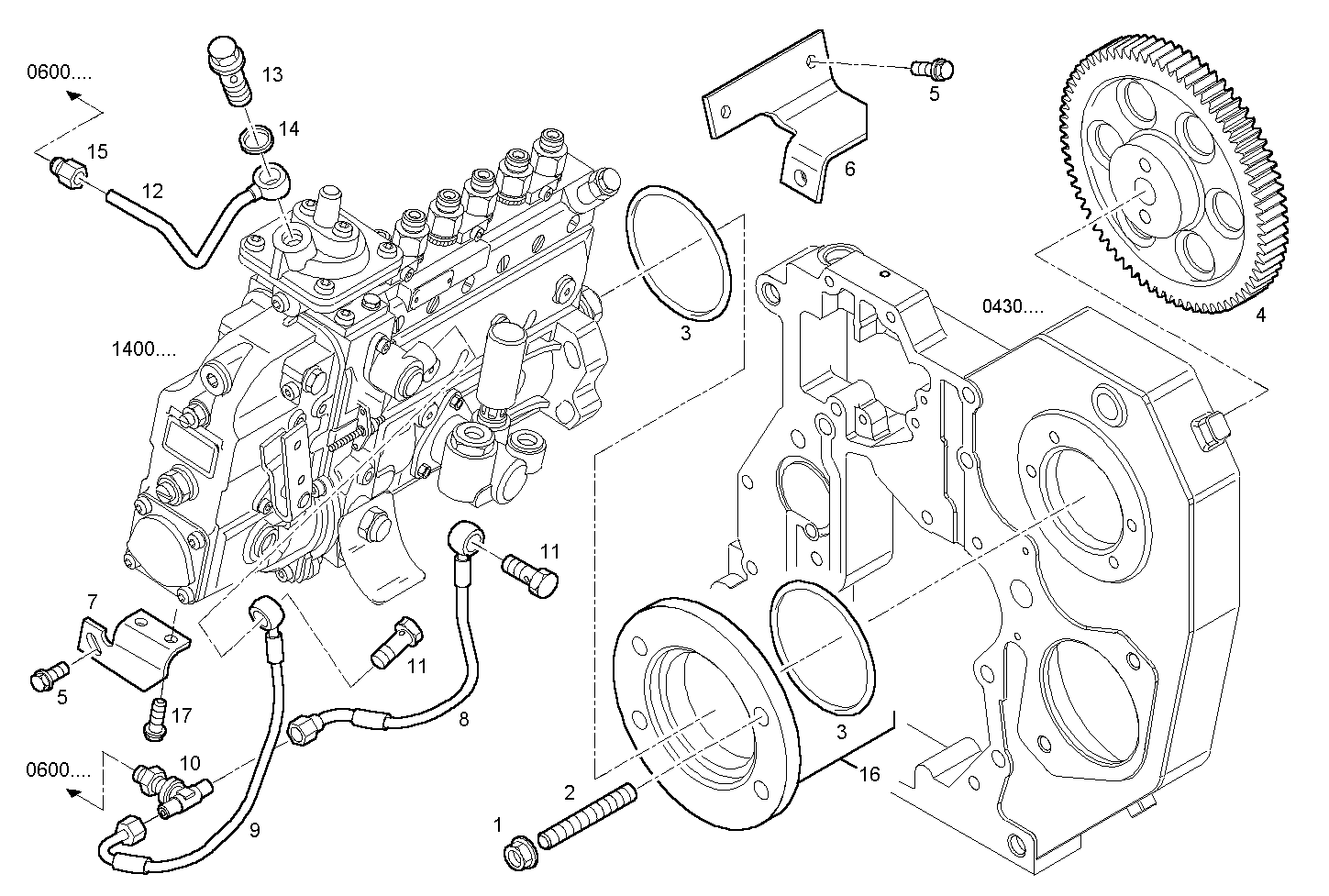

1410.121 INJECTION PUMP DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 4899004 | NUT |
| 2 | 4899117 | STUD |
| 3 | 4895484 | FLAT ENGINE GASKET |
| 4 | 504062783 | INJ.PUMP DRIV.GEA |
| 5 | 18138424 | HEXAGON BOLT M8X20 MM |
| 6 | 4894043 | SUPPORT |
| 7 | 4894045 | BRACKET |
| 8 | 504044629 | OIL LINE |
| 9 | 504044630 | OIL LINE |
| 10 | 504044622 | OIL LINE |
| 11 | 4864079 | SCREW CONNECTOR M10X1 |
| 12 | 504038491 | FUEL LINE |
| 13 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 14 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 15 | 4896770 | THREADED UNION M10X1 |
| 16 | 4896465 | SPACING BAR ASSY |
| 17 | 4895291 | HEXAGON BOLT M10X1,5X20 MM |
