F4BE0684D*D401

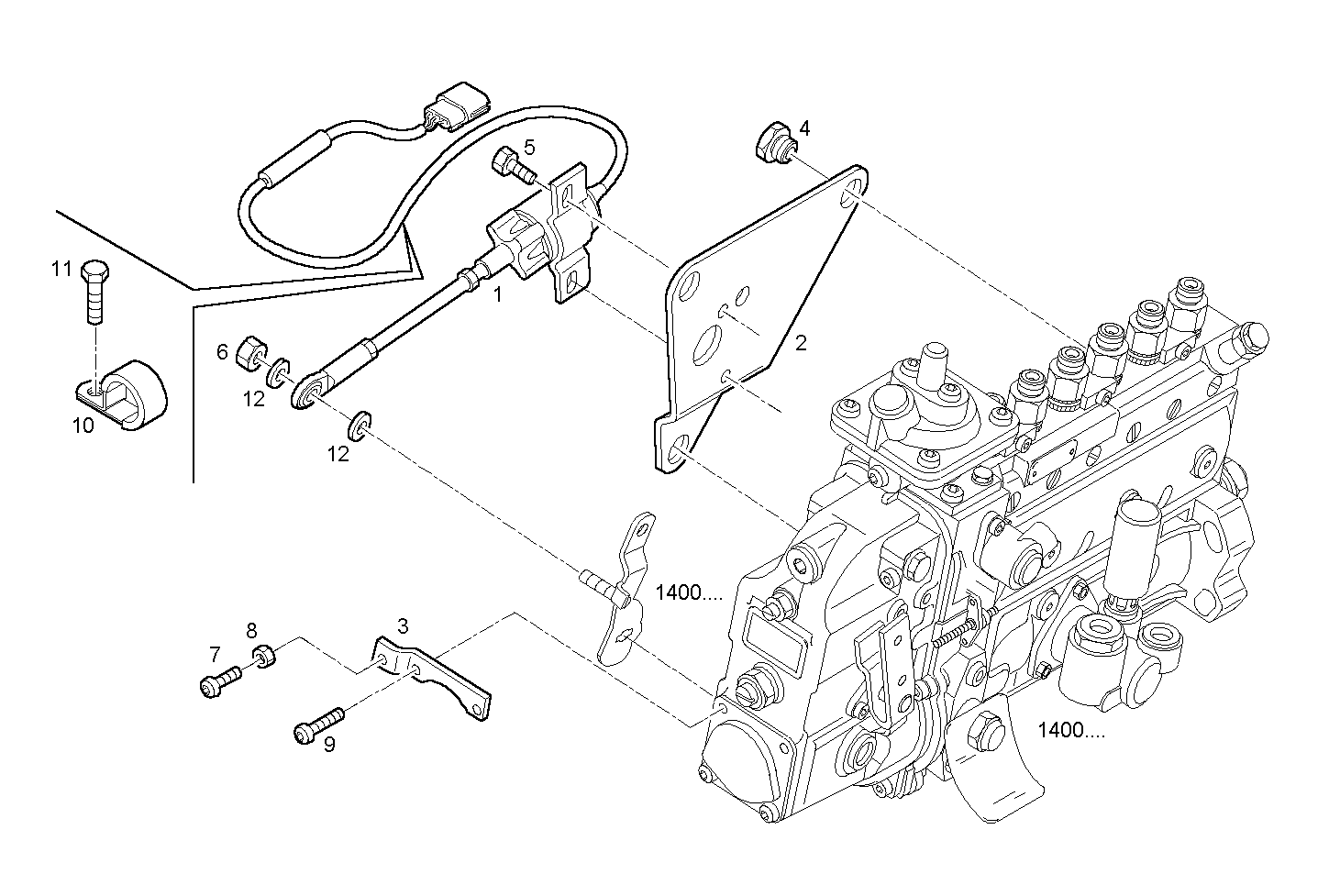

1460.050 ELECTRONIC SPEED GOVERNOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504017345 | SOLENOID |
| 2 | 504017331 | SUPPORT |
| 3 | 504017464 | FASTENING BRACKET |
| 4 | 504038809 | THREADED PLUG M16X1,5 |
| 5 | 16688924 | CYLIND-HEAD SCREW M6X10 MM |
| 6 | 17968721 | HEXAGON NUT M6X1 |
| 7 | 16603921 | HEXAGON BOLT M6X30 MM |
| 8 | 17037821 | HEXAGON NUT M6X1 |
| 9 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 10 | 17316990 | LOCK/YOKE |
| 11 | 4899068 | HEXAGON BOLT M8X17 MM |
| 12 | 17094740 | WASHER Ø6 MM |
