F4CE0304A*D600

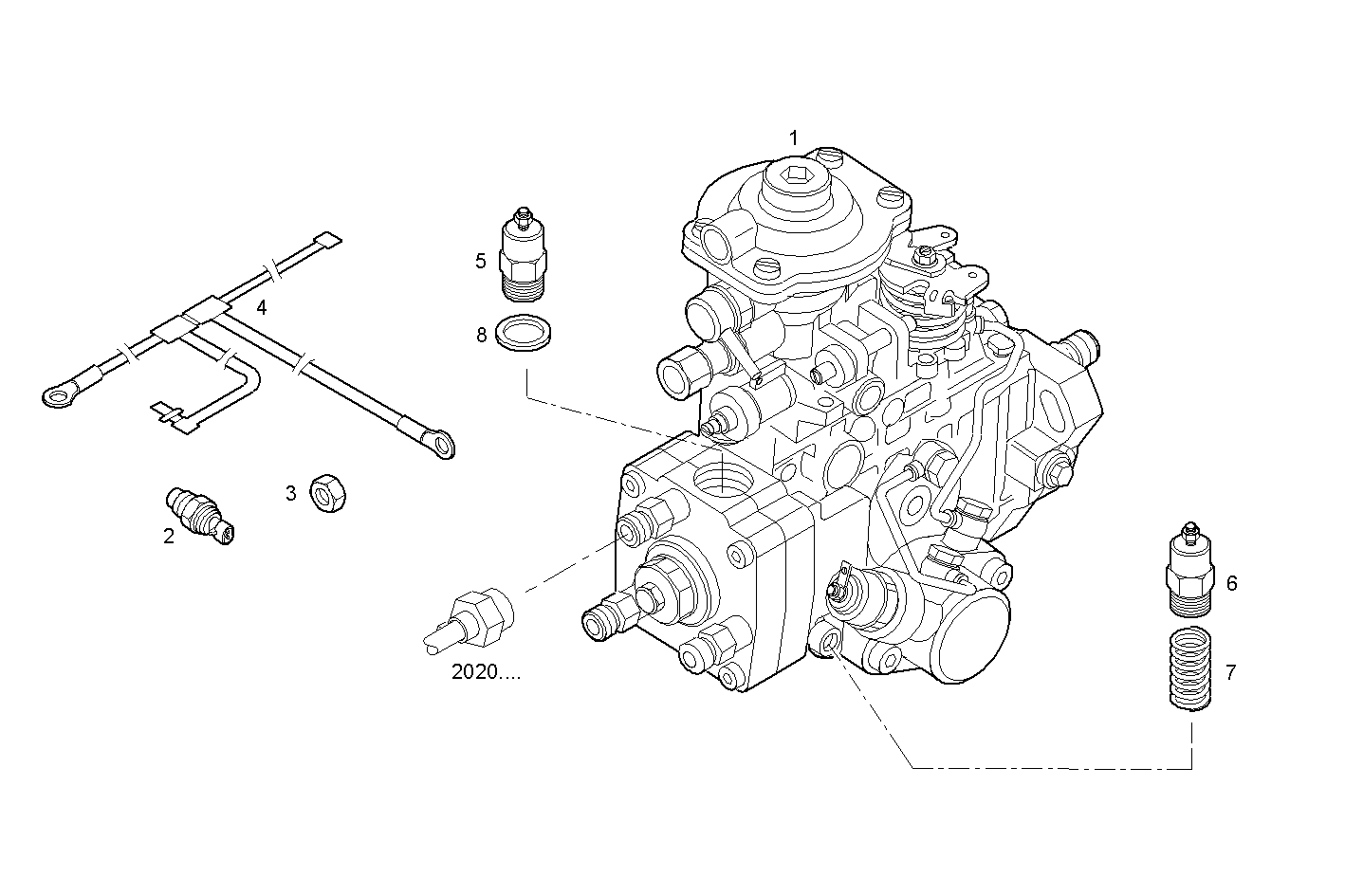

1400.371 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 504071338 | DISTRIB.INJ.PUMP |
| 2 | 504032877 | SENSOR water temperature for KSB |
| 3 | 16979231 | HEXAGON NUT M5 |
| 4 | 504060728 | WIRE/CABLE for electrovalve & ksb |
| 5 | 42533181 | ELECTROVALVE 12V |
| 6 | 93192974 | MAGNETO KSB |
| 7 | 93193371 | SPRING |
| 8 | 9008558 | RUBBER RING |
