F4CE0304A*D600

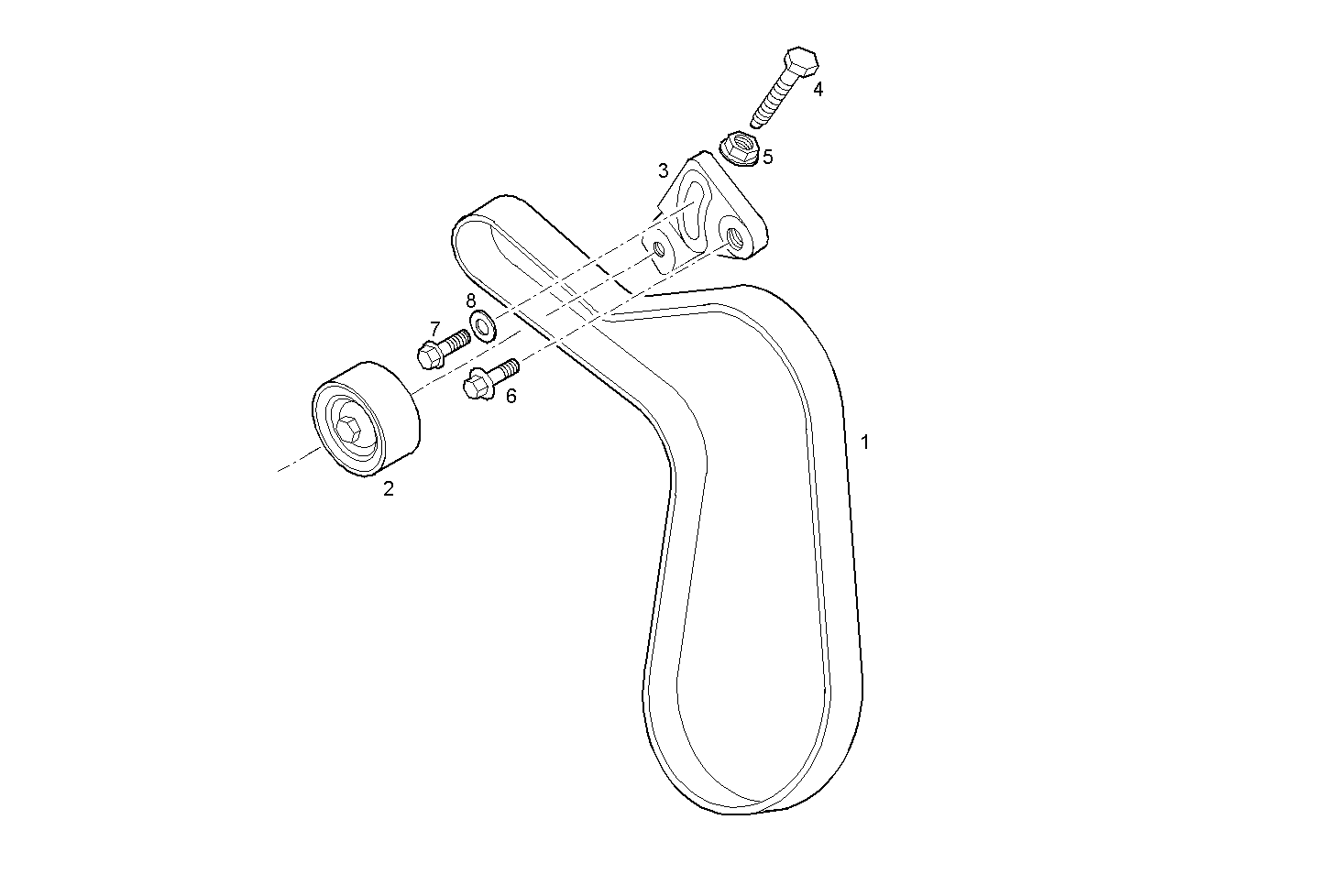

3400.016 WATER PUMP DRIVE

Iveco/FPT WATER PUMP DRIVE

Item Part number Description
1 504013617 WATER PUMP BELT
2 504066034 PULLEY
3 504013599 BELT TENSIONER
4 504020255 HEXAGON BOLT
5 17044821 NUT M10
6 16673835 HEXAGON BOLT M8X30 MM
7 16675835 HEXAGON BOLT M10X30 MM
8 17097124 WASHER 10x21
