F4CE0304B*D600

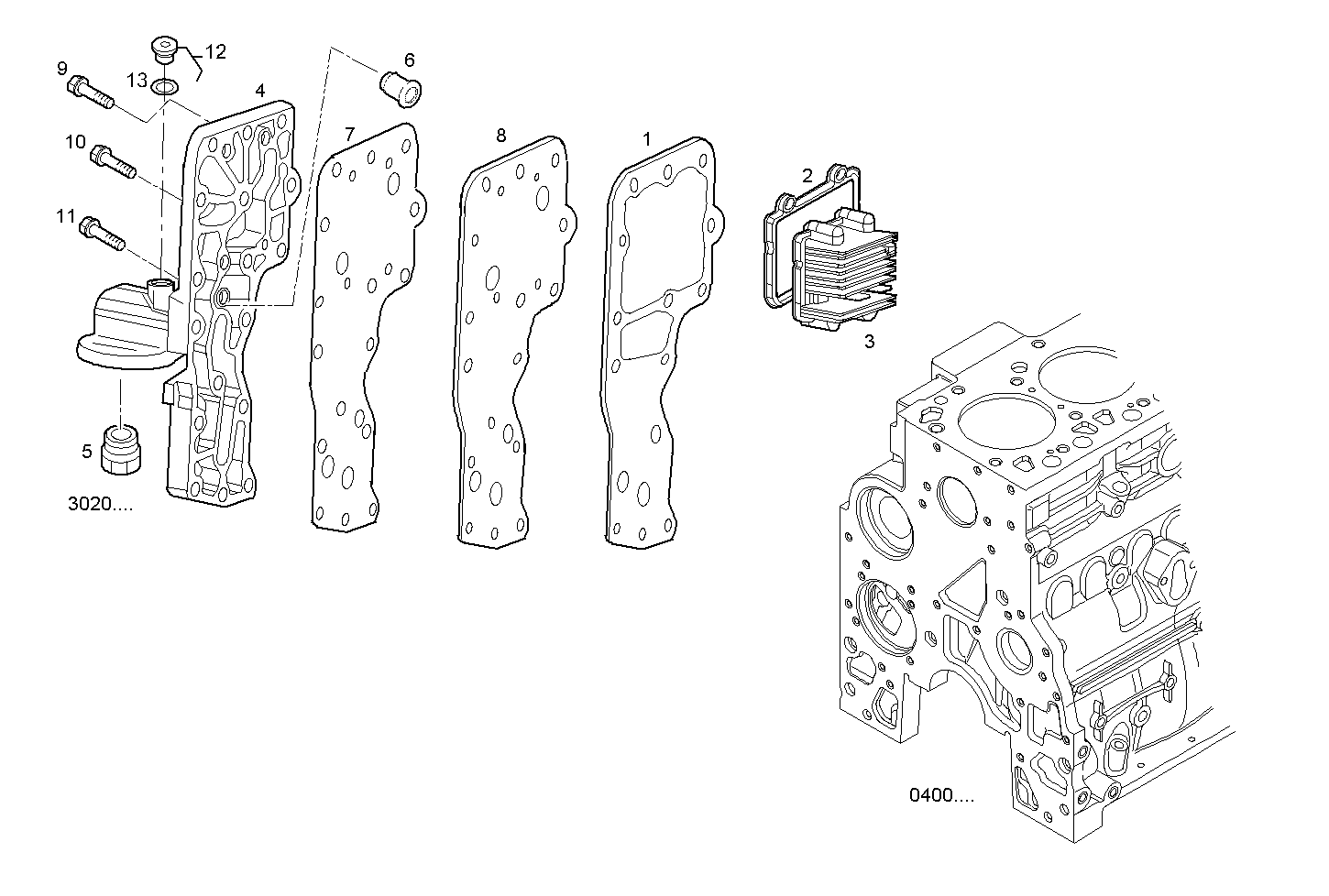

3100.122 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 504066295 FLAT ENGINE GASKET
2 504066292 FLAT ENGINE GASKET
3 504066293 OIL COOLER
4 504066288 OIL FILTER SUPPORT
5 4893391 THREADED UNION
6 4896410 VALVE
7 504066294 FLAT ENGINE GASKET
8 504066291 SPACING BAR
9 4899147 HEXAGON BOLT
10 4899019 HEXAGON BOLT M8X35 MM
11 4899063 HEXAGON BOLT M8X30 MM
12 4897330 PLUG ASSY M12X1,5
13 4895610 O-RING
