F4CE0354A*D600

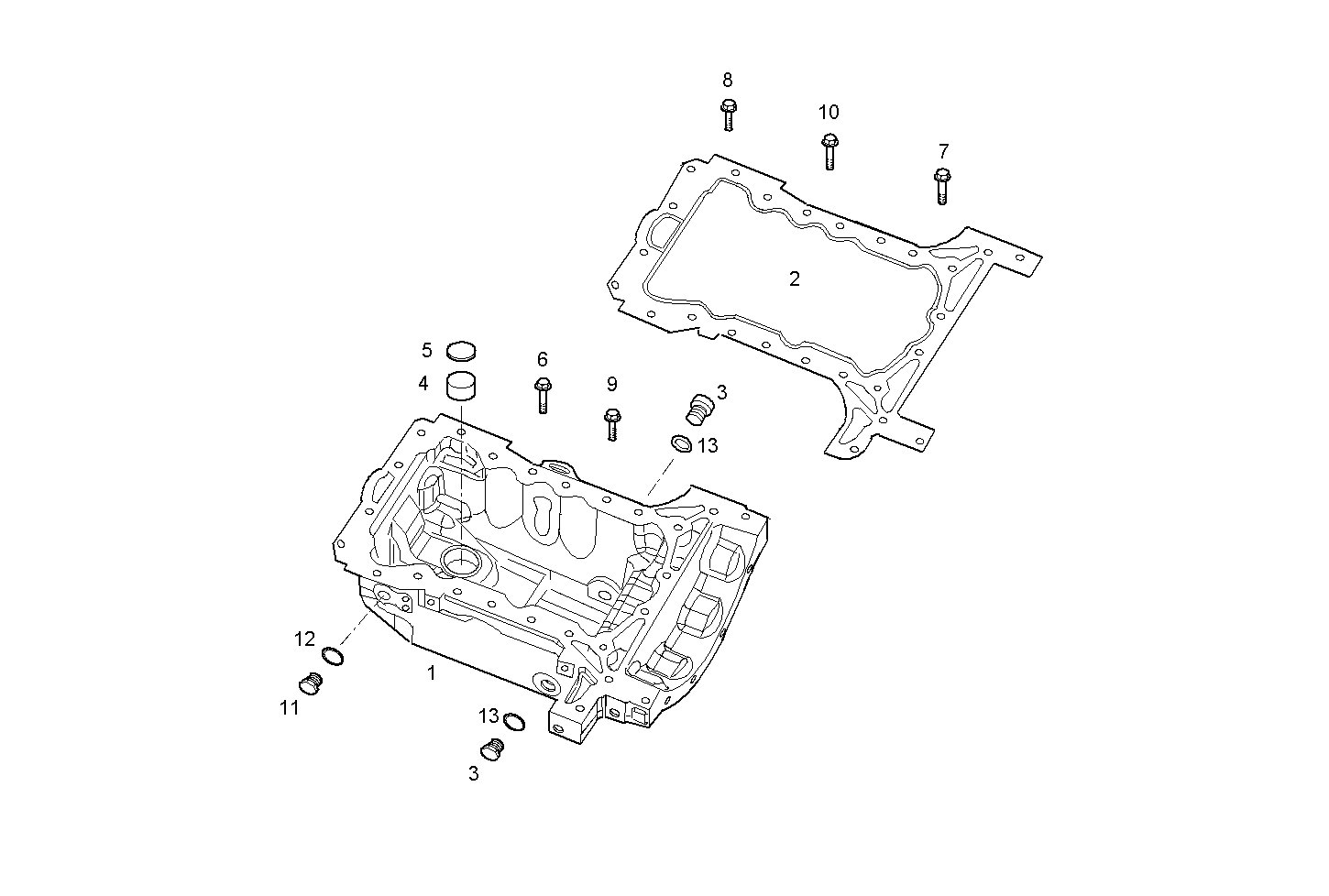

0420.185 OIL SUMP
Item | Part number | Description |
---|---|---|
1 | 504087229 | OIL SUMP |
2 | 504071925 | OIL SUMP GASKET |
3 | 4894139 | THREADED PLUG M22X1,5 |
4 | 4895935 | FILTER |
5 | 4895936 | PLUG |
6 | 2830730 | HEXAGON BOLT |
7 | 4892753 | HEXAGON BOLT M10X90 MM |
8 | 4892915 | HEXAGON BOLT M10X1,5X40 MM |
9 | 4895168 | CYLIND-HEAD SCREW M10X1,5X50 MM |
10 | 4897905 | HEXAGON BOLT M10X1,5X100 MM |
11 | 16992411 | THREADED PLUG M16X1,5 |
12 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
13 | 4895584 | O-RING |
