F4CE0354C*D600

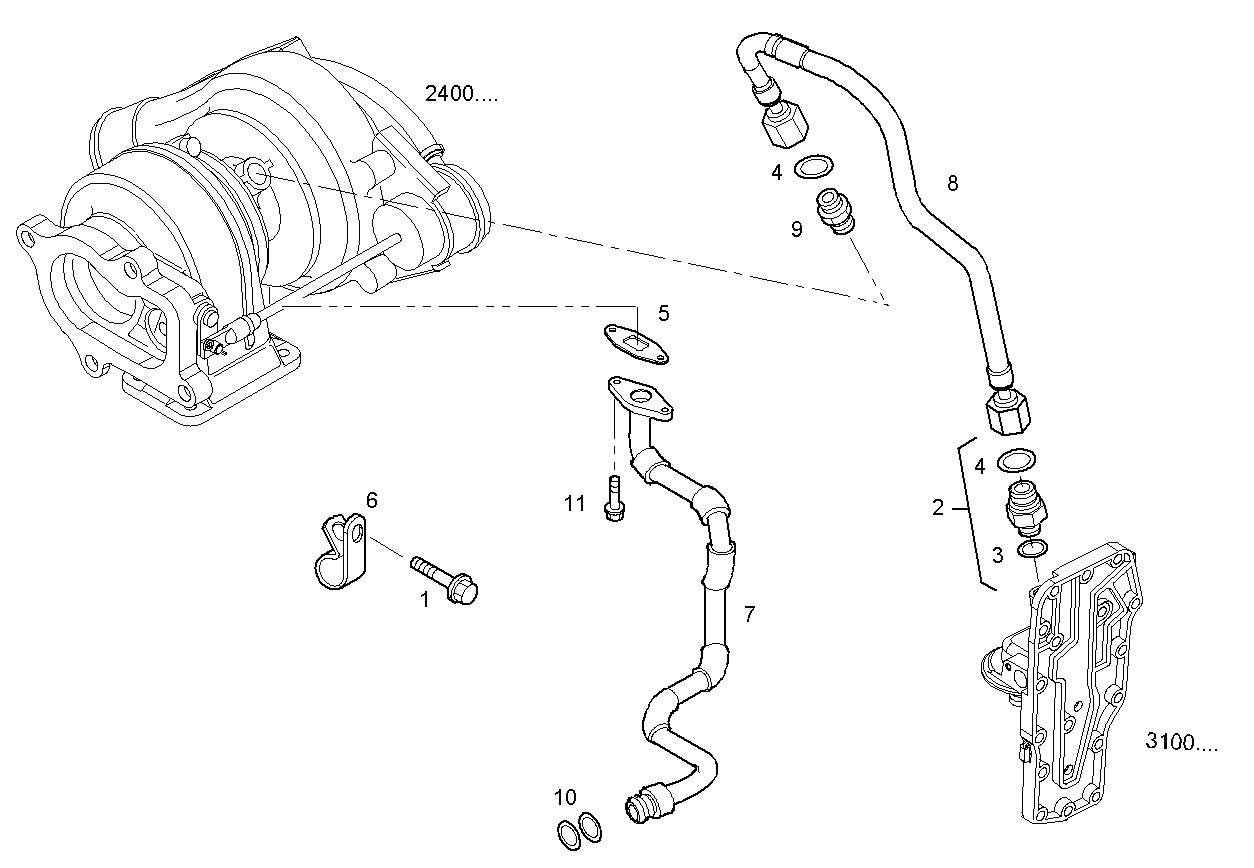

3010.206 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4895591 | HEXAGON BOLT |
| 2 | 4895107 | THREADED UNION ASSY |
| 3 | 4899107 | O-RING |
| 4 | 4899108 | O-RING |
| 5 | 4899467 | FLAT ENGINE GASKET |
| 6 | 4899519 | BRACKET |
| 7 | 504096080 | OIL LINE |
| 8 | 504053173 | OIL LINE INLET |
| 9 | 4899106 | PIPE SOCKET |
| 10 | 17281881 | O-RING DIA 17,12 SP 2,62 |
| 11 | 4899110 | HEXAGON BOLT |
