F4CE0354C*D600

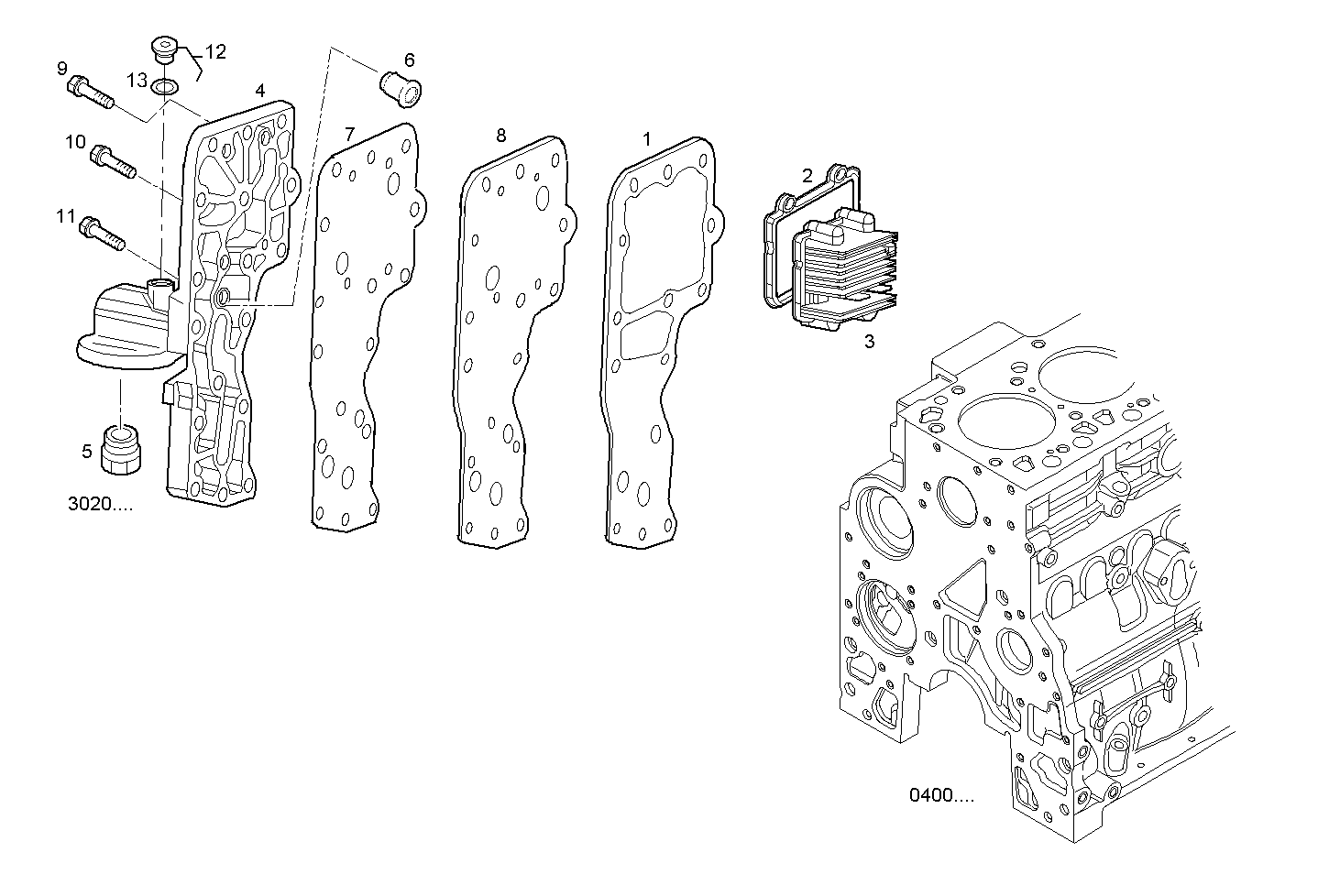

3100.118 OIL - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 504066295 | FLAT ENGINE GASKET |
| 2 | 504066292 | FLAT ENGINE GASKET |
| 3 | 504066293 | OIL COOLER |
| 4 | 504066288 | OIL FILTER SUPPORT |
| 5 | 4893391 | THREADED UNION |
| 6 | 4896410 | VALVE |
| 7 | 504066294 | FLAT ENGINE GASKET |
| 8 | 504066291 | SPACING BAR |
| 9 | 4899147 | HEXAGON BOLT |
| 10 | 4899019 | HEXAGON BOLT M8X35 MM |
| 11 | 4899063 | HEXAGON BOLT M8X30 MM |
