F4CE0454C*D601

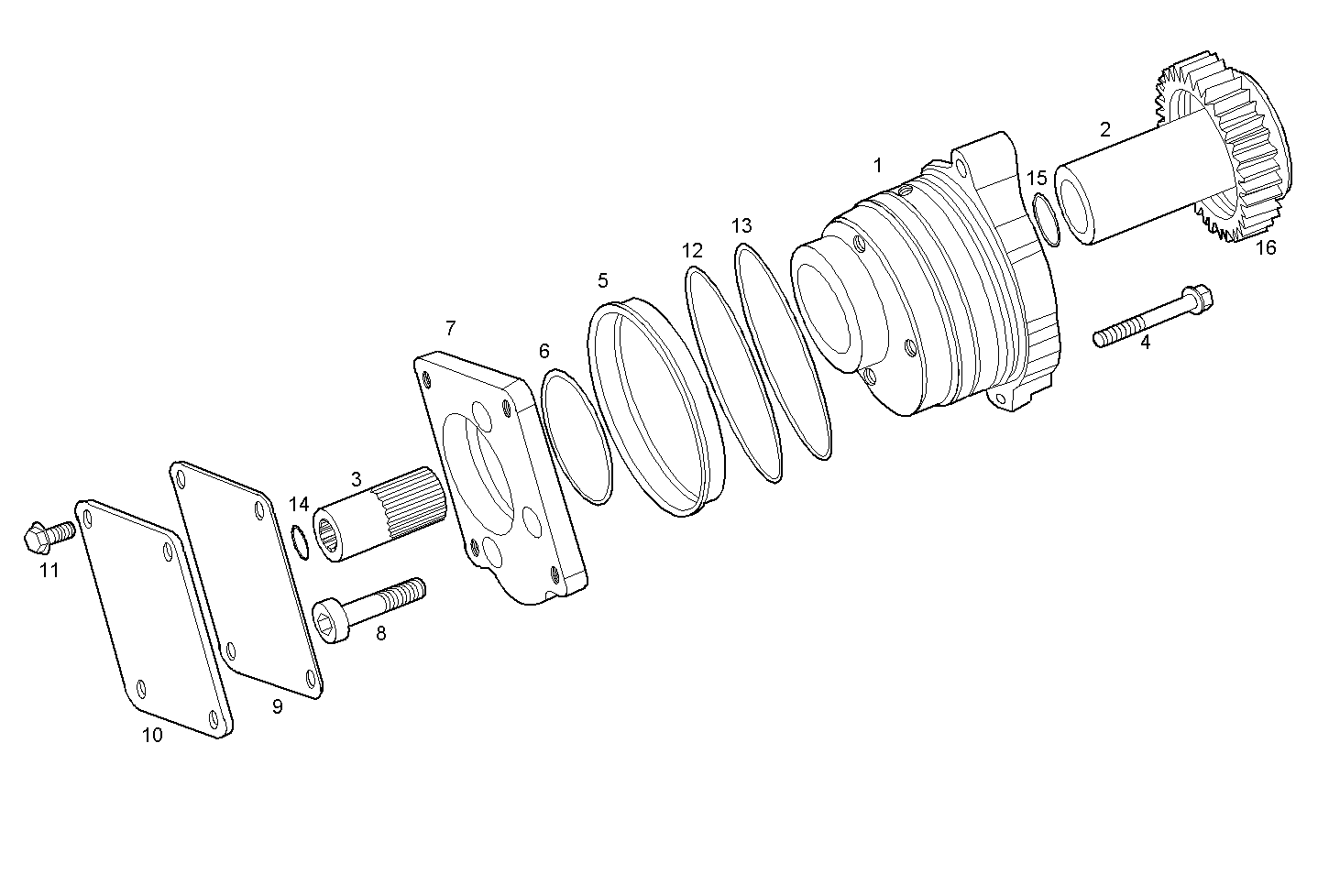

3500.048 POWER TAKE OFF
| Item | Part number | Description |
|---|---|---|
| 1 | 504086072 | POWER TAKE OFF |
| 2 | 504078702 | INJECT.PUMP SPIND |
| 3 | 504078857 | POWER TAKE OFF SHAFT |
| 4 | 4897348 | HEXAGON BOLT |
| 5 | 504071682 | SPACER RING |
| 6 | 17284881 | O-RING |
| 7 | 504071687 | SPACING BAR |
| 8 | 16692624 | CYLIND-HEAD SCREW M10X50 MM |
| 9 | 504071684 | FLAT ENGINE GASKET |
| 10 | 504071685 | PTO COVER |
| 11 | 4896884 | HEXAGON BOLT |
| 12 | 17291381 | O-RING Ø98,02 MM SP=3,53 MM |
| 13 | 17291481 | O-RING Ø101,19 MM SP=3,53 |
| 14 | 17084476 | CIRCLIP Ø14 MM |
| 15 | 17084976 | CIRCLIP Ø24 MM |
| 16 | 504078464 | PTO GEAR |
