F4CE0454C*D602

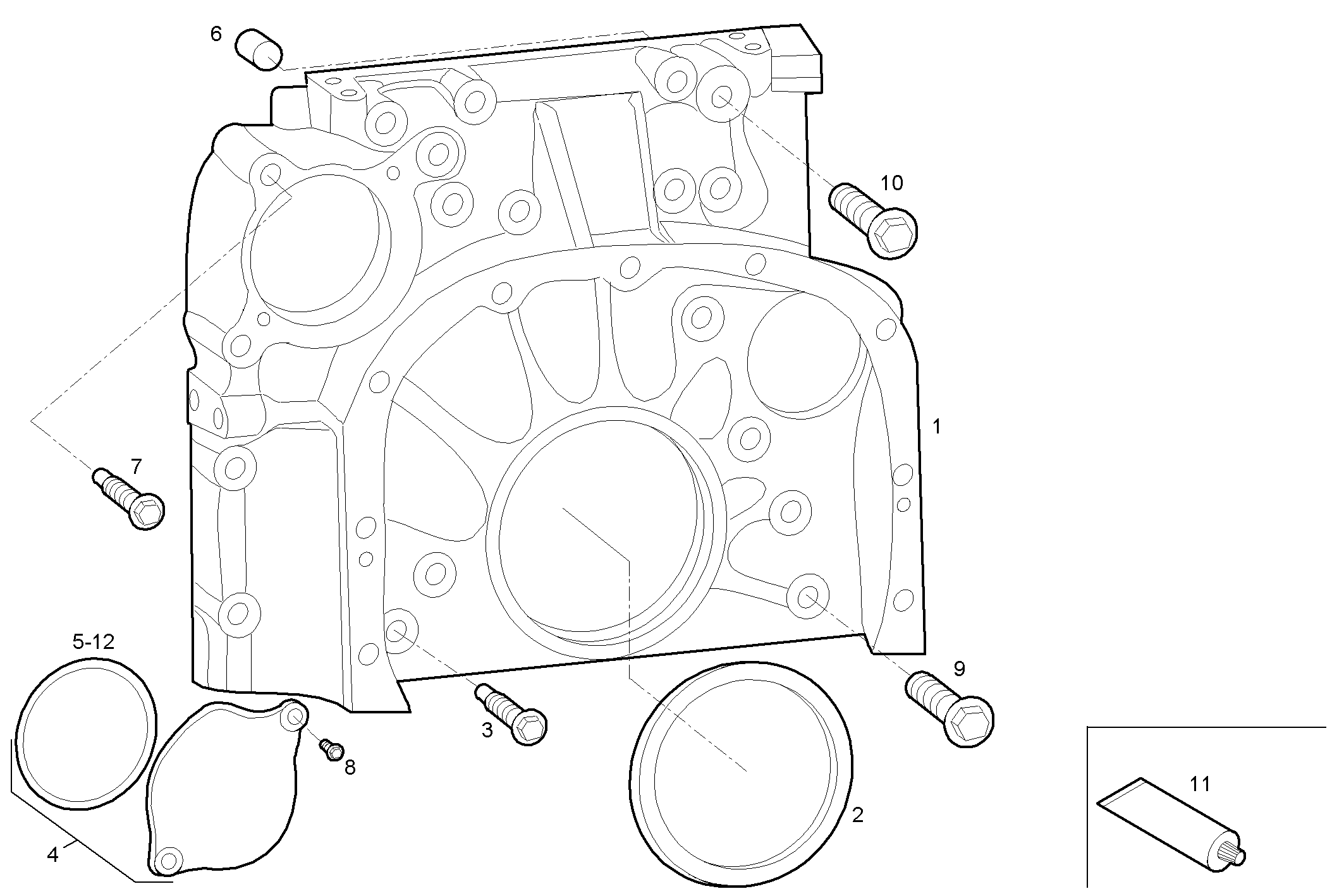

0432.004 REAR C.CASE COVER
| Item | Part number | Description |
|---|---|---|
| 1 | 2830422 | TIMINGGEAR HOUSIN |
| 2 | 4890833 | SHAFT SEAL |
| 3 | 4891250 | HEXAGON BOLT M12X1,75 |
| 4 | 4894490 | COVER ASSY |
| 5 | 4899017 | O-RING [UP TO # 170902] |
| 6 | 4894532 | DOWEL PIN |
| 7 | 4899145 | HEXAGON BOLT |
| 8 | 4899146 | HEXAGON BOLT |
| 9 | 4899385 | HEXAGON BOLT M16X1,5 |
| 10 | 4899759 | HEXAGON BOLT |
| 11 | 2992504 | ADHESIVE/STICKER LOCTITE |
| 12 | 504108486 | O-RING [FROM # 170903] |
