F4CE0454C*D602

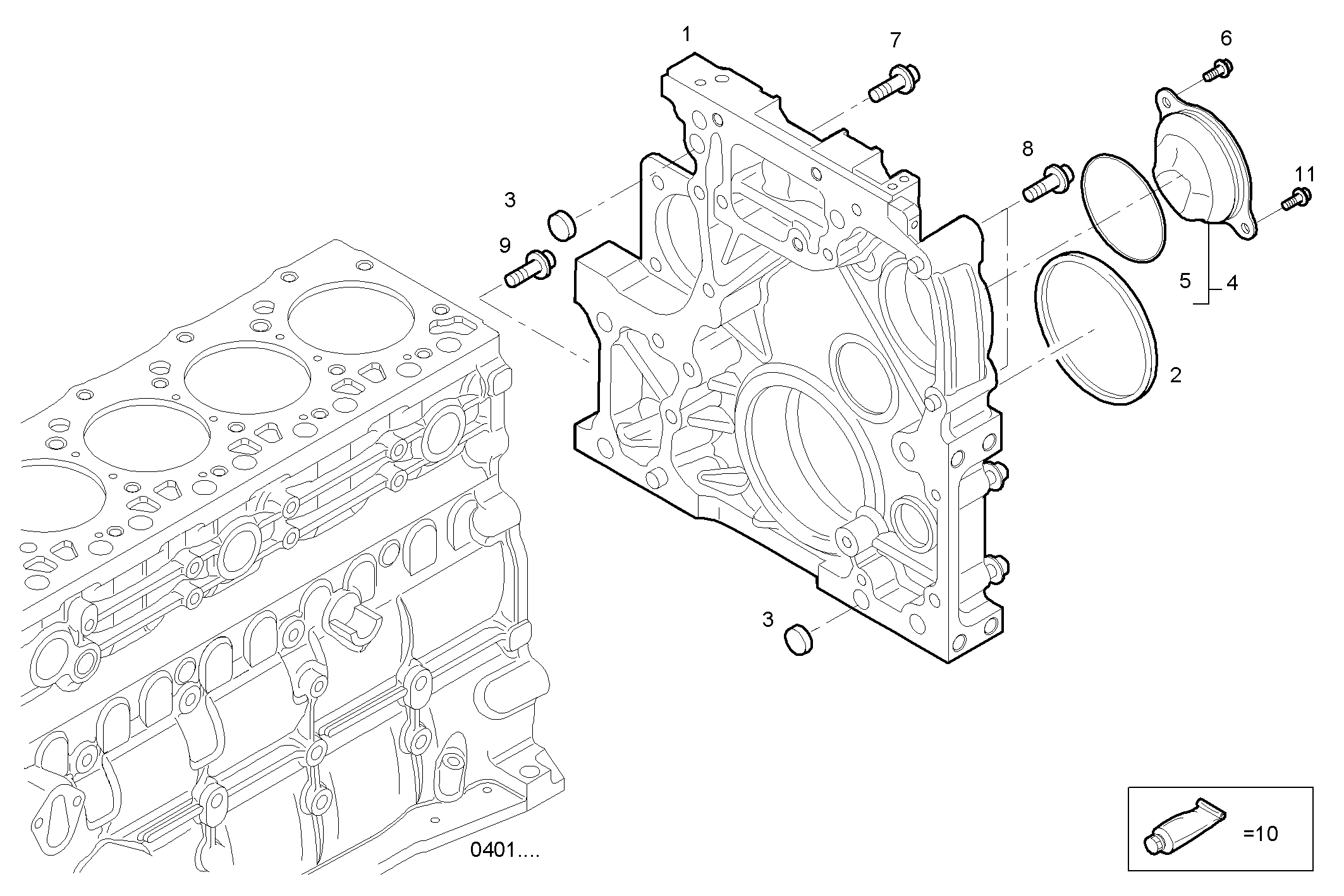

0432.039 REAR C.CASE COVER [FROM # 272517] [FROM # 272517]

Iveco/FPT REAR C.CASE COVER

Item Part number Description
1 504170029 TIMINGGEAR HOUSIN
2 4890833 SHAFT SEAL
3 4894532 DOWEL PIN
4 504110651 HOUSING COVER ASSY
5 504108486 O-RING [FROM # 170903]
6 16673635 HEXAGON BOLT M8X1.25X20
7 4899385 HEXAGON BOLT M16X1,5
8 4891250 HEXAGON BOLT M12X1,75
9 4899145 HEXAGON BOLT
10 2992504 ADHESIVE/STICKER LOCTITE
11 4899759 HEXAGON BOLT
