F4CE0454C*D607

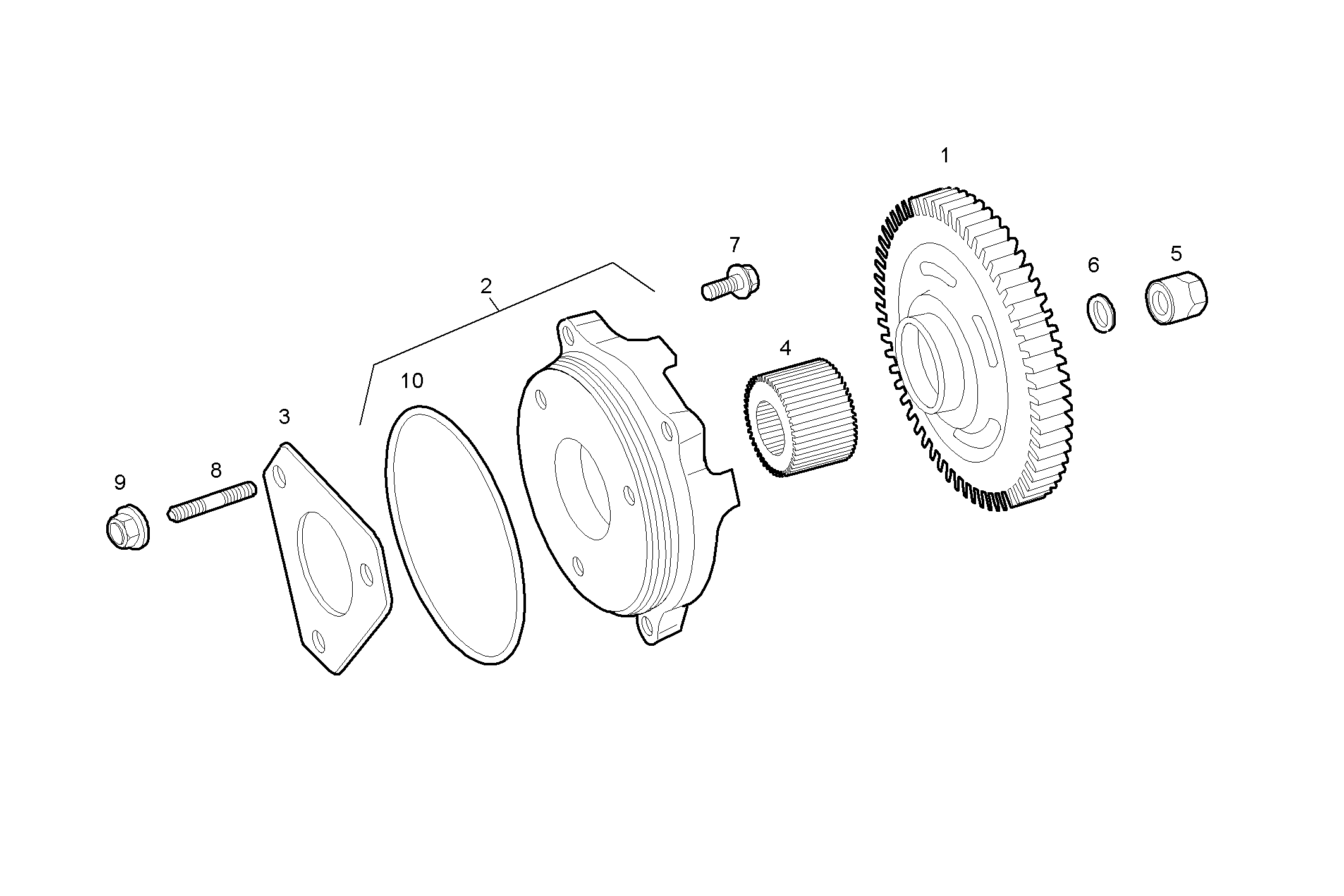

1422.005 INJECTION PUMP DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 504151881 | INJ.PUMP DRIV.GEA |
| 2 | 4894729 | SPACING BAR ASSY |
| 3 | 504083433 | FLAT ENGINE GASKET |
| 4 | 4893227 | HUB |
| 5 | 4893229 | HEXAGON NUT M14X1,5 |
| 6 | 4894736 | SPRING WASHER |
| 7 | 4899063 | HEXAGON BOLT M8X30 MM |
| 8 | 16729534 | STUD M8X30 MM |
| 9 | 17044735 | NUT M8 |
| 10 | 17292081 | O-RING Ø120,24 MM SP=3,53 |
