F4CE9484M*J605

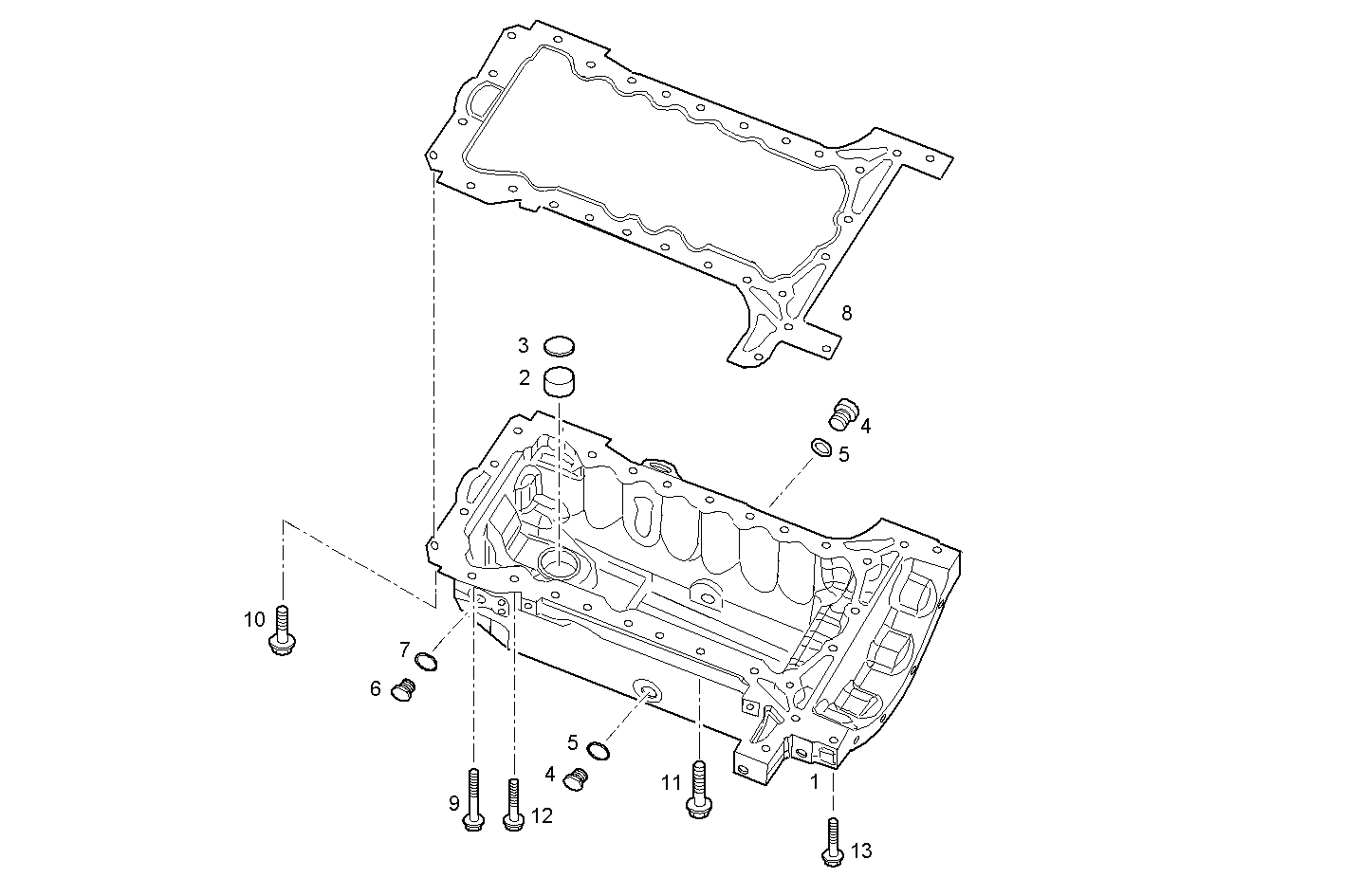

0420.230 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504101064 | OIL SUMP |
| 2 | 4895935 | FILTER |
| 3 | 4895936 | PLUG |
| 4 | 4894139 | THREADED PLUG M22X1,5 |
| 5 | 17282280 | O-RING Ø2,62X23,47 MM |
| 6 | 16992415 | THREADED PLUG M16X1,5 |
| 7 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 8 | 2830645 | OIL SUMP GASKET |
| 9 | 4892744 | HEXAGON BOLT |
| 10 | 4892915 | HEXAGON BOLT M10X1,5X40 MM |
| 11 | 4895168 | CYLIND-HEAD SCREW M10X1,5X50 MM |
| 12 | 4897905 | HEXAGON BOLT M10X1,5X100 MM |
| 13 | 2830730 | HEXAGON BOLT |
