F4CE9684L*J601

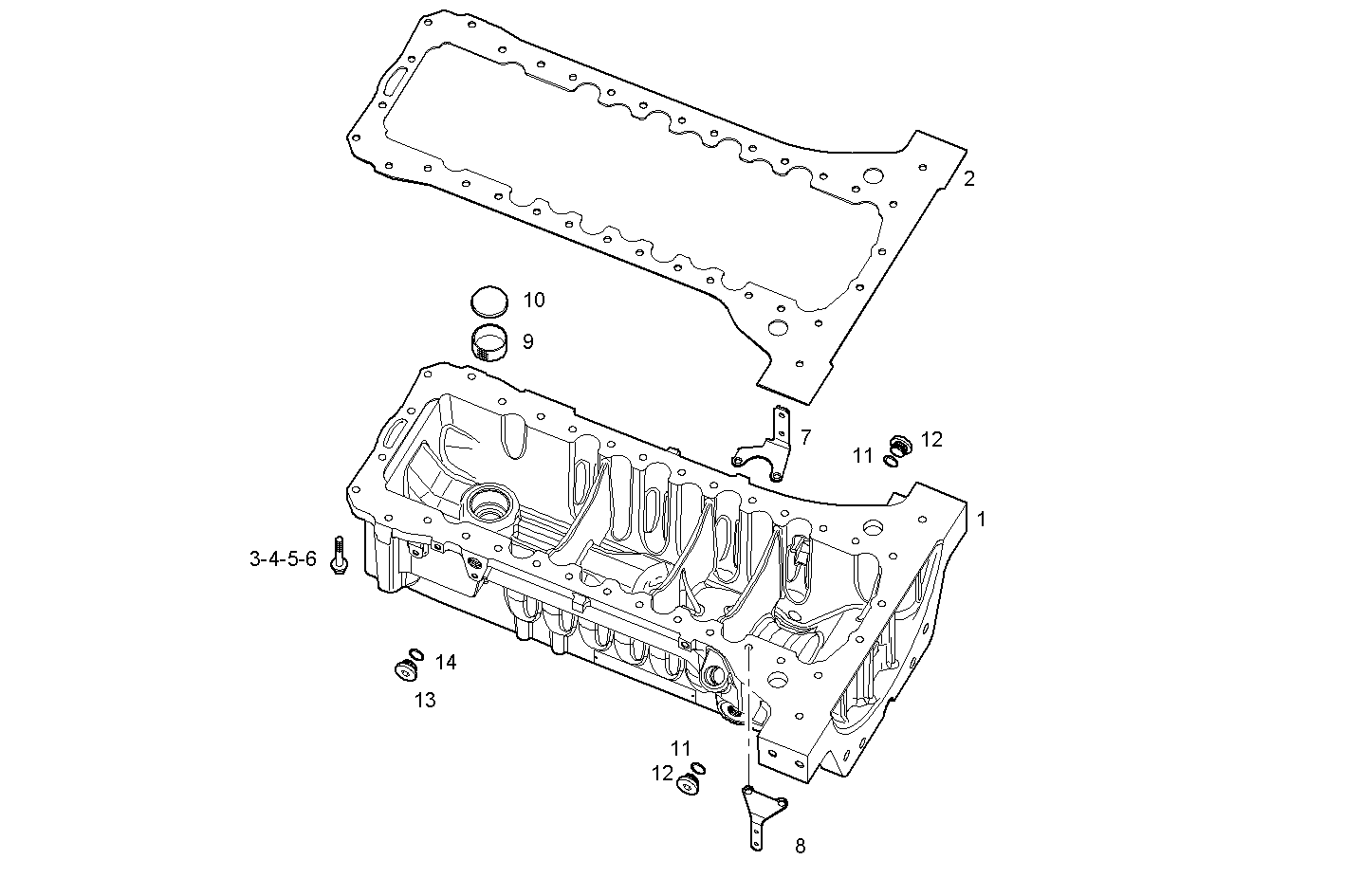

0420.002 OIL SUMP
Item | Part number | Description |
---|---|---|
1 | 504233430 | OIL SUMP ASSY |
2 | 4894301 | OIL SUMP GASKET |
3 | 4895339 | HEXAGON BOLT |
4 | 4892753 | HEXAGON BOLT M10X90 MM |
5 | 4895743 | HEXAGON BOLT |
6 | 4892742 | HEXAGON BOLT M10X190 MM |
7 | 504062608 | RETAINER |
8 | 504077838 | RETAINER |
9 | 4895935 | FILTER |
10 | 4895936 | PLUG |
11 | 17282280 | O-RING Ø2,62X23,47 MM |
12 | 4894139 | THREADED PLUG M22X1,5 |
13 | 16993311 | THREADED PLUG M18X1,5 |
14 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
