F4CE9684L*J601

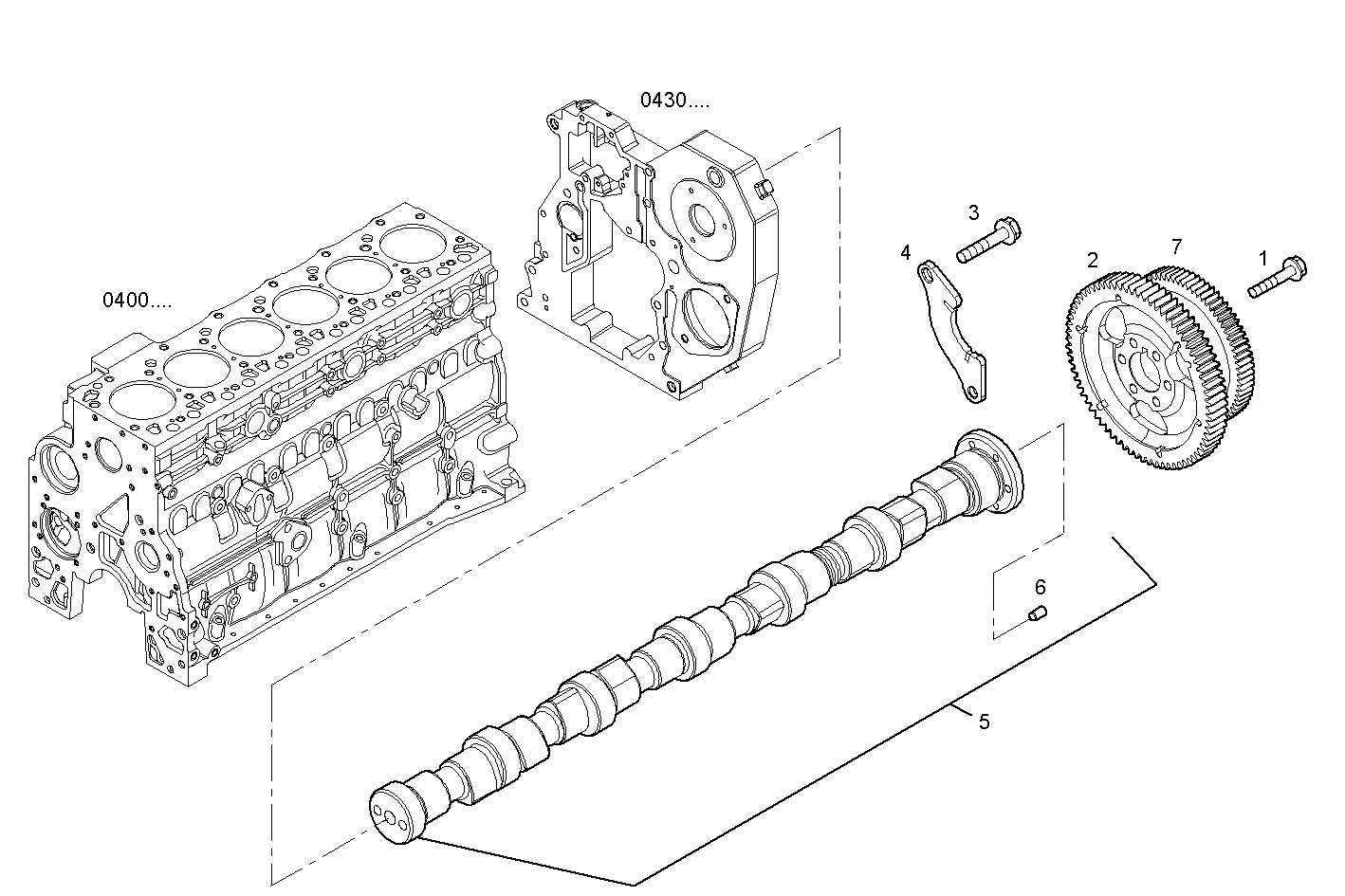

1250.025 TIMING PARTS
Item | Part number | Description |
---|---|---|
1 | 4897153 | HEXAGON BOLT |
2 | 4894775 | CAMSHAFT PINION |
3 | 4899068 | HEXAGON BOLT M8X17 MM |
4 | 4897457 | YOKE |
5 | 504094080 | CAMSHAFT ASSY |
6 | 4899080 | DOWEL PIN |
7 | 4894776 | GEAR |
