F4CE9684L*J601

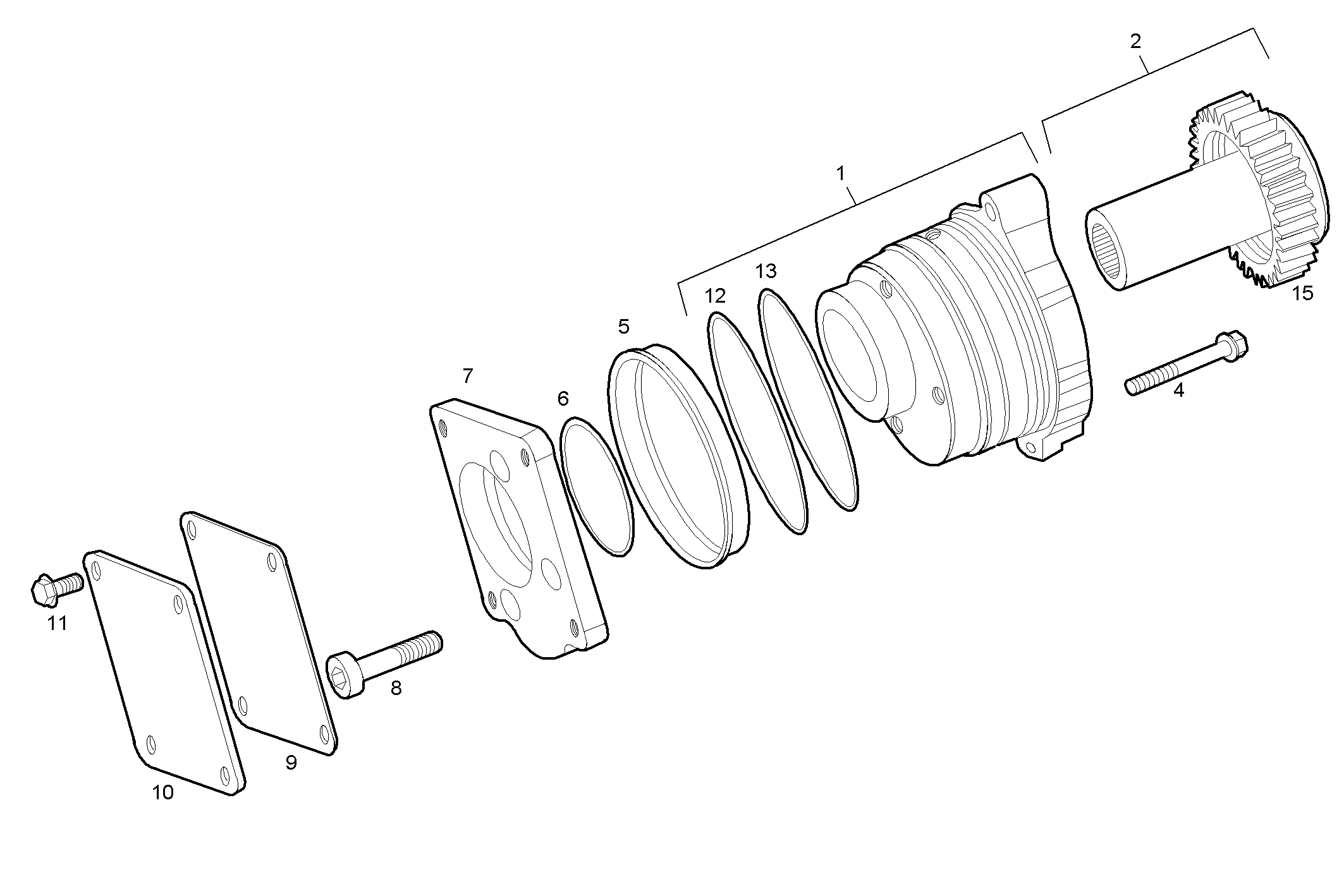

3500.001 POWER TAKE OFF

Iveco/FPT POWER TAKE OFF

Item Part number Description
1 504087884 POWER TAKE OFF ASSY
2 504231876 PTO SHAFT ASSY
4 4897348 HEXAGON BOLT
5 504071682 SPACER RING
6 17284881 O-RING
7 504232420 SPACING BAR
8 16692624 CYLIND-HEAD SCREW M10X50 MM
9 504233258 FLAT ENGINE GASKET
10 504233256 PTO COVER
11 4896884 HEXAGON BOLT
12 17291381 O-RING Ø98,02 MM SP=3,53 MM
13 17291481 O-RING Ø101,19 MM SP=3,53
15 504078464 PTO GEAR
